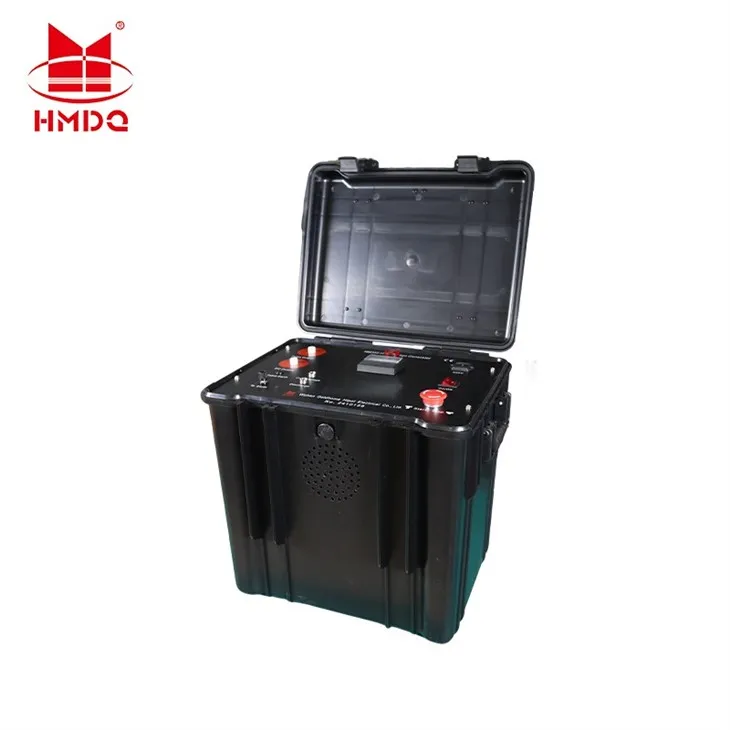

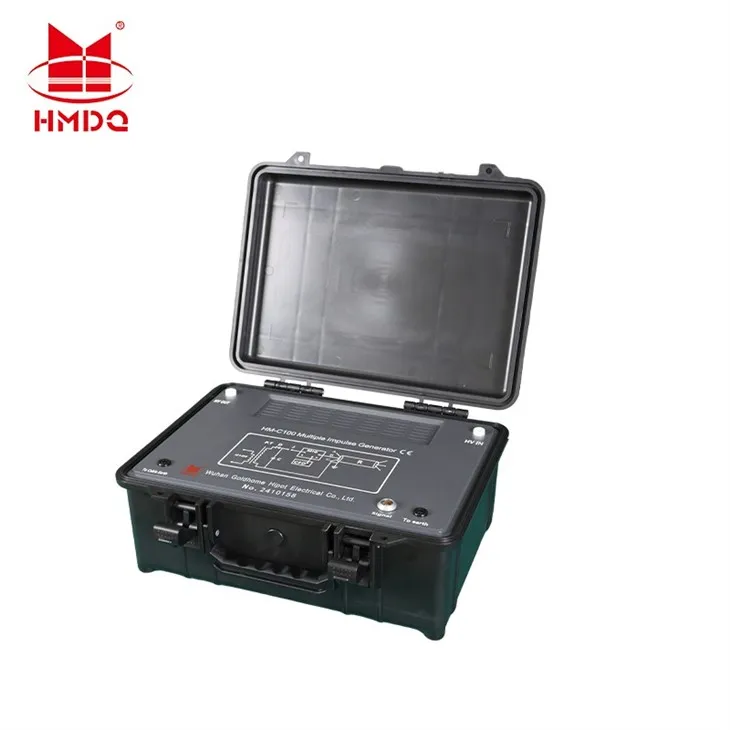

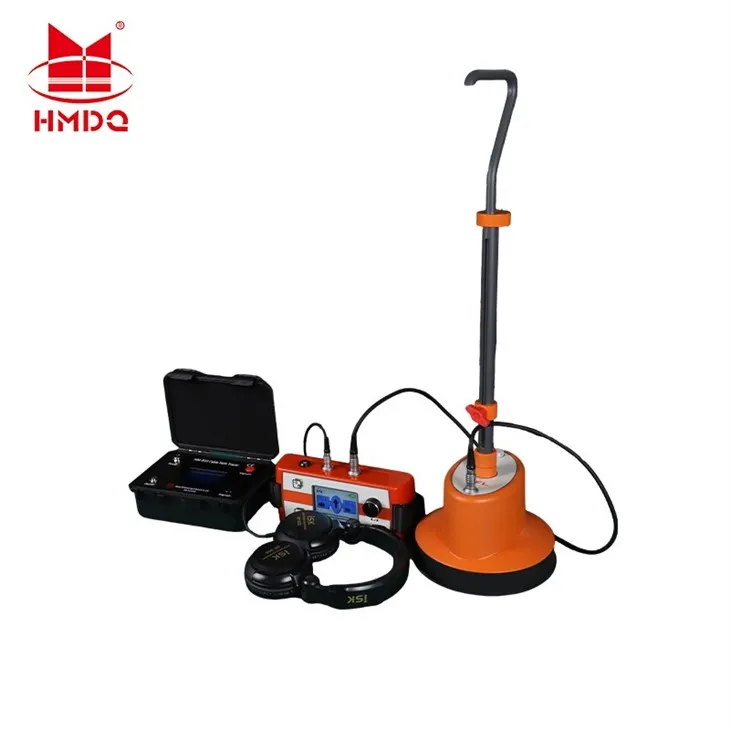

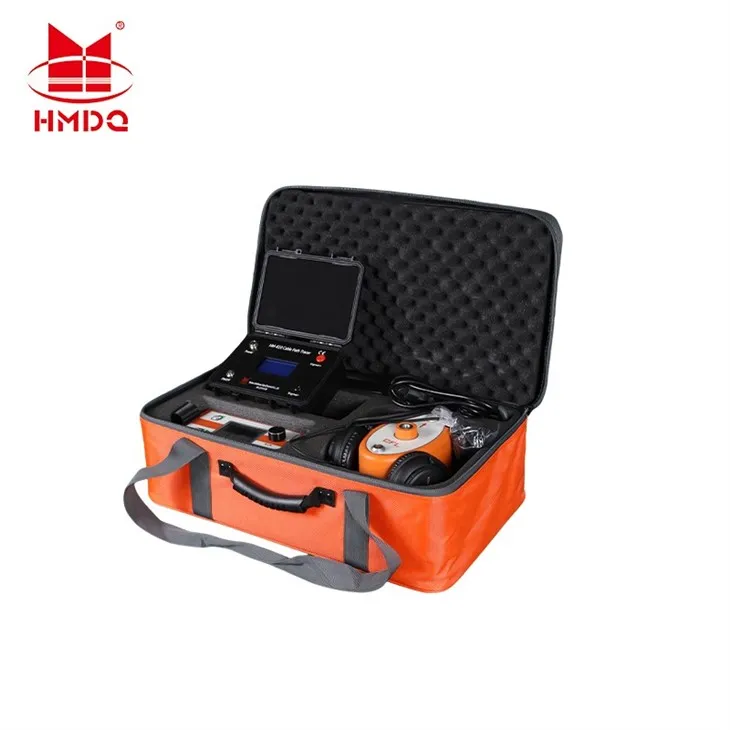

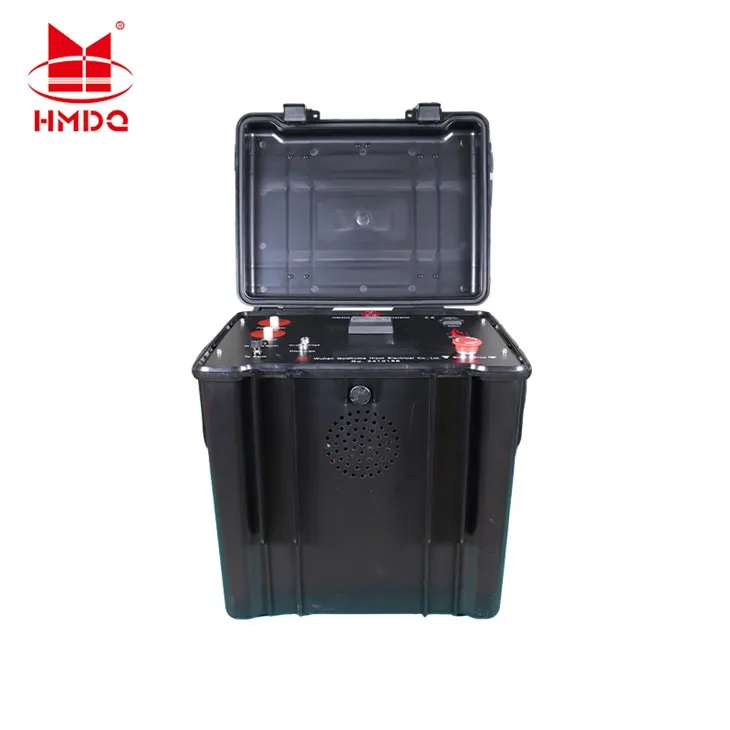

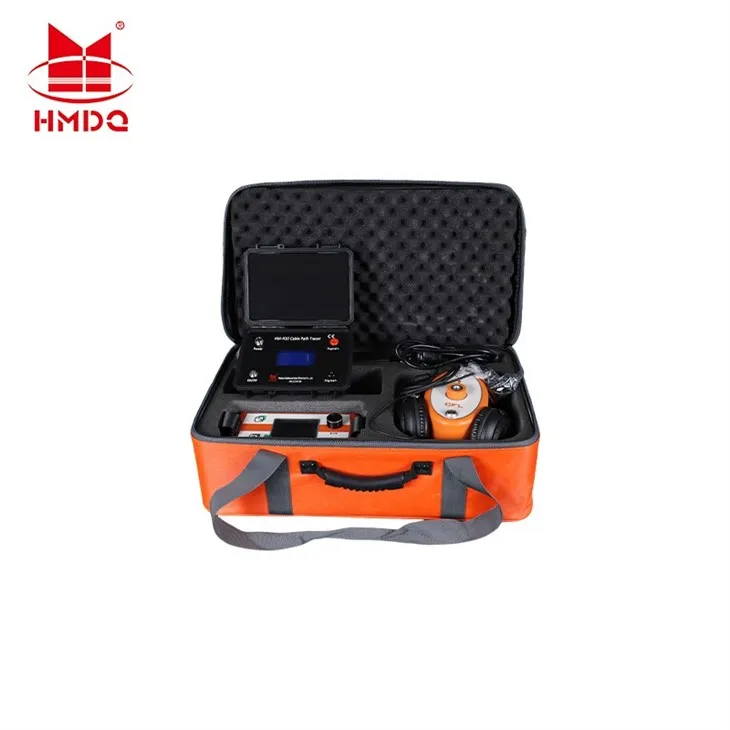

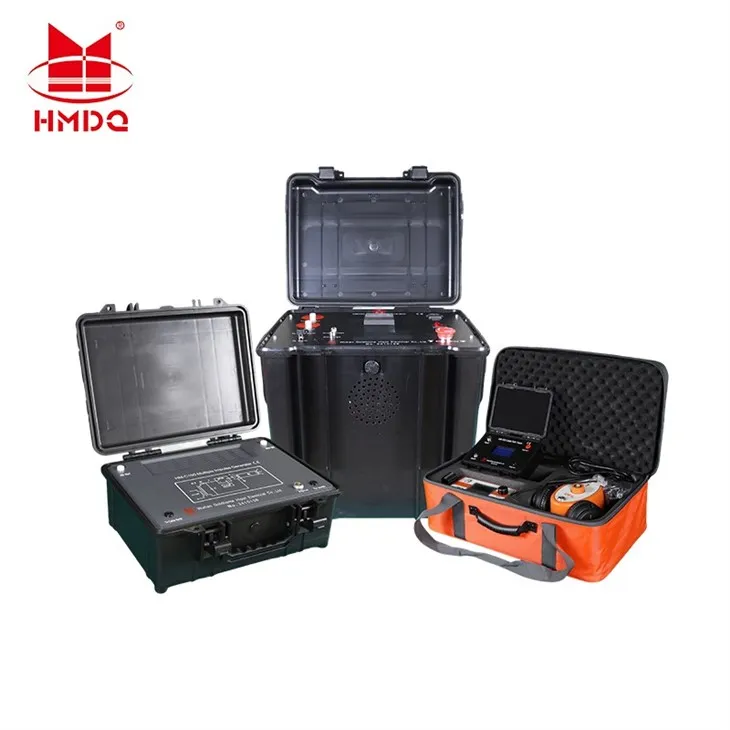

Full-Intelligent Cable Fault Locator System

The HM-A300 Full-Intelligent Cable Fault Locator system (HM-A300) is a highly intelligent power cable fault locating instrument that has been successfully developed using advanced time-domain reflection technology and modern microelectronics technology. With simple operation, fast testing speed, high precision, strong anti-interference ability and other advantages, it is a powerful tool for the line maintenance staff to reduce labor intensity and improve work efficiency.

 Output Mode: Pulse Output, DC Output

 Output Voltage: Negative Voltage, 0 to -35kV Continuously Adjustable

Operating Current: ≤40mA

Operating Mode: Single Pulse, Continuous Pulse, DC Output

Built-in Capacitor: 2uF/35kV

Discharge Energy: ≤1225J

Pulse Period: 3s to 8s, self-adaptive

Auto Discharge: Automatic discharge upon shutdown

Power Supply: Mains 220V ±10%

Operating Temperature: -10°C to 40°C

Operating Humidity: ≤80%

Altitude: ≤1000 meters

Dimensions: 478(L) × 370(W) × 448(H) mm

Weight: ≤28kg
