HM9209 Partial Discharge Test Device Display Video
Products Description

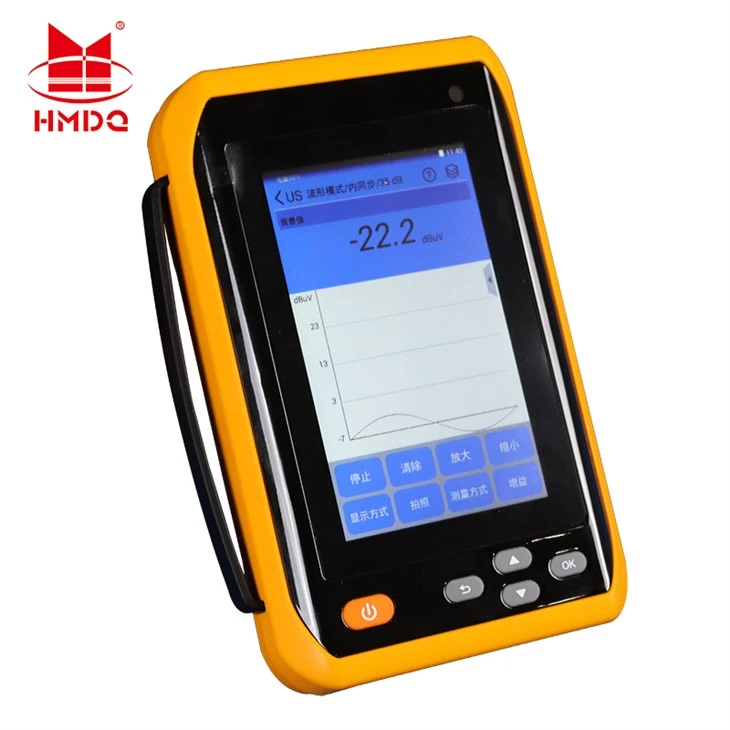

The HM9209A Partial Discharge Inspection Instrument features a completely redesigned appearance and utilizes the widely adopted Android operating system for enhanced user-friendliness. It integrates a 5-megapixel camera for convenient inspection documentation. RFID functionality facilitates IoT application expansion. An internal discharge type library enables efficient comparison and verification of discharge conditions.
Paramters
|
Main unit |
||
| Number of Detectable Channels |
4 channels, 1 TEV, |
|
| Sampling Accuracy |
12bit |
|
| Synchronization Method | Internal sync, external sync, optical sync TEV |
|
|
TEV |
||
| Detection Bandwidth |
3M-100MHz |
|
| Measurement Range |
0～60dB |
|
| Measurement Error |
±2dB |
|
| Resolution |
1dB |
|
| Maximum Pulses per Cycle |
720个 |
|
| Minimum Pulse Frequency |
10Hz |
|
| Output Interface | Standard SMA to Host | |
| Non-contact US | ||
| Center Frequency |
40kHz |
|
| Resolution |
0.1uV |
|
| Accuracy |
±0.1uV |
|
| Measurement Range |
0.5uV～1mV |
|
| Output Interface | Standard SMA to Host | |
| Contact US | ||
| Frequency Range |
20kHz～300kHz |
|
| Output Impedance |
50Ω |
|
| Detection Sensitivity |
0.1mV |
|
| Measurement Range |
0.1mV～1V |
|
| Output Interface | Standard SMA connection to host | |
| UHF (Optional) | ||
| Detection Bandwidth |
300MHz～1.5GHz |
|
| Output Method | BNC interface - signal conditioning unit, wireless connection to host | |
| Reception Method | Antenna reception | |
| Transmission Method | Coaxial cable | |
| Detection Sensitivity |
<-60dBm |
|
|
HFCT(Optional) |
||
| Detection Bandwidth |
1M-30MHz |
|
| Transmission Impedance |
>5mV/mA(10MHz ) |
|
| Output Impedance |
50Ω |
|
| Measurement Range |
-20~80dB |
|
| Measurement Error |
±1dB |
|
| Resolution |
1dB |
|
| Output Interface | NC connector - signal conditioning unit, wireless connection to host | |
| Hardware | ||
| Display | 5.0-inch TFT true color LCD | |
| Resolution |
800×480 |
|
| Operation | Touchscreen/Buttons | |
| Storage |
TFcard |
|
| Interface | 3.5mm stereo headphone jack | |
| Power Supply |
DC-12V/2ADC power supply |
|
| Expansion Capabilities |
USB-TypeC/5MP Camera/RFID/WIFI/Bluetooth |
|
| Power | ||
| nternal Power |
Battery-powered (4800mAH 7.4V) |
|
| Normal Operating Time | Approx. 7 hours, Full Charge Time Approx. 3 hours | |
| Dimensions | ||
| L×W×H |
180mm×110mm×40mm |
|
| Weight |
0.85kg |
|
System Setting
Storage Directory
The location where database files and image files are saved during testing.
Note: Recorded data can be viewed under "Home - Test Records." Creating a new directory that already exists will overwrite the existing directory's data. Proceed with caution. All data storage paths are located in /storage/emulated/0/pd/.
RFID Devices
The system can interface with RFID devices to perform intelligent read/write operations on corresponding data.
Bluetooth Devices
Search for and connect to available Bluetooth devices in the vicinity.
Volume Control
Adjust the system's output volume level.
Date and Time
Modify the system's time and display date.
