Products Video
HMZYD-100 2-Stage Vacuum Oil Purifier Wiring Introduction Video
Product Overview & Applications

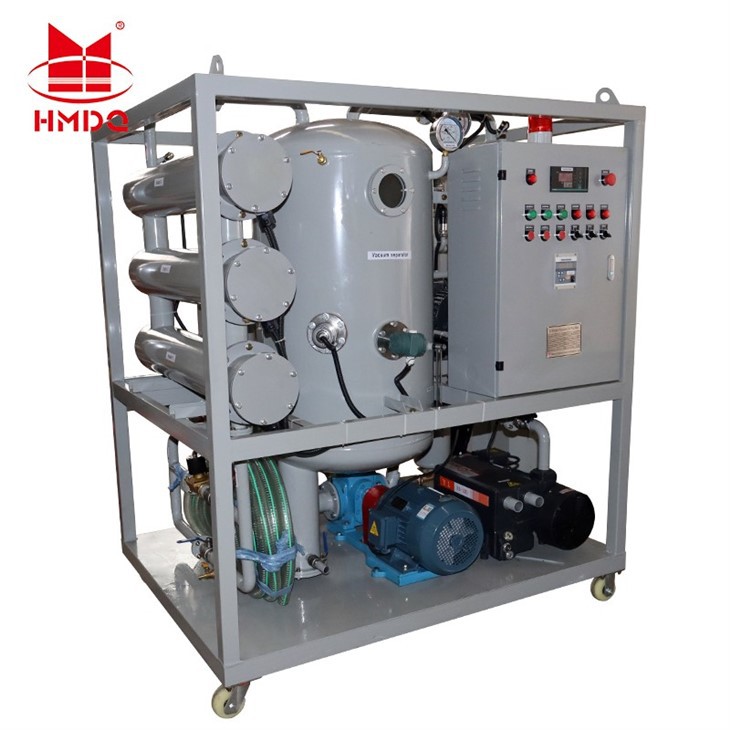

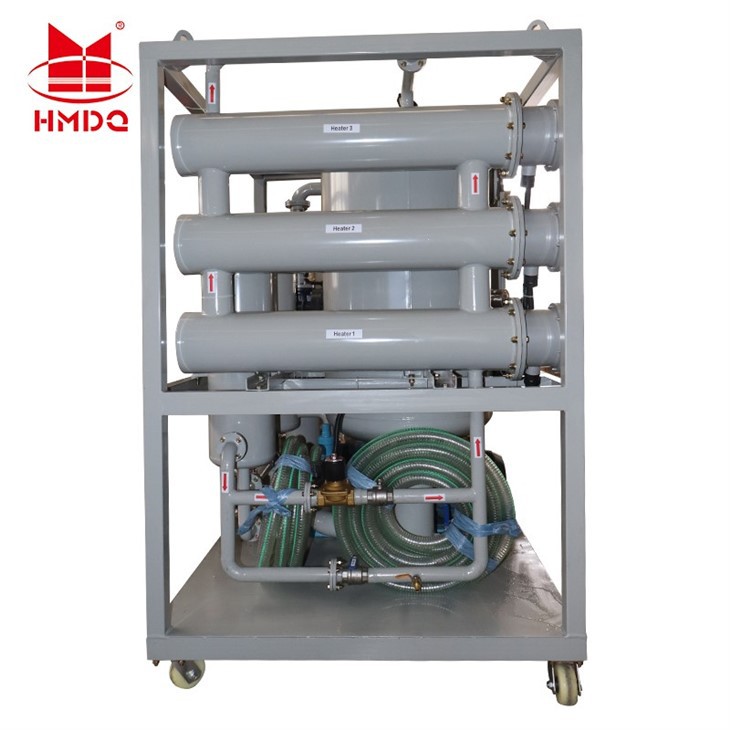

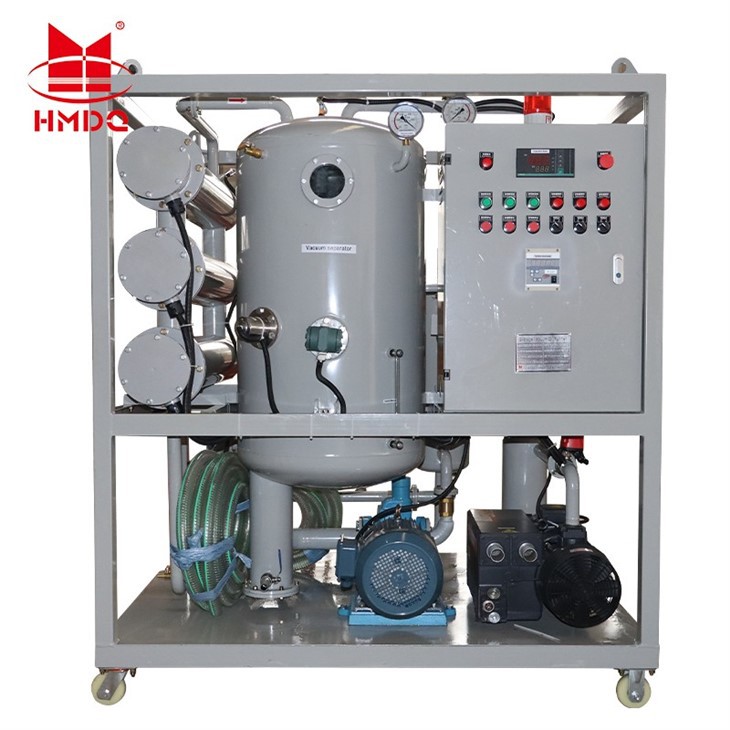

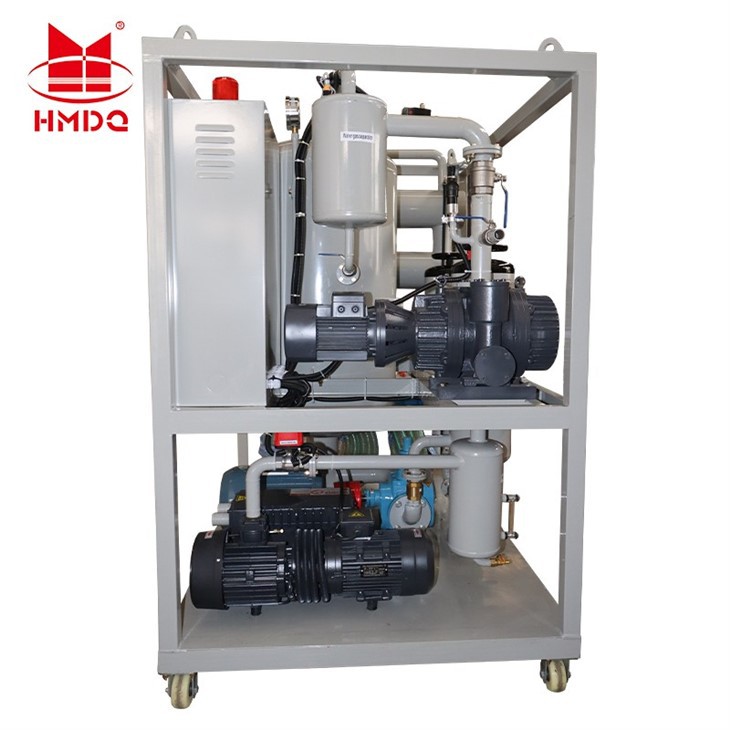

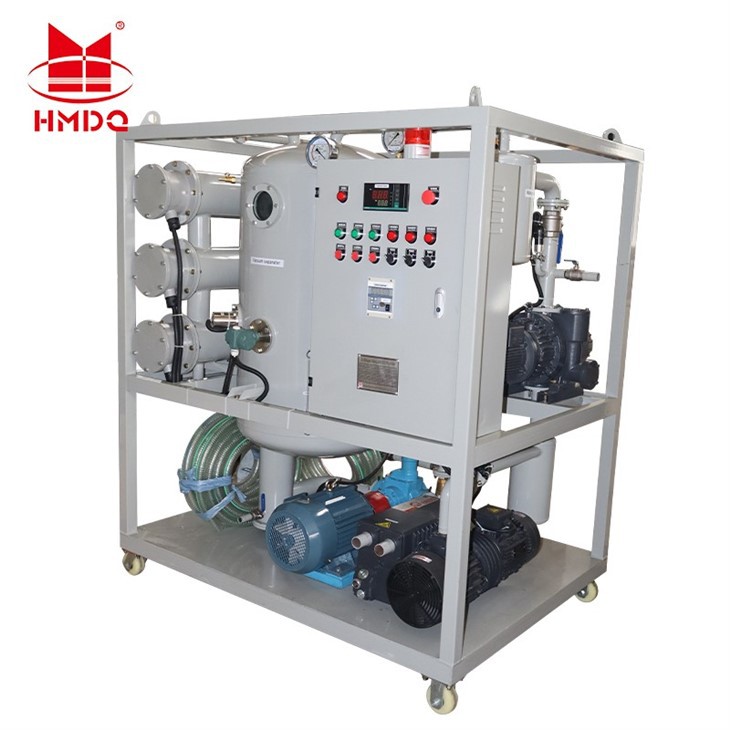

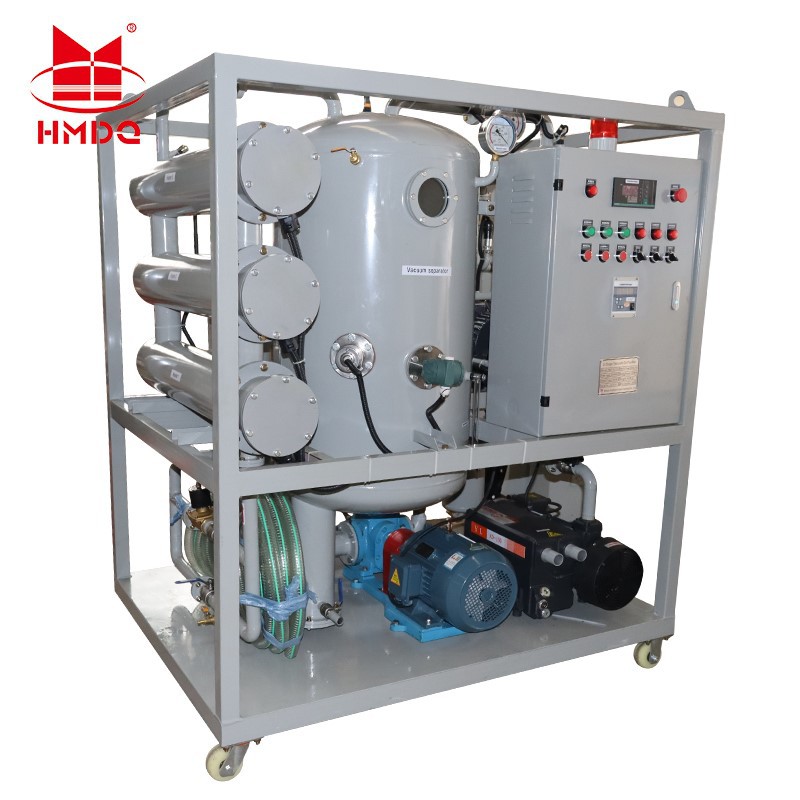

The Goldhome HMZYD-100 2-Stage Vacuum Oil Purifier is a core product designed by Wuhan Goldhome Hipot Electrical Co., Ltd. specifically for the operation and maintenance of power systems. It meets the oil purification requirements of 110 kV to 500 kV power transmission and transformation equipment, enabling deep dehydration, degassing, and impurity removal of transformer oil. It also features auxiliary functions such as vacuum oil filling and equipment drying. Reliable in operation and easy to transport, it is the preferred choice for on-site oil treatment, with all performance indicators exceeding national standards.
Specification
|
Name |
Model |
Flow(L/h) |
Remark |
|
Dul-stage vacuum oil filter |
HMZYD-100 |
6000 |
mobility |
Oil specification after filter
|
NO |
Items |
Specification |
|
|
1 |
The moisture content in oil (ppm)： |
≤3PPM(GB/T7600) |
(GB/T260) |
|
2 |
Filtering Accuracy(um)： |
≤1um |
(GB/T511) |
|
3 |
Cleanliness(NAS)： |
≤5 (NAS1638) |
|
|
4 |
Breakdown Voltqage(KV): |
70kv(GB/T507) |
|
|
5 |
Gas content(%)： |
≤0.01％(GB/T423) |
|
|
6 |
Acid Value(mgKOH\g) |
≤0.03mgKOH\g |
|
|
7 |
Flash Point(℃) |
≧135℃ |
|
|
8 |
Particle Size (pcs/ml) |
≤1000Pcs/100ml (5~100μm,) |
|
|
9 |
Acetylene content |
NA |
|
Packing List
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
