HM5001Z TTR Tester Parameter Description Video
Products Description& Features

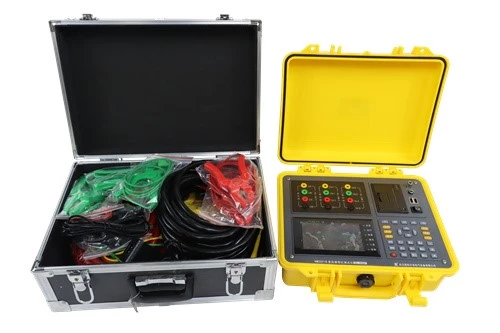

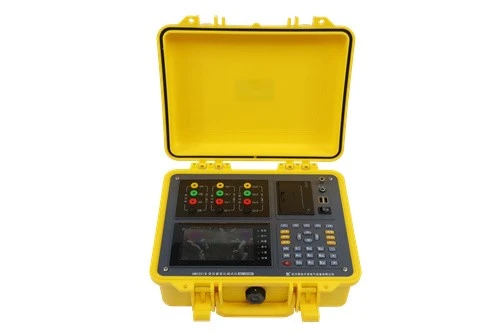

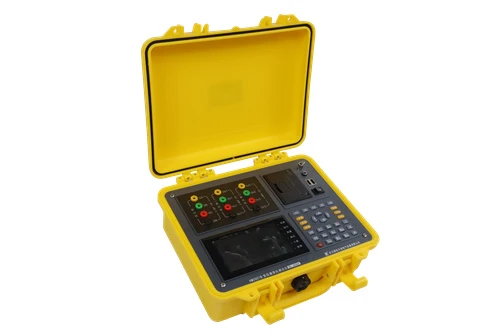

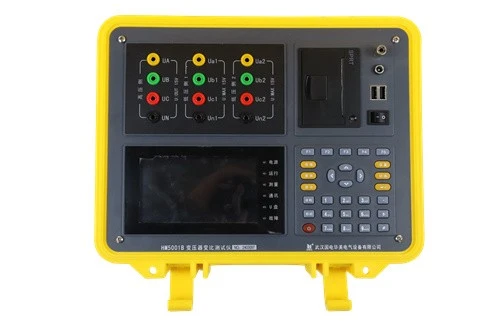

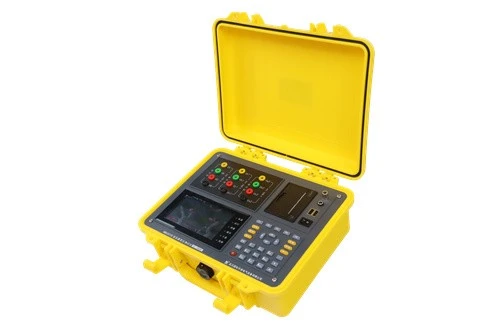

The HM5001B Turns Ratio Tester is the first device of its kind in China to date capable of performing fully blind testing (accurately measuring the turns ratio and tap position, as well as the phase angle, without knowing any parameters of the transformer under test); It meets the needs of turn ratio testing for transformers of all sizes-large, medium, and small-including Z-type transformers, rectifier transformers, electric furnace transformers, non-integer-ratio phase-shifting transformers, balancing transformers, Scott, and reverse-Scott transformers. It is currently the most technologically advanced turn ratio tester in China, featuring a comprehensive set of test items and a full range of measurement parameters.
- 1. True three-phase testing: Single-phase power input; internally generated digital three-phase sinusoidal waveform with distortion <0.1% and symmetry >0.05%, preventing incorrect phase group identification.
- 2. Dual-ratio measurement: Supports both turn ratio and operating voltage ratio; the operating voltage ratio more closely reflects actual operating conditions.
- 3. Phase Angle and Vector Diagram: Measures phase angles from 0 to 360°, with a hexagonal diagram providing an intuitive display of the connection group.
- 4. Fully Automatic Blind Testing: No need to select wiring configurations or connection groups; automatically identifies Y/Δ and supports measurement of transformers without nameplates.
- 5. Efficient Tap Testing: Enter the rated transformation ratio only once; the system automatically calculates errors for each tap position.
- 6. High-Definition Display + Built-in Printer: A 5-inch color screen displays data and vector diagrams, with an integrated thermal printer for instant output.
- 7. Built-in Lithium Battery: A high-capacity battery provides power for over 500 consecutive measurements on a single charge, eliminating the need for an external power source.
- 8. Lightweight and Vibration-Resistant: Weighing just 2.6 kg, the unit is lightweight and features military-grade connectors for enhanced vibration resistance.
Products Parameters
| 1 | Ratio measurement range | 0.8~10000. |
| 2 |
Resolution minimum |
0.0001 |
| 3 |
Accuracy |
Voltage measurement accuracy on HV side: 0.05%; Voltage measurement accuracy on LV side: 0.1%; Phase angle measurement accuracy: 0.1°
|
| 4 |
Dimension |
320mm*240mm*130mm |
| 5 |
Instrument weight |
2.6kg |

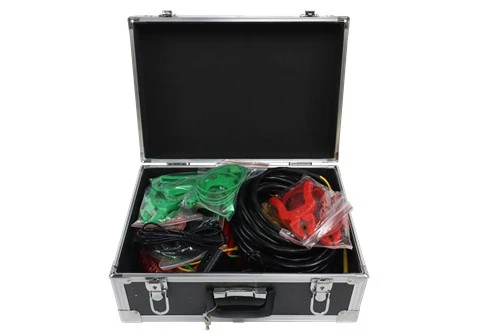

Connection Wire

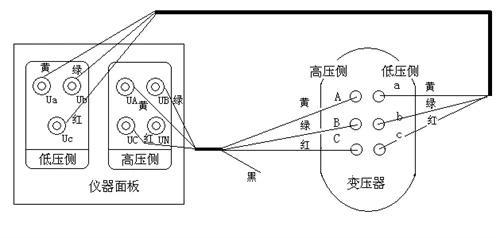

When performing three-phase measurements, connect the yellow, green, and red wires on the high-voltage side of the instrument to the A, B, and C terminals on the high-voltage side of the transformer, respectively, and connect the yellow, green, and red wires on the low-voltage side of the instrument to the a, b, and c terminals on the low-voltage side of the transformer, respectively. Testing can only be performed if the connections are correct. The wiring diagram is shown below:
FAQ
Q: What types of transformers can be tested?
A: These include Z-type transformers, rectifier transformers, electric furnace transformers, non-synchronous phase-shifting transformers, balancing transformers, Scott transformers, and reverse Scott transformers.
Q: How do I interpret the test results? What does the vector diagram mean?
A: Test results are displayed simultaneously as numerical values and hexagonal vector diagrams on a 5-inch high-definition true-color LCD screen. In the vector diagram, the angular relationship between the high-voltage side vector (the large triangle in the outer circle) and the low-voltage side vector (the small triangle in the inner circle) intuitively reflects the transformer's connection group.
