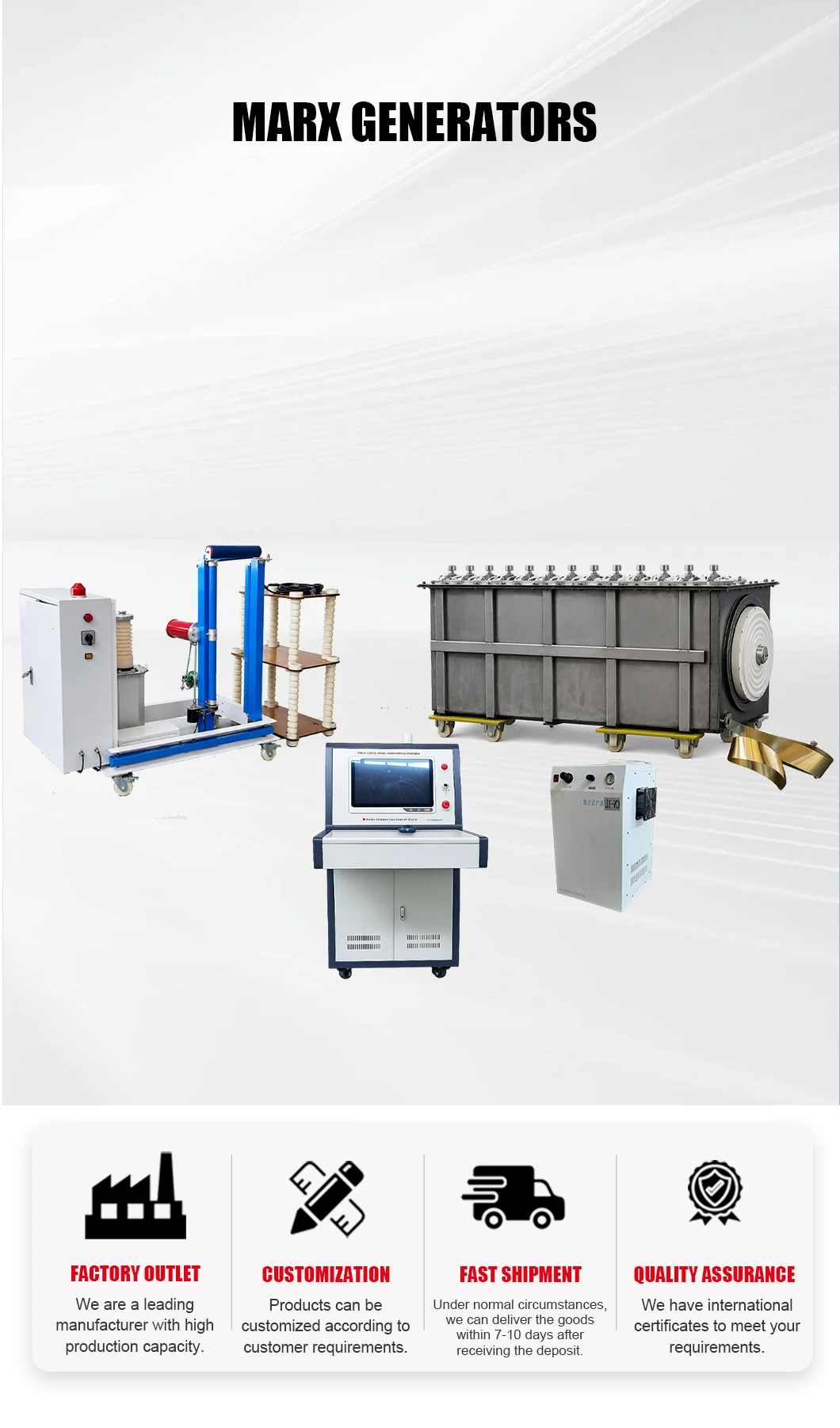

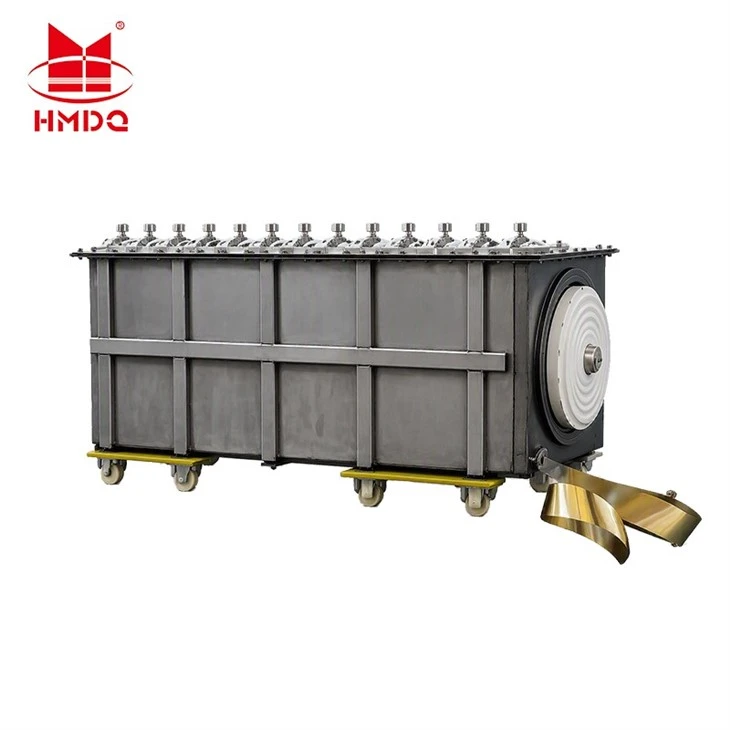

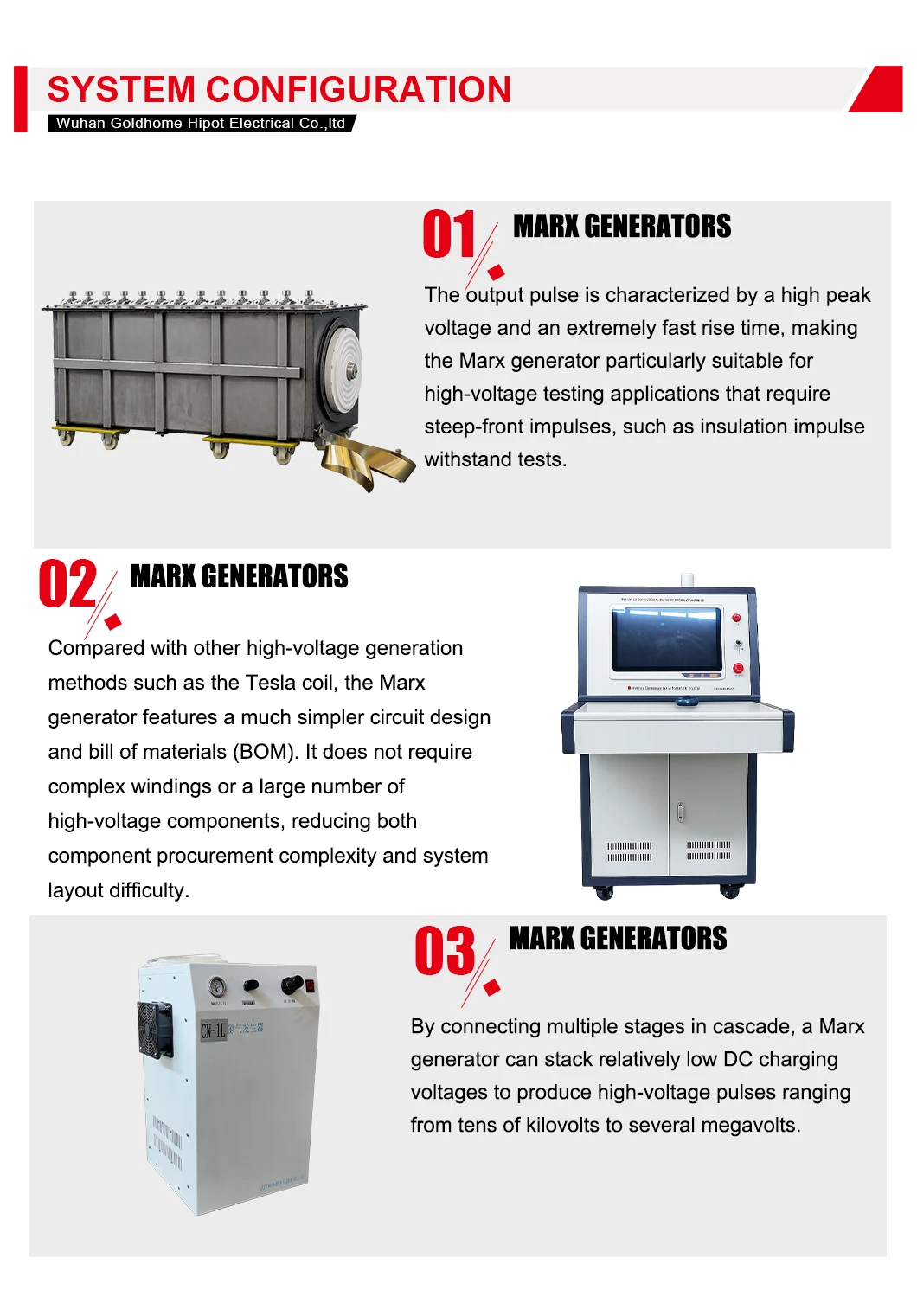

Marx generator introduction
|
The HMCJ-1200kV/2400J Marx Impulse Voltage Generator is equipped with an advanced computer-based measurement and control system featuring PLC control, fiber-optic communication, and NI LabVIEW-based software technology. The intelligent control system ensures safe, stable, and accurate operation during high-voltage impulse testing. |
Computer console Usage Condition
| Altitude | ≤1000 m |
| Ambient Temperature | –5°C to 40°C |
| Relative Humidity | ≤90% |
| Installation Location | Indoors |
| Seismic Resistance | Magnitude 8 |
| Grounding Resistance | <0.3 Ω |
| Operating Environment | Free of conductive dust, etc. |

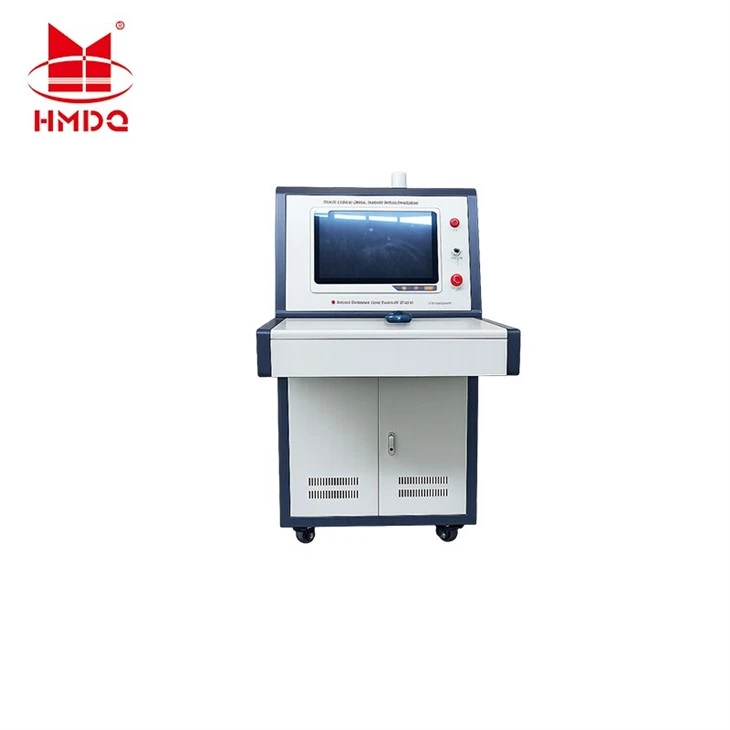

Console system Specification
| Setting Range | 0.0–100.0 kV |
|---|---|
| Operating Voltage | 10.0–100.0 kV |
| Adjustment Accuracy | 0.1 kV |
| Charging Voltage Instability | ≤±1.0 % |
| Setting Range | 0–9999 times |
| Adjustment Accuracy | 1 time |
| Input Control Voltage | 0–10 VDC |
| Input Power Supply Voltage | 380 VAC ±10% |
| Output AC Voltage | 10–380 VAC (continuously adjustable) |
| Output AC Current | 0–25 A |
Console System Key Features
- PLC Automatic Control System
- Uses a programmable logic controller (PLC) for automatic control of charging, triggering, operation monitoring, and test parameter management.
- Fiber-Optic Isolation Technology
- Fiber-optic communication provides excellent electrical isolation and effectively reduces electromagnetic interference, ground potential interference, and signal transmission problems in high-voltage testing environments.
- NI LabVIEW Measurement Software
- Integrated LabVIEW-based software enables real-time monitoring, digital data acquisition, waveform analysis, and test result display through an intuitive computer interface.
- Intelligent Test Operation
- The system allows operators to set and control key parameters, including DC charging voltage, charging time, discharge gap, and triggering mode, directly from the computer platform.
- Reliable and Expandable Design
- The advanced control architecture provides high stability, repeatable test results, strong communication capability, and flexible expansion for different impulse voltage testing applications.

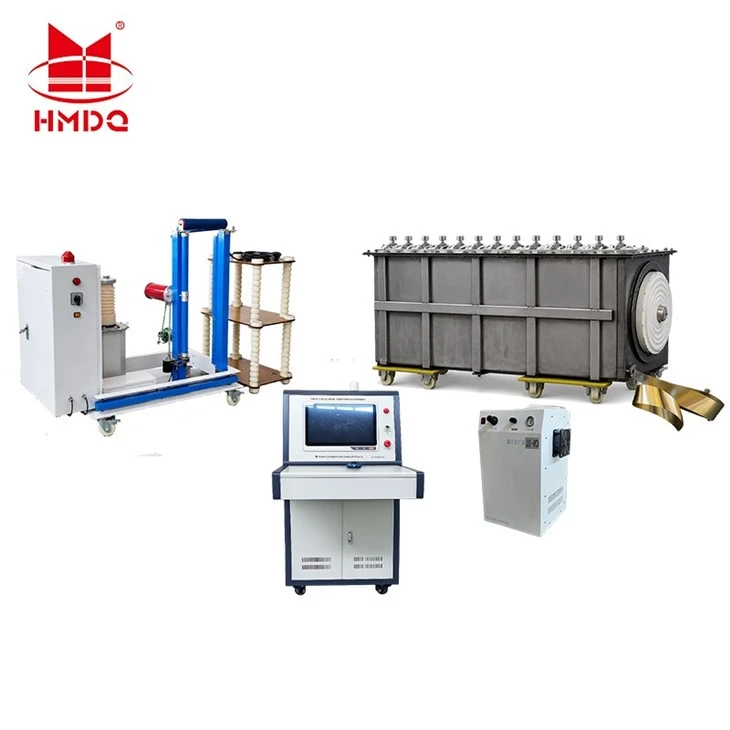

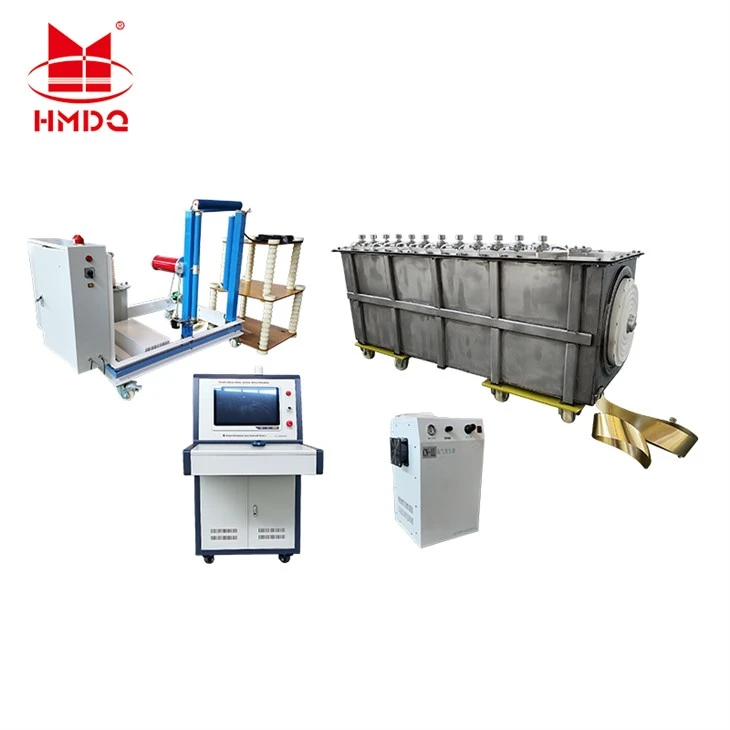

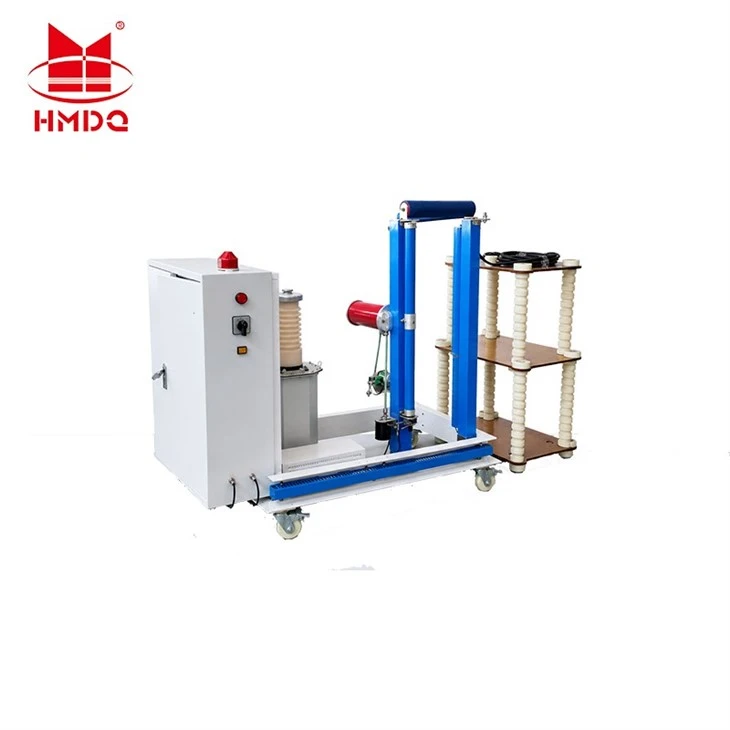

Marx generator Pictures
