Cable Fault Pin-pointer

Product Overview

The Cable Path Locator is a highly efficient and precise underground cable and pipeline detection device that integrates path positioning, burial depth measurement, protective coating damage detection, and fault point identification. By transmitting specific frequency signals through the transmitter and capturing feedback signals in real-time with a high-sensitivity receiver, it rapidly pinpoints target locations. It is suitable for scenarios such as underground pipeline maintenance, pre-construction surveys, and fault diagnosis.

Application Scenarios

Municipal Engineering: Locate underground pipelines before road construction to avoid excavation risks.

Power Maintenance: Rapidly pinpoint cable fault locations to minimize power outages.

Telecommunications Repair: Precisely track the route and burial depth of fiber optic or communication cables.

Industrial Applications: Inspect pipeline anti-corrosion coating damage in complex environments such as chemical plants and mining areas.

◆ Sensor dynamic range: sound channel>104dB.

◆ Impact discharge sound amplification factor >90dB, and the upper limit of the impact discharge volume is 84dB(A).

◆ LCD display: high-brightness true color screen, 320 x 240 pixels, suitable for outdoor use.

◆ Power supply: Alkaline replaceable battery/Lithium-ion rechargeable battery, convenient for field use.

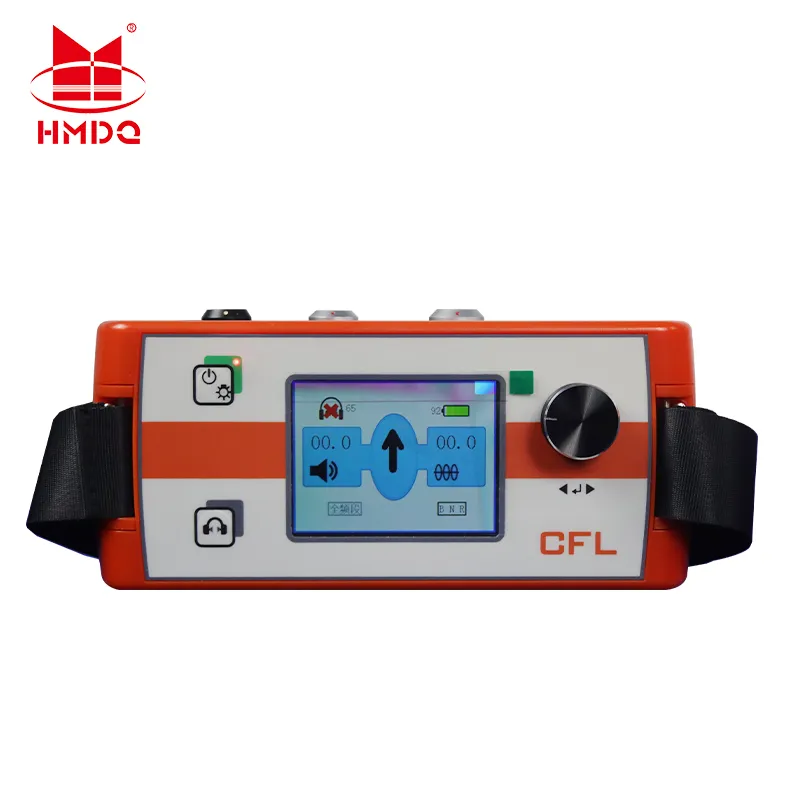

• One receiver host, model HM-C10A, including shoulder strap;

• One sensor (ground penetrating microphone);

• One height-adjustable handle with a height range of 450-750 mm;

• One earphone, sound quality;

• One signal line, which connects the receiver host to the sensor, 1.20m long;

• One hard ground probe, 18 mm long;

• One grass probe, 75 mm long;

• 6 AA alkaline batteries, model IEC R6
