Technical Parameters
Product Parameters

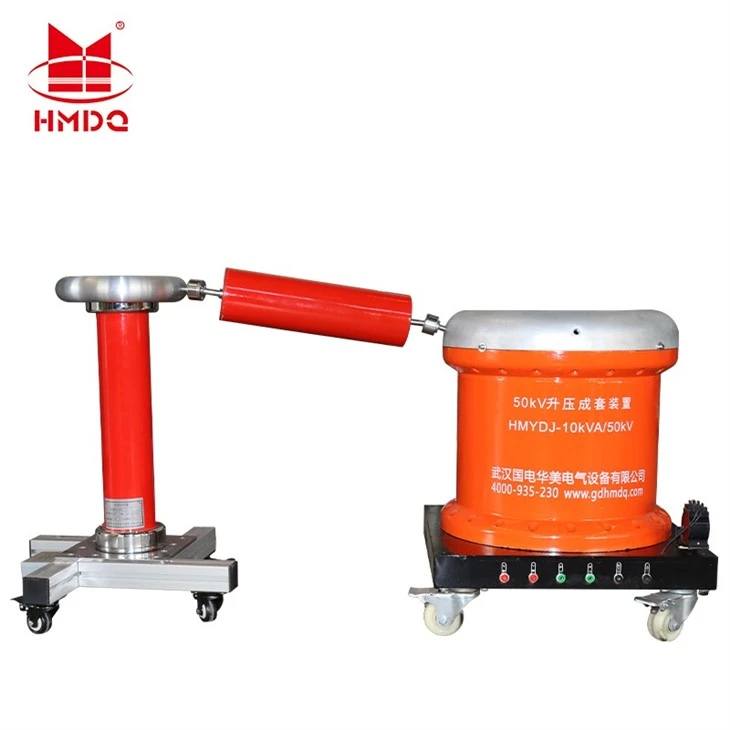

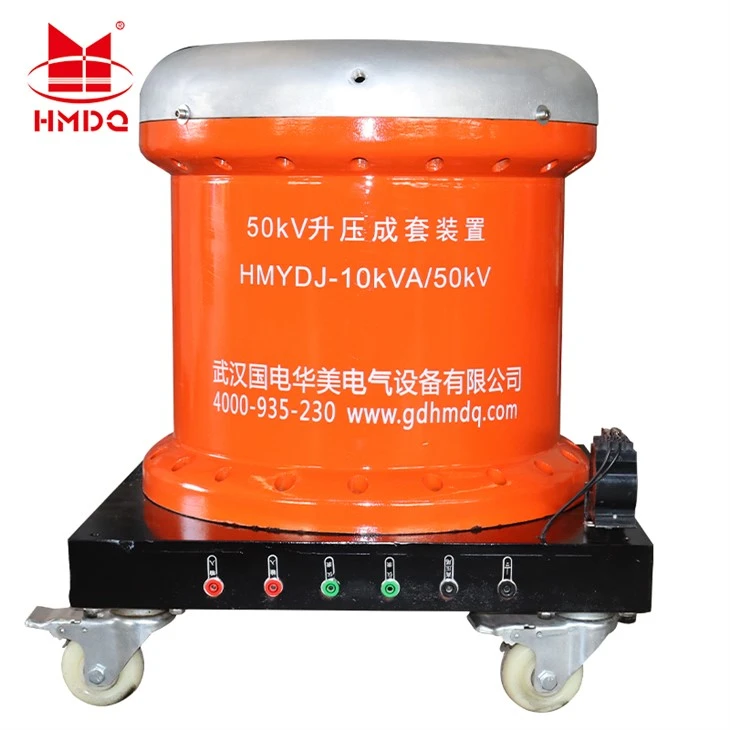

- Model YDJ-10/50
- Rated Capacity 10 kVA
- Product Number 2303060
- High-Voltage AC 50 kV
- High-Voltage Current 200 mA
- Low-Voltage 200 V
- Low-Voltage Current 50 A
- Measurement Voltage 100 V
- Measurement Current 20 mA
- DC High Voltage Not applicable (this model is AC-only)
- Number of Phases/Connection Group Single-phase / I.I

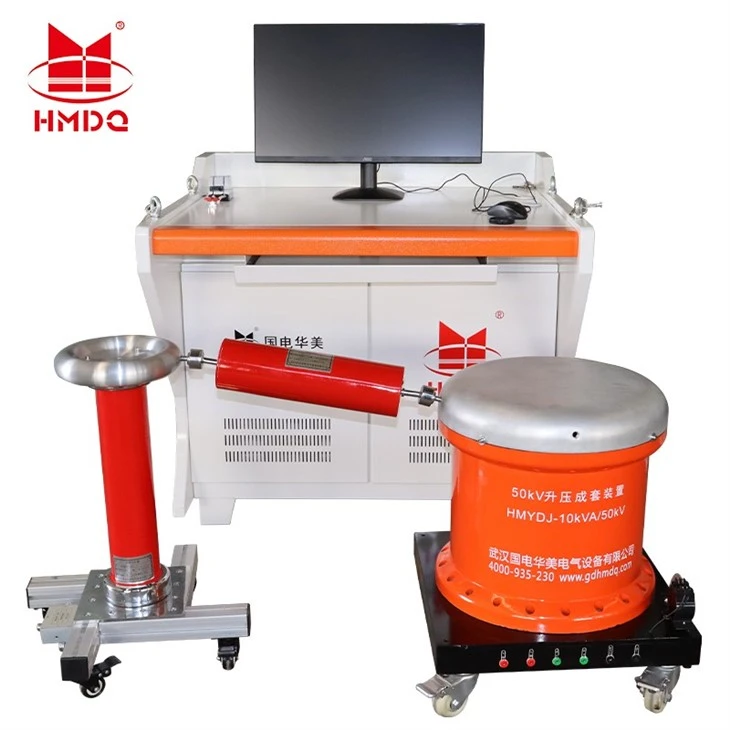

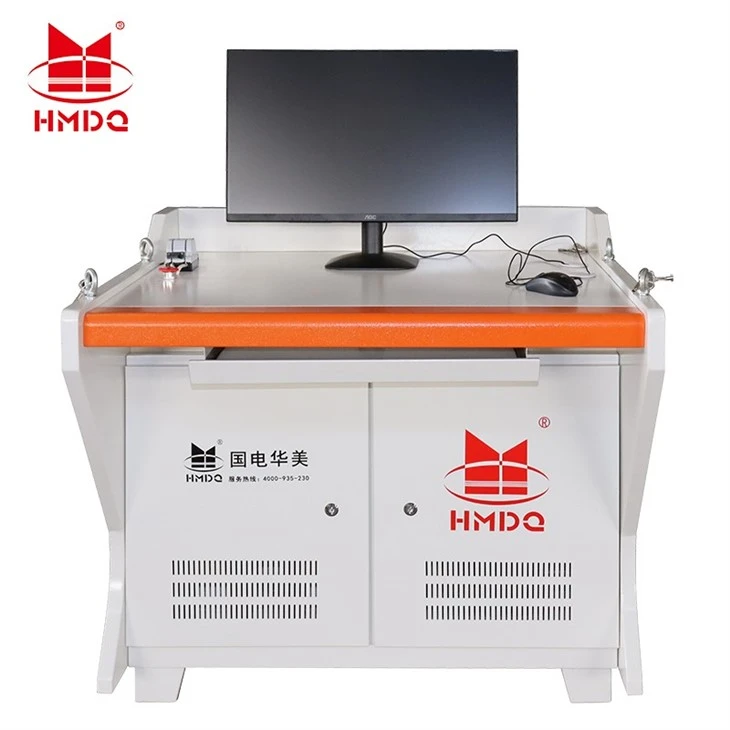

- Power Input 220 V (via control panel)
- Test Standard DL/T 848.2-2018
Product features

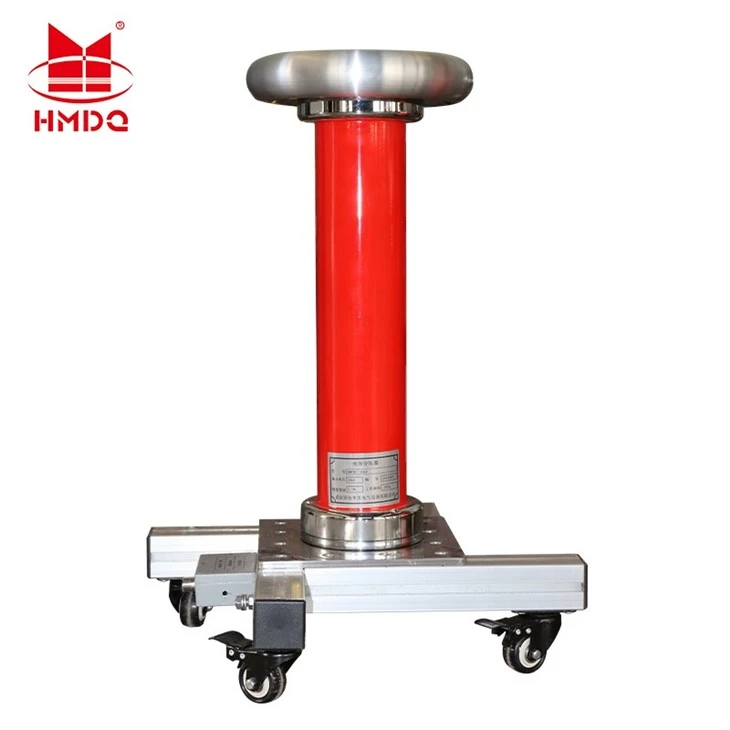

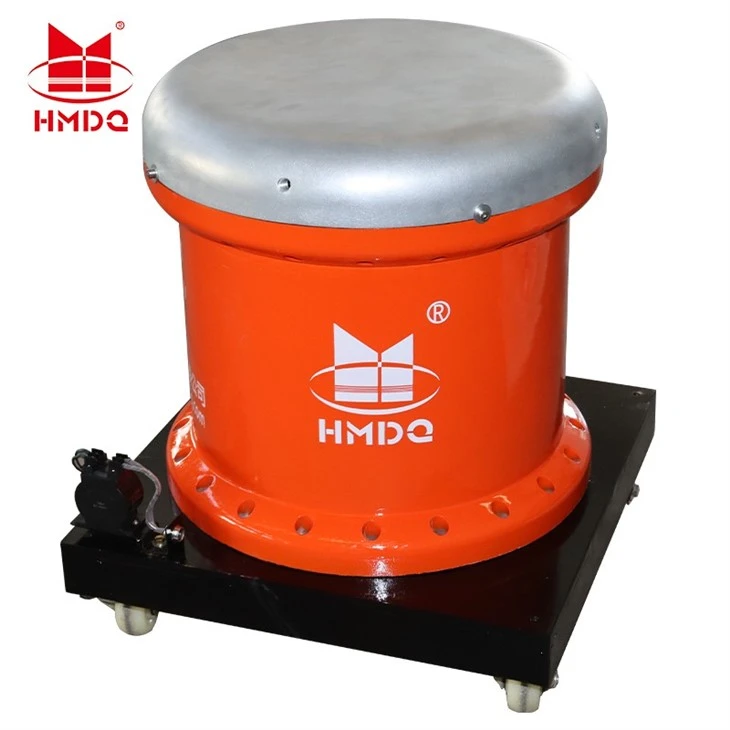

- Compact Design: Features a single-frame core structure, with the primary winding wound around the core and the high-voltage winding on the outside. This coaxial arrangement reduces magnetic leakage and increases coupling between the windings.
- Attractive Appearance: The housing is designed in an octagonal shape that fits the core perfectly.
- Compact and lightweight, it offers comprehensive functionality, high versatility, and ease of use.
- Cascadable: Supports cascading multiple units to achieve higher voltages (when three units are cascaded, the output voltages can reach 1V, 2V, and 3V, with capacities of 3P, 2P, and 1P, respectively). Units can be used in combination or separately, offering cost-effective flexibility.
- Standard Interfaces: Equipped with low-voltage input terminals (a, x), instrument measurement terminals (E, F), high-voltage output (A), and high-voltage tail (X).
