Wuhan Goldhome Hipot Electrical Co., Ltd. is one of the leading manufacturers and suppliers of multi-frequency induction withstand tester in China. With abundant experience, our factory offer high quality customized products made in China with competitive price. Welcome to contact us for quotation.
Products Description

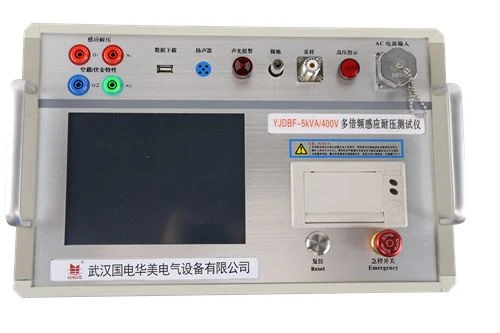

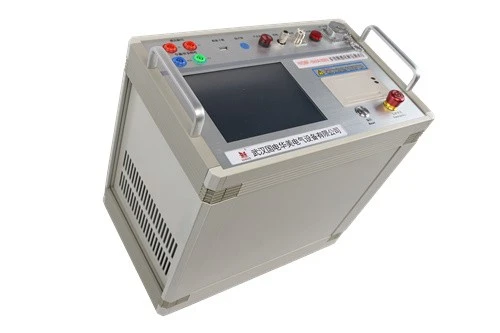

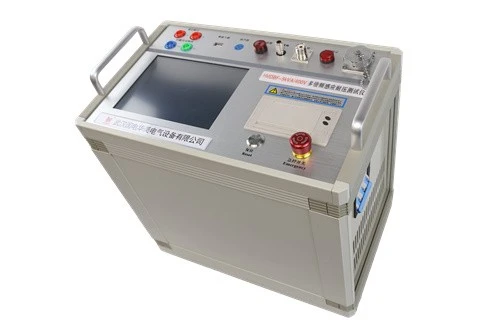

The HMDBF is primarily used for induction withstand voltage tests on transformers and instrument transformers, particularly for evaluating the longitudinal insulation between turns, layers, sections, and phases of windings. Utilizing power electronics technology, the equipment features a frequency converter at its core, combined with digital control technology, enabling it to output test voltages at multiples of 50 Hz, 100 Hz, 150 Hz, and 200 Hz, thereby meeting the requirements for induced withstand voltage and voltage-current characteristic testing of power equipment such as transformers and instrument transformers.
Products Parameters
- Rated Capacity 5 kVA
- Input Voltage AC 380 V ±10% (single-phase); can also be connected to 220 V (capacity halved)
- Input Frequency 50 Hz
- Output Voltage 0–400 V (voltage can be increased by connecting an external step-up transformer)
- Output Frequency 50 Hz, 100 Hz, 150 Hz, 200 Hz (selectable)
- Waveform Distortion Rate <3%
- Control Method Digital control, 7-inch color touchscreen
- Printing Function Built-in thermal printer; can print test data

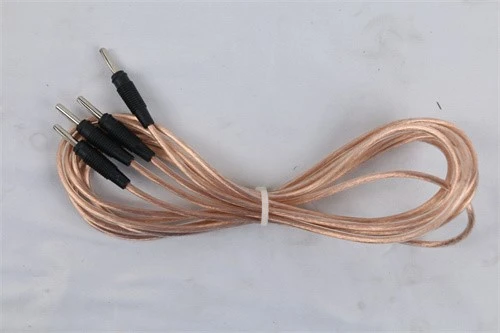

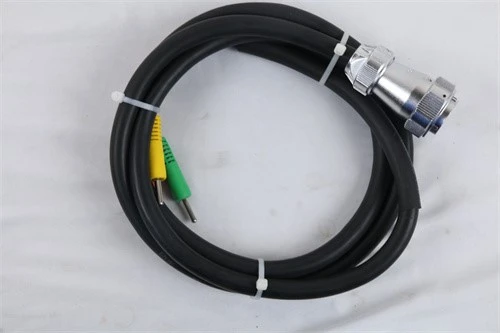

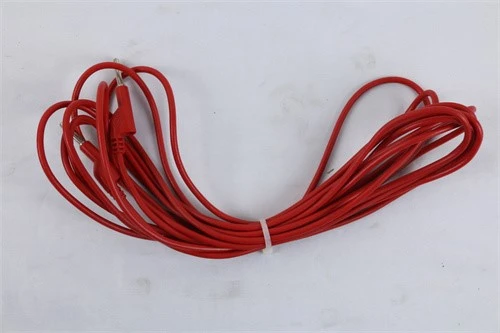

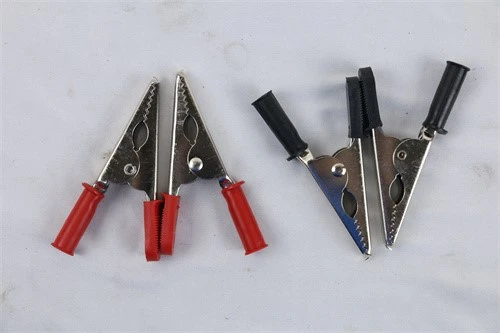

Products Parts
