Product Overview:

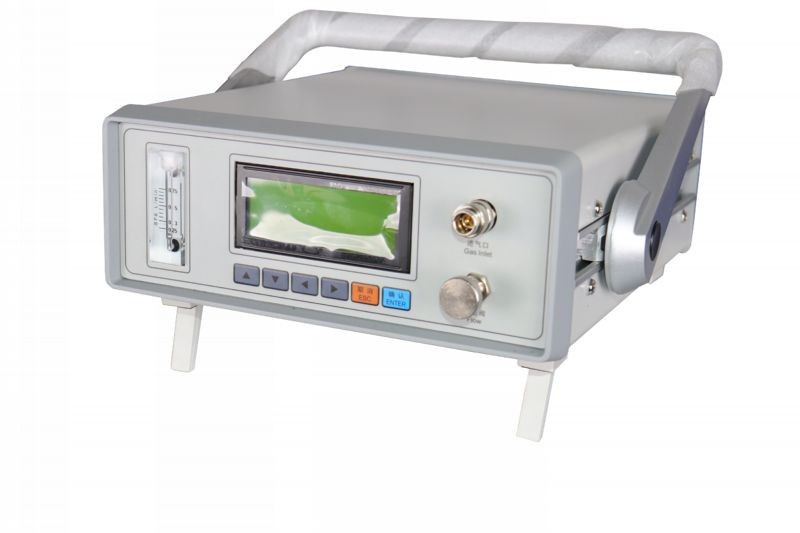

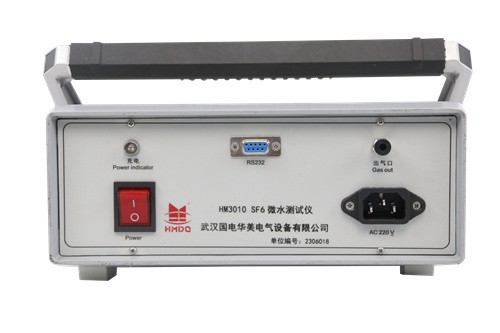

The HM3010 SF6 Gas Trace Moisture Tester is a high-precision, multi-module comprehensive testing device independently developed by Wuhan Goldhome Hipot Electrical Co., Ltd. It focuses on three key parameters of SF6 insulating gas-trace moisture, purity, and decomposition products-and is specifically designed for use in substations, SF6 switchgear operation and maintenance, power system maintenance, and research applications. Combining precision with portability, it enables a comprehensive, one-stop assessment of SF6 gas quality.
Applications:
- Key Industries: Power generation (SF6 gas arc-quenching performance testing), petrochemicals, metallurgy, environmental protection, and research institutions.
- Suitable Gases: SF6 gas, air, nitrogen, inert gases, and other non-corrosive gases.
- Typical Applications: Evaluating the insulation performance of electrical equipment, industrial gas quality control, environmental monitoring, and more.
Technical Specifications
|
Parameter |
Specification |
|
Measurement Range |
Dew Point: -80°C to +20°C |
|
Moisture Value: 0–19999μL/L |
|
|
Accuracy |
±0.5°C (-60°C to +20°C) |
|
±1.0°C (-80°C to -60°C) |
|
|
Resolution |
Dew Point: 0.1°C |
|
Moisture Value: 1μL/L |
|
|
Response Time |
63% in 5s (-80°C to +20°C) |
|
90% in 45s |
|
|
Sampling Flow Rate |
0.6L/min ±20% |
|
Pressure Range |
0–1.0MPa |
|
Operating Temperature |
-20°C to +60°C |
|
Ambient Humidity |
0–100%RH |
|
Charging Time / Runtime |
4 - hour charging |
|
8 - hour continuous operation |
|
|
Dimensions / Weight |
250×150×300mm³ / 4.4kg |
Maintenance & FAQs
Note: For technical support, contact our service team for lifetime consultation and calibration services.
