Wuhan Goldhome Hipot Electrical Co., Ltd. is one of the leading manufacturers and suppliers of 1200kv/90kj impulse voltage generator for high voltage testing in China. With abundant experience, our factory offer high quality customized products made in China with competitive price. Welcome to contact us for quotation.
Product Video
Product Overview
|

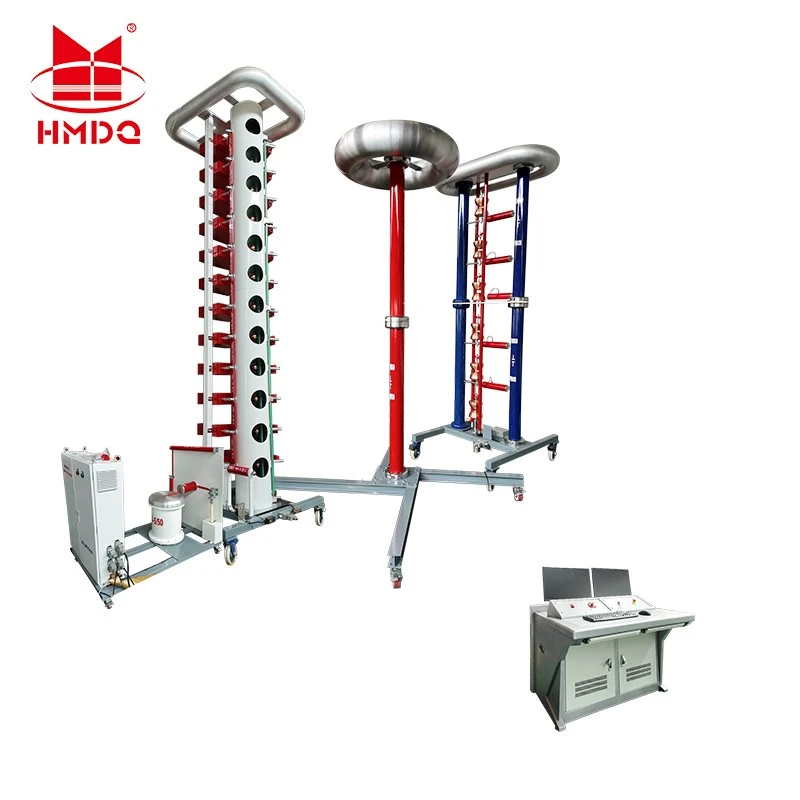

The Goldhome HMCJ-1200kV/90kJ impulse voltage generator is a high-voltage testing system designed to generate impulse voltages for evaluating the insulation performance of electrical equipment. The system is intended for lightning impulse full-wave and chopped-wave testing. It can be used in high-voltage test laboratories and electrical equipment testing facilities where impulse voltage tests are required. The system configuration includes an impulse voltage generator, a DC charging unit, a capacitive voltage divider, a chopping device, and a control and measurement system. These components work together to generate the required impulse voltage, measure the test waveform, and support the testing process. For users selecting impulse voltage test equipment, the rated impulse voltage, nominal energy, test object, waveform requirements, and laboratory installation conditions should all be considered. |
Key Features
- Rated impulse voltage: ±1200kV
- Nominal energy: 90kJ
- Generator stages: 8
- Rated stage voltage: ±150kV
- Total impulse capacitance: 0.125μF
- Standard test applications: Lightning impulse full-wave and chopped-wave testing
- Chopping time: 2–6μs, according to the technical proposal
- Measurement system: Capacitive voltage divider and waveform measurement equipment
- Control system: PLC-based control and measurement configuration
The final equipment configuration and applicable technical parameters should be confirmed against the approved project specification.
Marx generator Specification
| Parameter | Specification |
|---|---|
| Product model | HMCJ-1200kV/90kJ |
| Rated impulse voltage | ±1200kV |
| Nominal energy | 90kJ |
| Number of stages | 8 |
| Rated stage voltage | ±150kV |
| Stage capacitance | 2.0μF |
| Total impulse capacitance | 0.125μF |
| Chopping time | 2–6μs |
| Main test waveforms | Lightning impulse full wave and chopped wave |
| Voltage measurement | Capacitive voltage divider |
| Chopping device | DB-1200 multi-sphere chopping device |
| Control and measurement | PLC control and waveform measurement system |
Main System Components

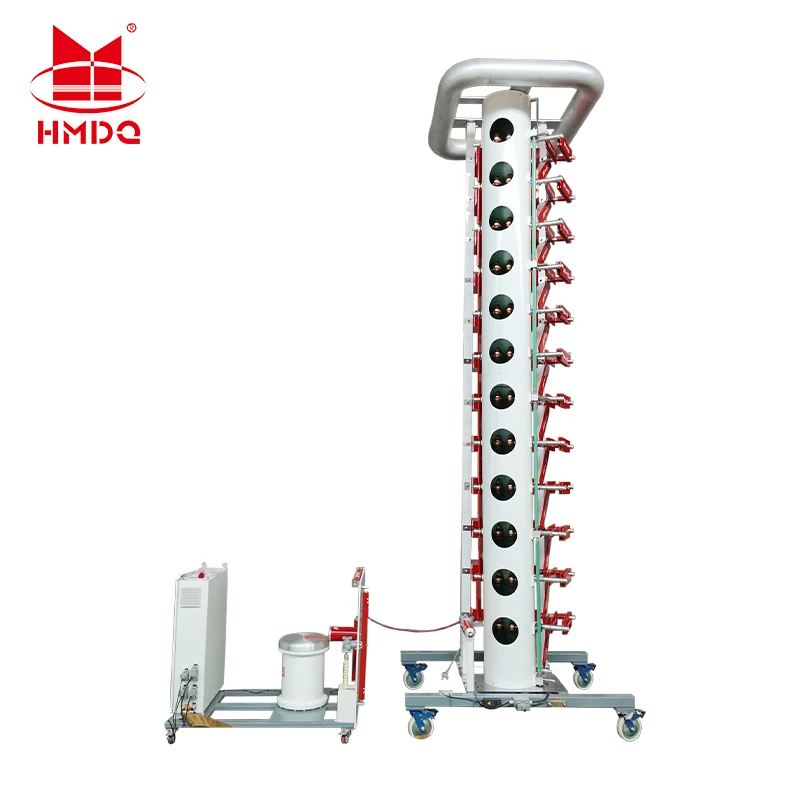

1. Impulse Voltage Generator
The impulse voltage generator produces the high-voltage impulse required for insulation testing. Its rated voltage and energy determine the range of test requirements that the system is designed to address.
2. DC Charging Unit
The DC charging unit charges the generator stages before an impulse test. The charging configuration and operating parameters should be matched to the generator design and approved test procedure.
3. Capacitive Voltage Divider
The capacitive voltage divider measures the generated impulse voltage and provides a scaled signal for waveform measurement. The measurement range and performance should be suitable for the intended test voltage and waveform.
4. Chopping Device
The chopping device is used to produce a chopped impulse waveform when required by the test procedure. The technical proposal specifies a DB-1200 multi-sphere chopping device.
5. Control and Measurement System
The control and measurement system supports equipment operation, test control, and waveform observation. The proposed configuration includes a PLC-based control and measurement system and a digital oscilloscope.
Applications
The 1200kV/90kJ impulse voltage generator can be considered for high-voltage impulse testing applications involving electrical insulation.
Potential test objects include:
Power transformers
High-voltage switchgear
Circuit breakers
Insulators
Other high-voltage electrical components
The suitability of the system depends on the test object's rated voltage, insulation design, required impulse waveform, and applicable test standard.
fAQs
Q: Does the system include voltage measurement equipment?
A: The proposed system configuration includes a capacitive voltage divider and waveform measurement equipment. The final supply scope should be confirmed in the approved quotation and technical agreement.
Q: Can you provide OEM or ODM services?
A: Yes.We support:
OEM branding
Customized cabinet colors
Customer logo
Software customization
Special technical configurations
Q: What is your production lead time?
A: Standard model: 60–90 days
Customized system: 90–150 days
depending on project requirements.
