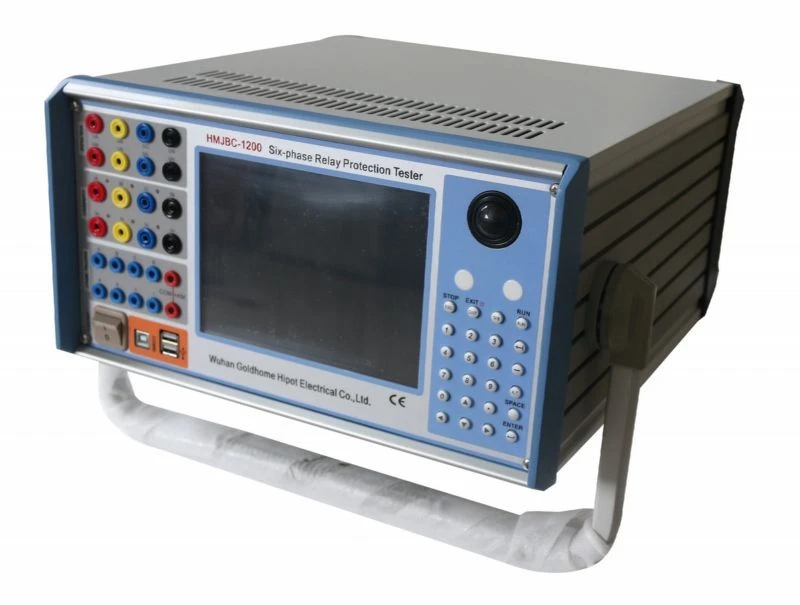

Optical Digital Relay Protection Tester

Wuhan Goldhome Hipot Electrical Co., Ltd. is one of the leading manufacturers and suppliers of optical digital relay protection tester in China. With abundant experience, our factory offer high quality customized products made in China with competitive price. Welcome to contact us for quotation.

1.It satisfies all requirements of field test.
The tester can simultaneously output standard six-phase current and six-phase voltage with 30A/phase current and 125V/phase voltage. Connecting six phase current in parallel can acquire 180A current. The tester can not only test traditional relays and protective devices, but also test modern microcomputer-based protective devices, especially the differential protection of transformers and automatic switching devices of stand-by power supply. Testing becomes more convenient and perfect.
2. All technical parameters meet the criteria DL/T624-1997 Technical Specifications of Test Equipment Based on Micro-computer for Relaying Protection issued by the Ministry of Electric Power Industry.
3. The host machine, which has embedded high performance IPC (industrial personal computer), can run independently with its 300-600MHz main frequency, 128M memory, 6-12G hard disk and Windows XP operating system.
4. It was the first one in the industry to apply imported stainless steel panel, stainless steel keypad, touch-pad mouse, which overcomes such defects of trackball mouse as difficulty in operating and prone to damage. The TFT true color display is employed with a size of 8.4 inch and its resolution being 800×600. Consequently, the overall operation of the host machine becomes convenient and durable.
5. The main control board is of DSP+FPGA structure, outputting 16 bit DAC, which may generate 2000 points high density sine wave per week to fundamental wave, greatly ameliorate the quality of waveform and improve the accuracy of tester.
6. The power amplifier is hi-fi linear type, which can both guarantee the precision of low current and the stability of heavy current.
7. The device can directly access to PC machine through USB interface, needless of any patch cord.
8. The device can run by access to notebook computer, which is installed with a same software, needless to relearn how to operate.
9. The device has GPS synchronous testing function with embedded synchronization card (matching), which accesses to PC machine through RS232 interface, so the synchronous testing by exchanging two testers in different places can be achieved.
10. The tester is equipped with independent special DC with auxiliary voltage source output, whose output voltages are 110V (1A), 220V (0.6A), for the purpose of meeting the power need of DC relay or protective devices.
11. The tester has the function of auto-regulation by software, avoiding the calibration accuracy by opening cabinet to regulate potentiometer, so the stability of accuracy is greatly improved.

Current generators General

Setting range Accuracy ＜0.2%typical

6-phase ac(L-N) 6*0…30A Distortion ≤ 0. 5%typical

3-phase ac(L-N) 3*0…60A Resolution 4.0mV

1-phase ac(L-N) 1*0…180A Generator, general

6-phase dc(L-N) 6*0…10A Frequency range

3-phase dc(L-N) 3*0…20A Sine signal DC…1000Hz

1-phase dc(L-N) 1*0…60A Transient signal DC…3000Hz

Power Frequency accuracy 0.01%

6-phase ac 6*260VA/W Frequency resolution 0.01Hz

3-phase ac 3*400VA/W Phase angle range -360…+360

1-phase ac 1*1080VA/W Phase angle accuracy 0.1

6-phase dc 6*180VA/W Digital Input and Output

3-phase dc 3*320VA/W Digital input

1-phase dc 1*780VA/W Number 10

General Input characteristic 10-250VDCorfree contact

Accuracy ＜0.2% typical Time resolution 1m s

Distortion ≤ 0.5%guaranteed Max.measuring time 9999s

Resolution 1mA Digital output

Voltage Generators Type Free relay contact

Setting rang Number 8

6-phase ac(L-N) 6*0…120V Break capacity ac 0.5A,250V

6-phase ac(L-L) 0…240V Break capacity dc 0.5A,60Vdc

6-phase dc(L-N) 6*0…160V General

6-phase dc(L-L) 0…320V Nominal supply voltage 240Vac

Power Permissible supply voltage 220-264Vac

6-phase ac(L-N) 6*70VA Nominal frequency 50/60Hz

6-phase ac(L-L) 3*140VA Permissible frequency 45-65Hz

6-phase dc(L-N) 6*80W Operating temperature -5…+50℃

6-phase dc(L-L) 3*160W Miscellaneous

PC-Connection USB

Ground Socket 4mm banana socket
