Product Introduction
The HMCXZ-1000kVA/200kV Variable-Frequency Series Resonance Withstand Voltage Test Set is primarily used for AC withstand voltage testing of major electrical equipment such as 10kV cables, power transformers, busbar switches, and thermal power generators.
Key Technical Specifications
- Rated Capacity: 1000 kVA
- Rated Output Voltage: 0–200 kV
- Output Frequency Range: 30–300 Hz, continuously adjustable
- Resonant Voltage Waveform: Pure sine wave, waveform distortion ≤1.0%
- Quality Factor (Q-factor): 30–90
- Frequency adjustment sensitivity: 0.1 Hz
- Frequency instability: <0.05%
- Continuous full-power operating time: ≥60 min
- Input power supply: Single-phase 220 V or three-phase 380 V ±10%, 50 Hz ±5%
- System measurement accuracy: Reference typical value Class 1.5
- Protection functions: Overvoltage, overcurrent, zero-voltage start, flashover protection, etc.

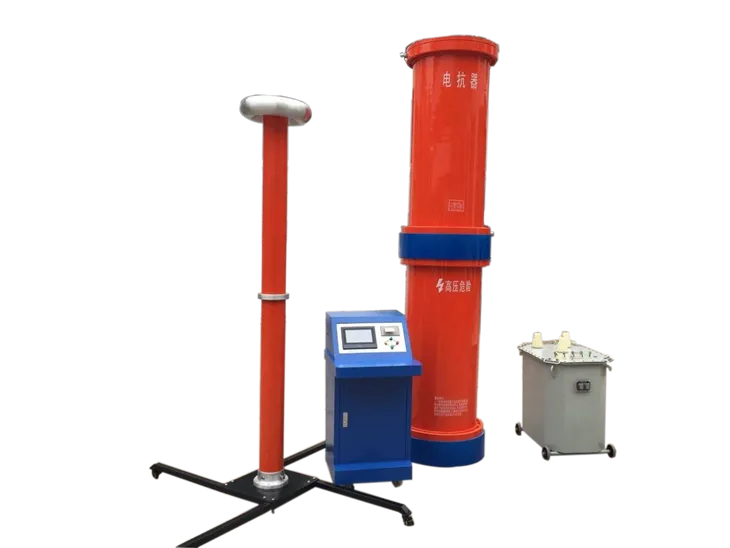

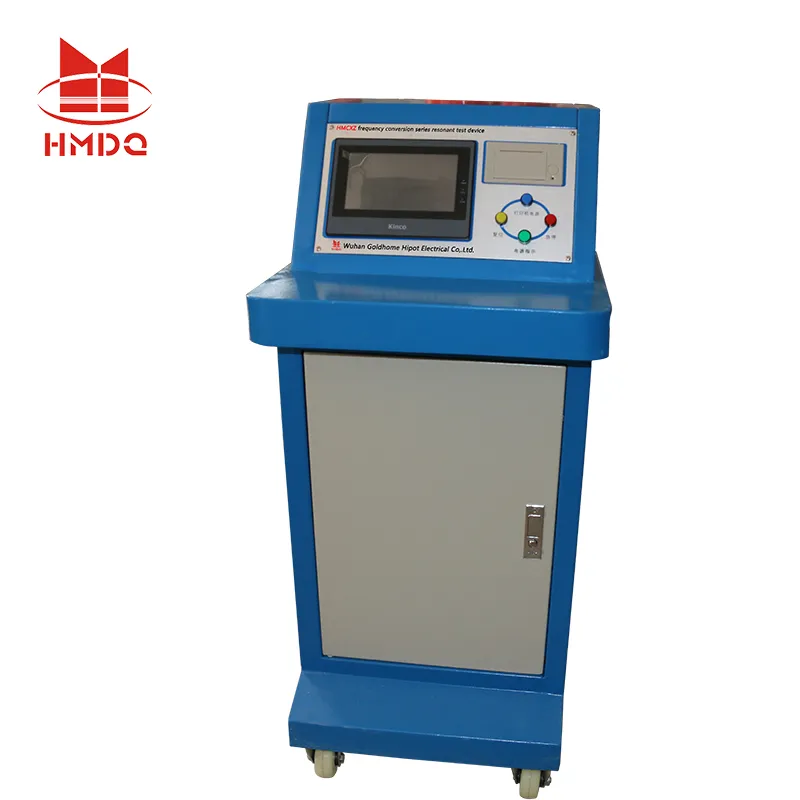

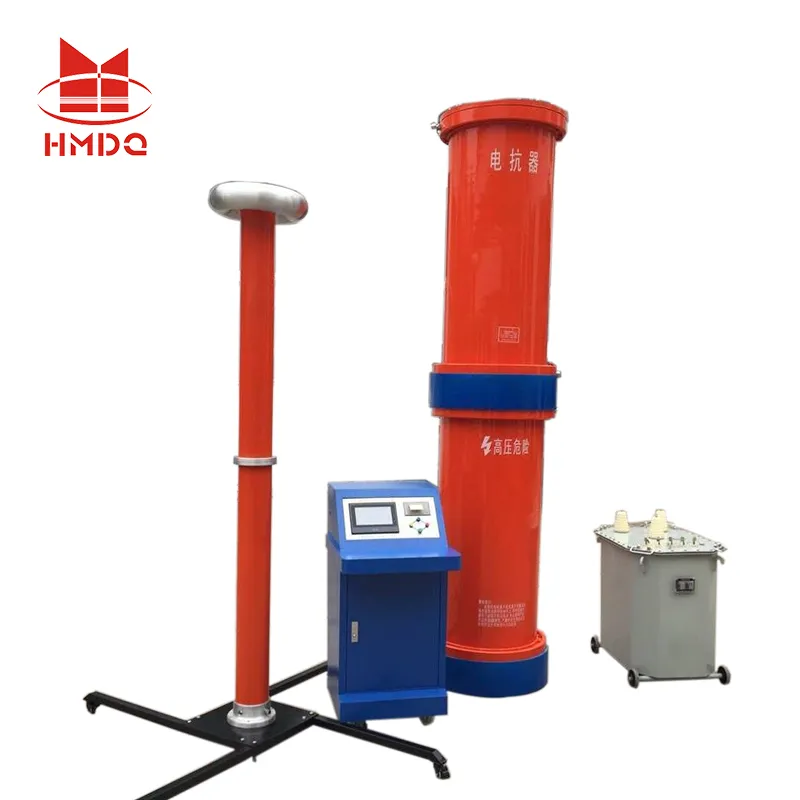

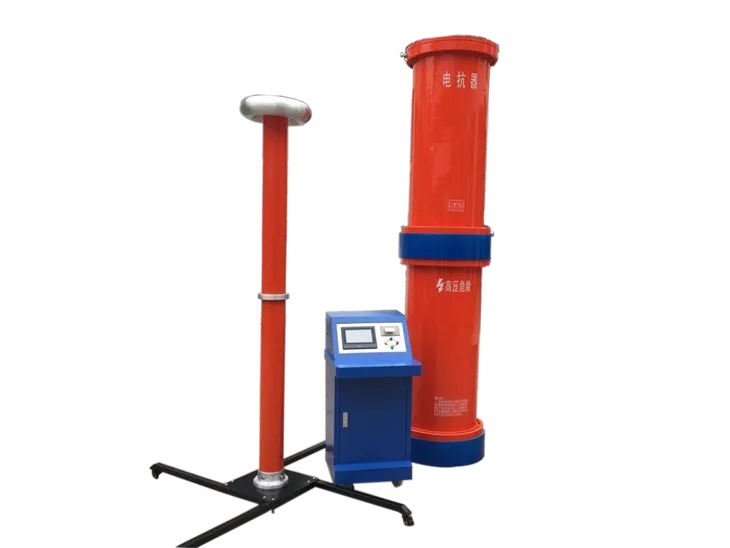

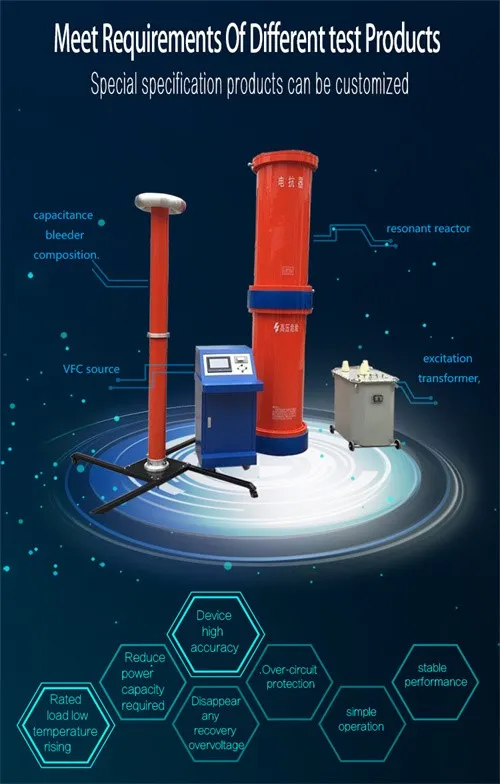

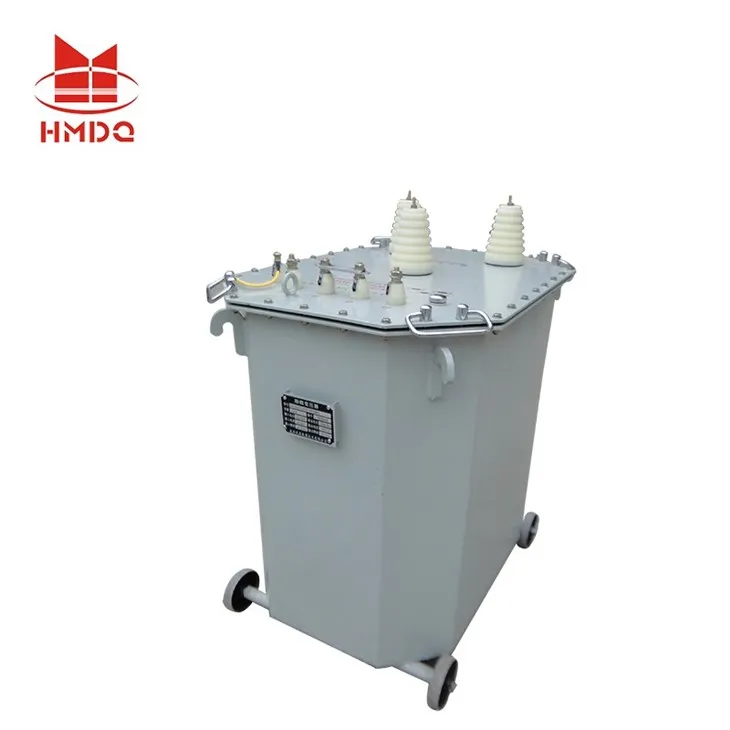

Product Display Images
