Products Description
Product Overview

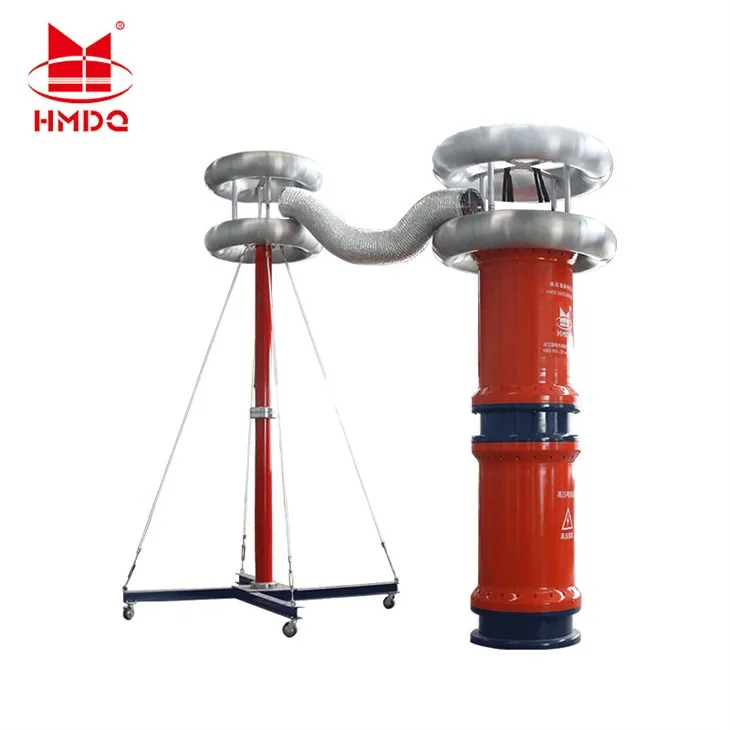

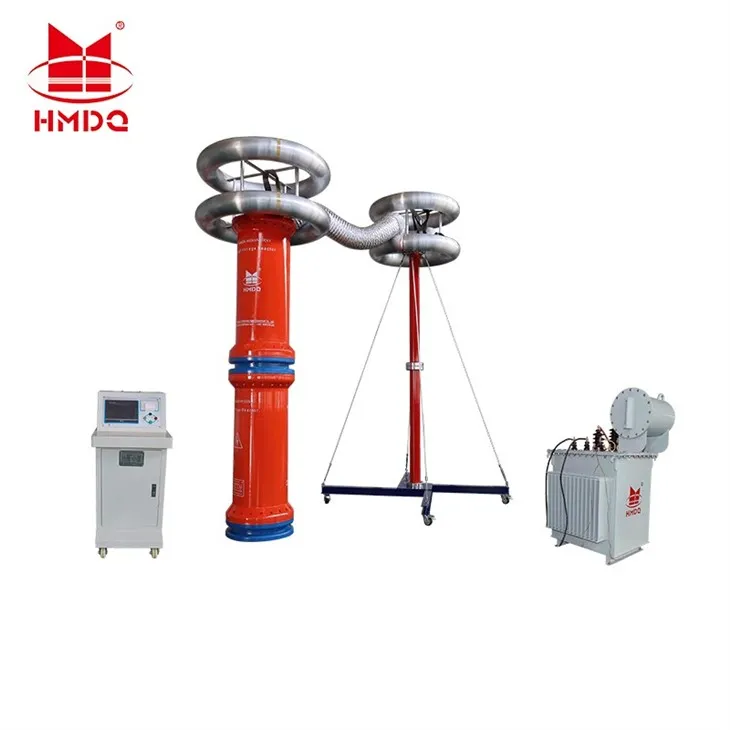

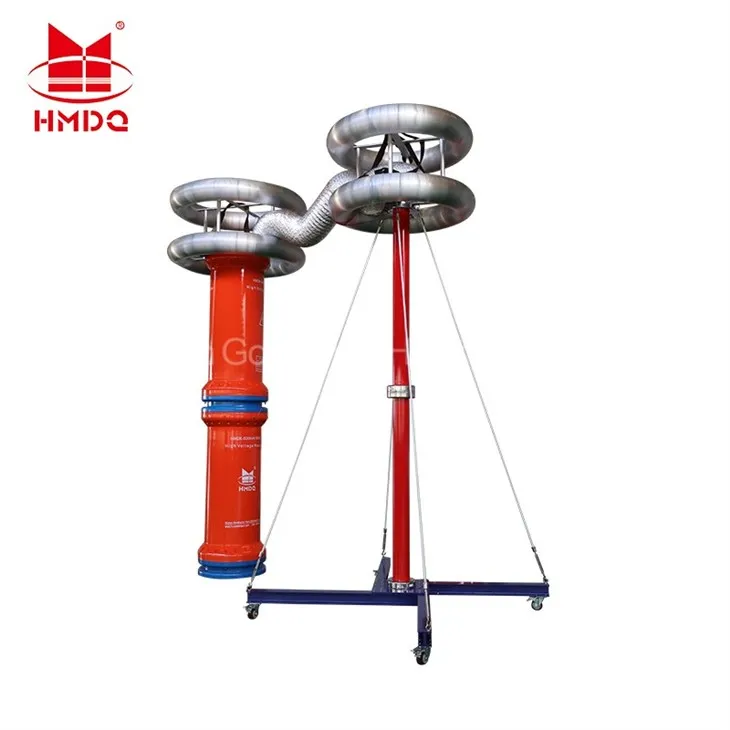

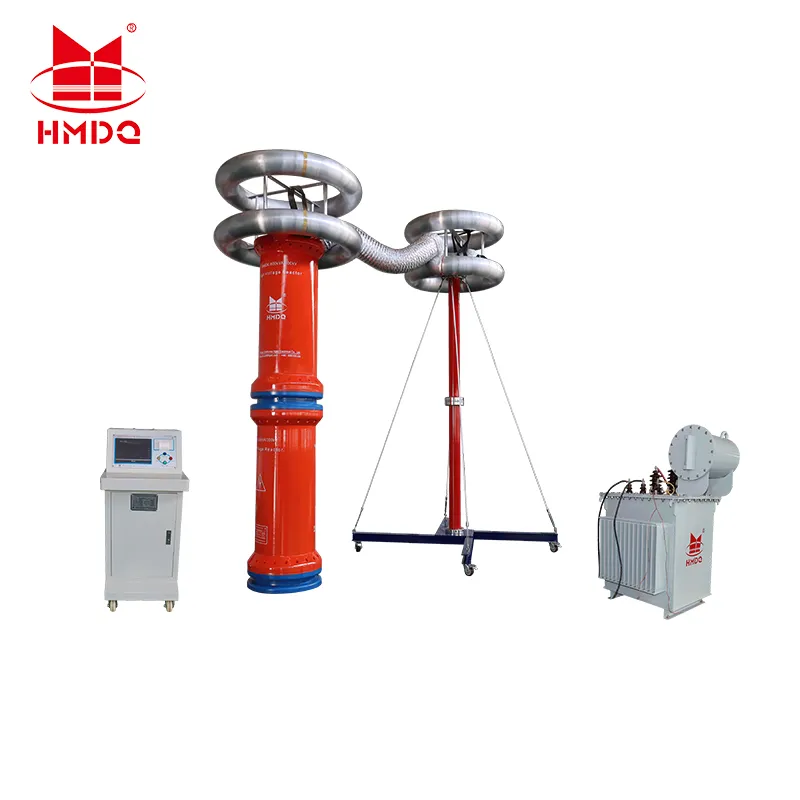

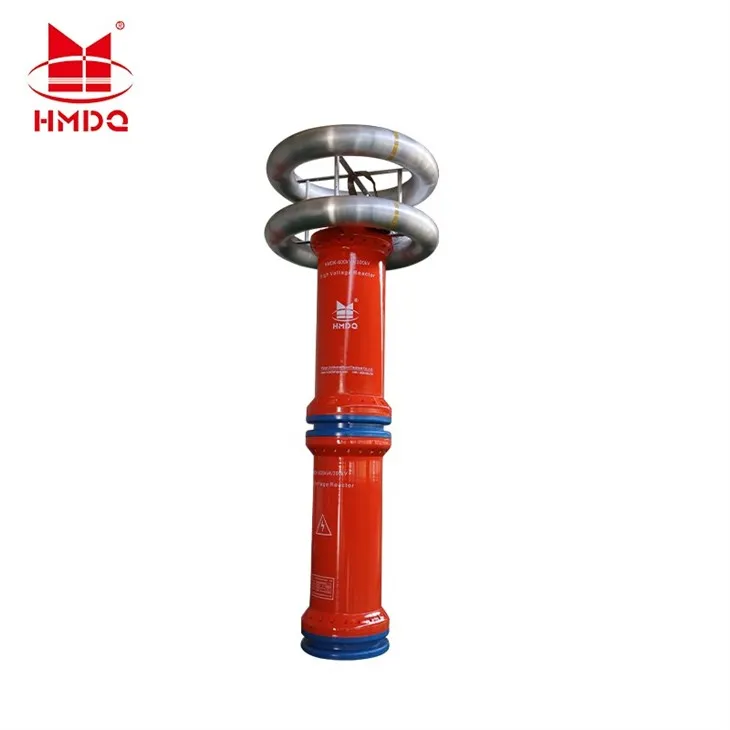

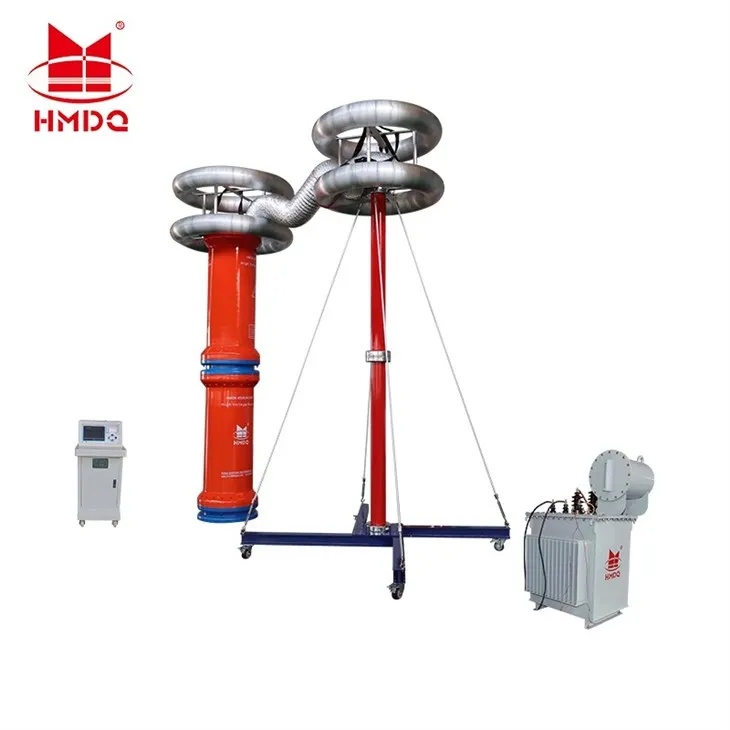

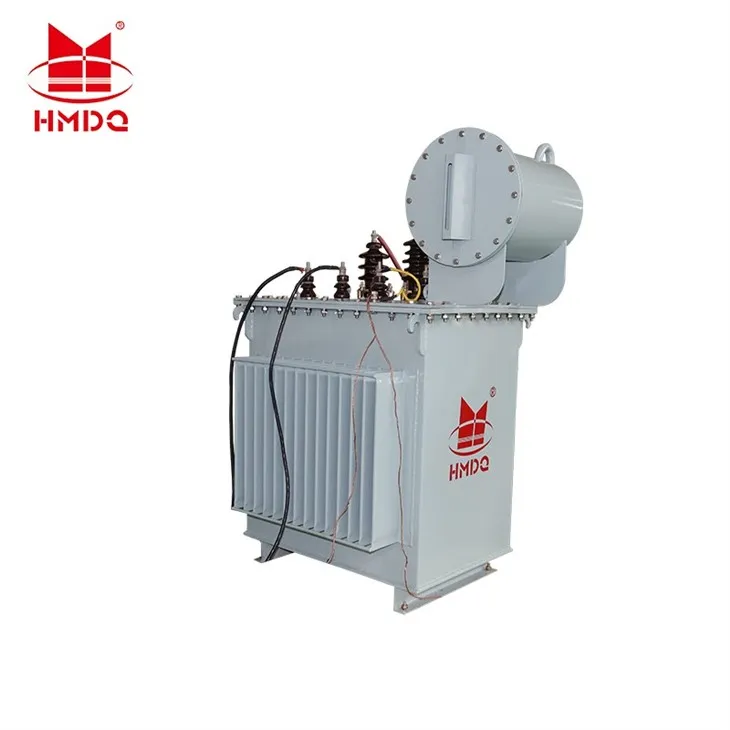

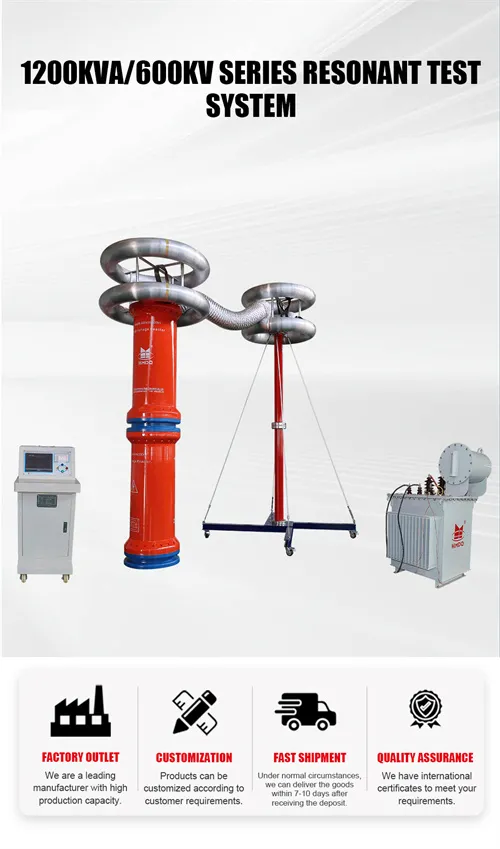

The fourth-generation HMCXZ-1200kV/600kV AC withstand voltage resonant test system is designed for AC withstand voltage testing of primary power system equipment, including 220 kV and 420 kV power transformers, busbar switches, GIS, and insulators. The system features a modular design with multiple reactors, enabling it to meet the testing requirements for equipment operating at high voltages and low currents.
Features & Advantages
- Rated Capacity 1200 kVA
- Rated Voltage 600 kV
- Rated Current 2 A
- Input Power Three-phase 380 V, 50 Hz
- Operating Frequency 30–300 Hz
- Output Voltage Distortion ≤1%
- Continuous Operating Time at Rated Load 60 min
- Temperature Rise (after 60 min) ≤65K
- Quality Factor (Intrinsic Q) ≥30 (f=45Hz)
- Measurement Accuracy System RMS Class 1.5
- Protection Functions Overcurrent, overvoltage, and test specimen flashover protection
- Ambient Temperature -15°C ~ 45°C
- Relative Humidity ≤90%RH
- Altitude ≤2500 meter
FAQs
Q: What are the requirements for the input power supply? Is 380V the only option?
A: The fourth-generation unit is not limited by the input power supply; both 220V and 380V can be used as the operating power source for the equipment.
Q: Does the system support remote control?
A: When testing non-capacitive specimens, the capacitive voltage divider also functions as a resonant capacitor.
Q: What is the measurement accuracy and waveform quality?
A: The system has a measurement accuracy of Class 1.5, with a voltage measurement accuracy of 0.5% for the variable-frequency power supply; the output voltage waveform distortion rate is ≤1%.

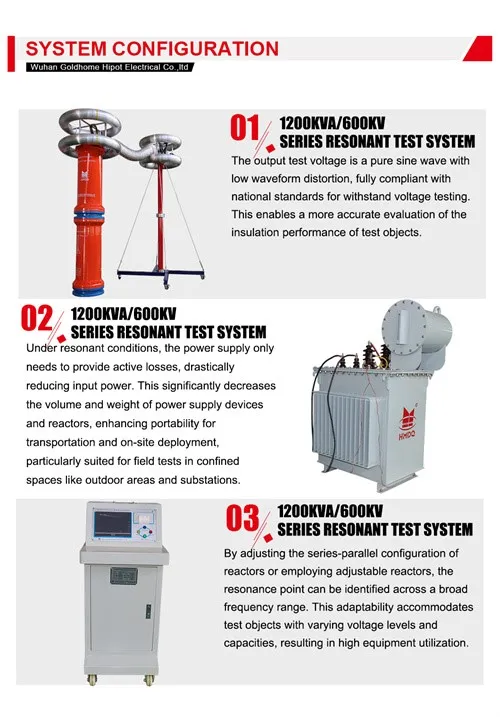

Products Details
