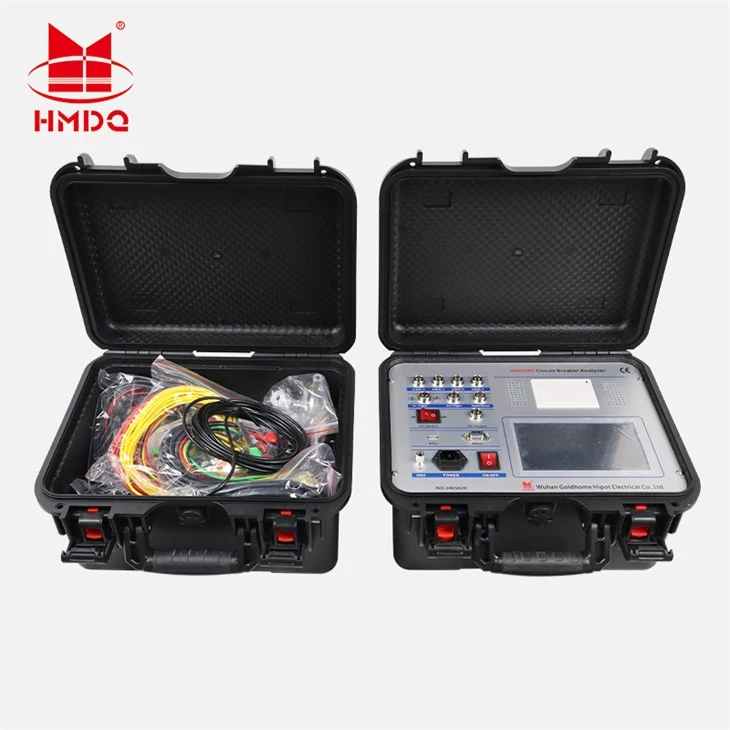

The HM6080 High-Voltage Switch Comprehensive Characteristics Tester, also known as a mechanical characteristics tester, is designed in accordance with the latest edition of the "High-Voltage AC Circuit Breakers" standard (GB1984-2003), with reference to Part 3 of the Chinese power industry standard "General Technical Specifications for High-Voltage Test Equipment," and in compliance with DL/T846. 3-2004. It is used to test the mechanical dynamic characteristic parameters of high-voltage circuit breakers under various operating conditions, including oil-deficient, oil-overflow, vacuum, and sulfur hexafluoride (SF6) environments, to meet the testing requirements for various types of circuit breakers.

1. velocity measurement : instant separating (instant closing) velocity

Appointed time slot( stroke segment or angle segment) average

velocity

2. velocity measurement range: 0.1mm sensor 0.01～20.00m/s,

345°angle sensor 1 cycle/ 0.01°

3. Travel measurement: Travel of moving contact (travel)

• Contact stroke (open distance)
• Over travel
• Overshoot or rebound stroke

4. Measuring range: linear sensor: 50mm, measuring range: 0-50mm, resolution :0.1mm.

Optional 100-1000mm linear sensor of any length.

Encoder: 345° Rotate sensor, measurement

range: 0-1000mm, resolution :0.1^о.

5. Current resistance range: the maximum current 30 A, resolution: 0.01 A, 1000 Ω resistance, resolution: 0.01 Ω.

6. Instrument power supply: AC 220V ± 10%; 50 hz plus or minus 10%

7. Dc power output: continuously adjustable DC20 ~ 270V, DC220V≤20A (short time), Power: 4400W.

8. External trigger voltage: AC/DC10-300V, current ≤120A

9. disconnecting switch measurement range

(1) Voltage output: DC20～270V(adjustable)

(2) Current output time: 0.01~10 s (settable)

(3) Fracture signal maximum acquisition time: 10s

(4) Measurable fracture closing, separation time, three-phase a synchronism , bounce time and frequency .

10. mainframe volume : 360×260×170mm

11. operating environment: -20℃~+50℃

12. relative humidity: ≤90%
