Wuhan Goldhome Hipot Electrical Co., Ltd. is one of the leading manufacturers and suppliers of closed flash point analyzer in China. With abundant experience, our factory offer high quality customized products made in China with competitive price. Welcome to contact us for quotation.
Products Video
HM501 Automatic Closed Cup Flash Point Tester Operation Video
Product Overview & Application Scenarios

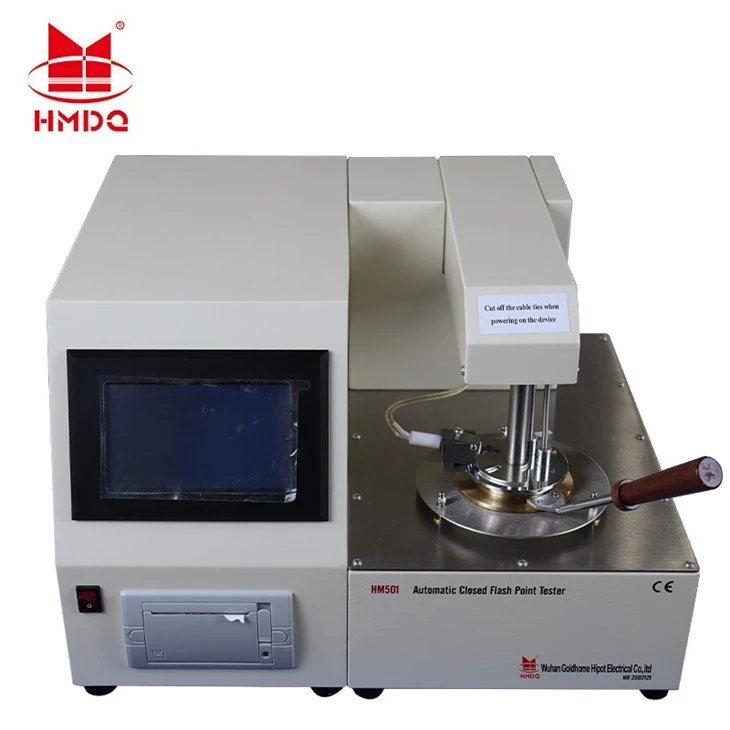

HM501 Closed Cup Flash Point Tester, designed to determine the closed cup flash point of petroleum products. Featuring advanced international technology, it incorporates a pure-color LCD TET touchscreen with a fully Chinese-language human-machine interface. Parameters such as preset temperature, test oil grade, atmospheric pressure, and test date are input via menu prompts for convenience and efficiency. Equipped with open-architecture fuzzy control integrated software and a modular structure, it is widely used in railways, aviation, power generation, petroleum industries, and research institutions.
Technical Specifications
|
1 |
Temperature measurement: |
50～200℃ |
|
2 |
Repetitive |
≤2℃ |
|
3 |
Reproducibility |
≤±4℃ |
|
4 |
Resolution |
0.1℃ |
|
5 |
Precision |
0.5％ |
|
6 |
The environment temperature |
10-40℃ |
|
7 |
Relative humidity |
≤85％ |
|
8 |
The power supply voltage |
AC220V 50Hz±5% |
|
9 |
Ignition way |
Electronic ignition |
|
10 |
power |
＜300W |
| 11 | Net Wieght | 18KG |
| 12 | Dimension | 280*260*285mm |
| 13 | Ignition method: | Electric ignition, gas (town gas or butane) |
| 14 | Detection method | High-sensitivity temperature/photosensitive sensor |
Key Features & Advantages
1. Capable of modifying English software prompts;
2. Equipped with display functions for test date, test time, and other parameters;
3. Automatically performs atmospheric pressure compensation and calculates compensation values during testing;
4. Differential detection with automatic system deviation correction;
5. Automatically completes cover plate opening, ignition, detection, and data printing;
6. Automatic test arm elevation;
7. Ignition method: Electronic ignition
Structure Overview
1.Front View of External Structure:
2.Rear view of exterior structure:
3.Tracheal connection method:
Remove the gas cylinder and connect it using the dedicated cylinder connector, as shown below:
The cylinder connector in the illustration allows adjustment of gas flow rate.
Product Pictures
