HM501 Automatic Closed Cup Flash Point Tester Operation Video
Product Overview & Application Scenarios

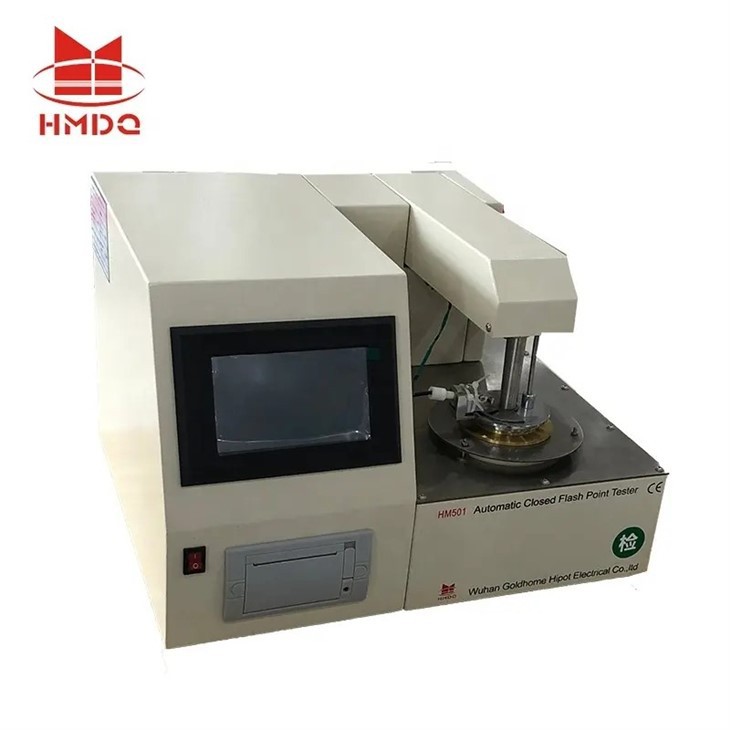

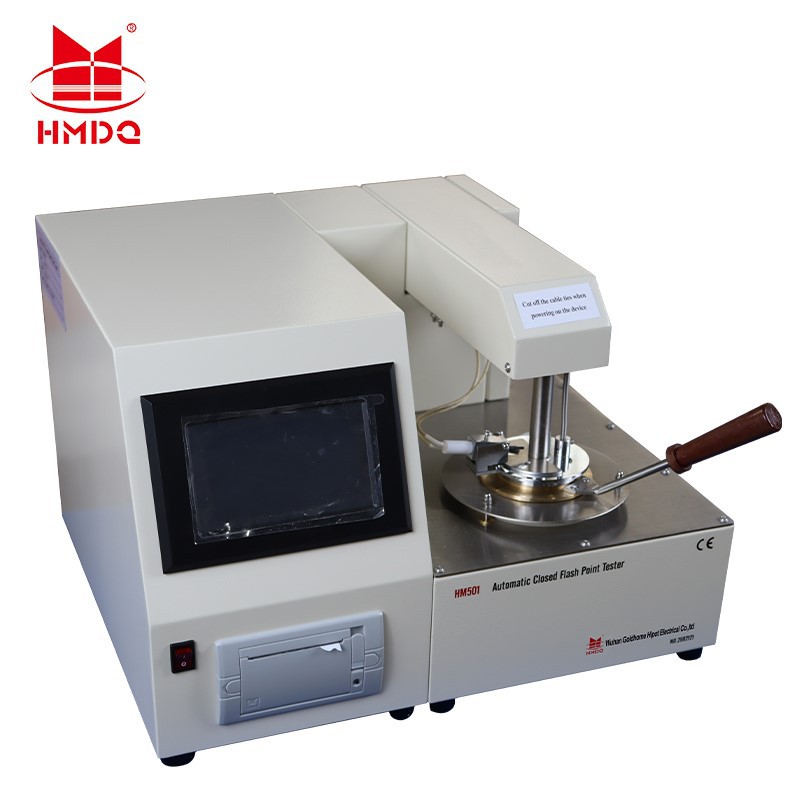

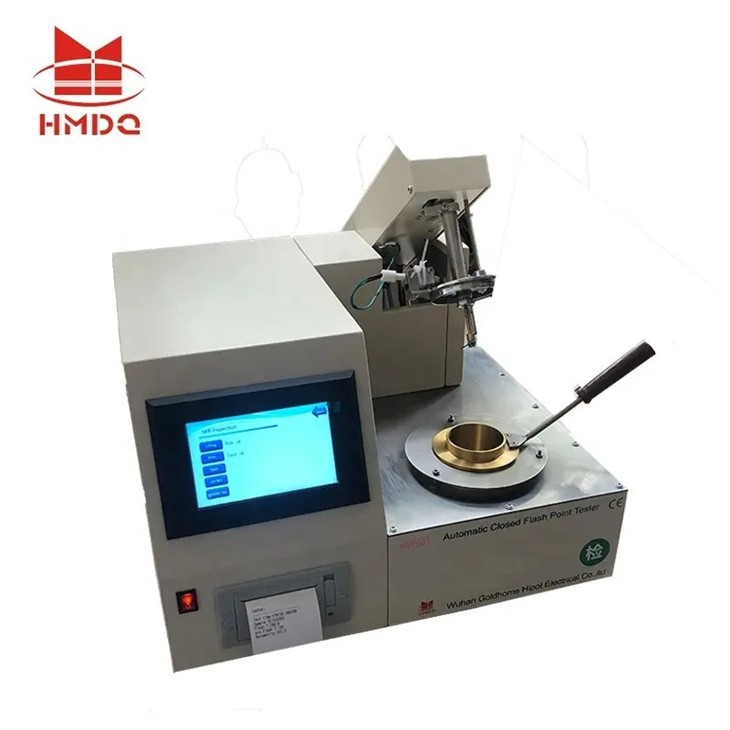

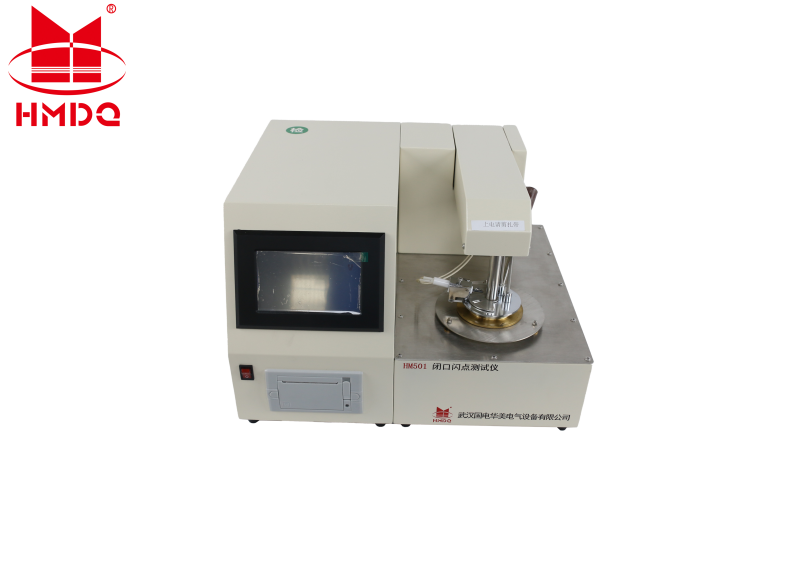

HM501 Closed Cup Flash Point Tester,Used to measure closed flash point of petroleum products. Using foreign advanced technology,Pure colour touchscreen LCD TET,Fully display the man-machine dialogue interface in Chinese,The value is can forecast the temperature, Test label, Atmospheric pressure, Parameters such as test dates,With tooltips menu type input, Convenient and quick, open, Fuzzy control integration software, Modular structure,In line with the GB/T261-2008 and GB/T261-83 standard.Is the ideal substitute products imported instrument. Widely used in railway, aviation, Electric power,The oil industry and scientific research departments, etc.
Technical Specifications
|
1 |
Temperature measurement: |
50～200℃ |
|
2 |
Repetitive |
≤2℃ |
|
3 |
Reproducibility |
≤±4℃ |
|
4 |
Resolution |
0.1℃ |
|
5 |
Precision |
0.5％ |
|
6 |
The environment temperature |
10-40℃ |
|
7 |
Relative humidity |
≤85％ |
|
8 |
The power supply voltage |
AC220V 50Hz±5% |
|
9 |
Ignition way |
Electronic ignition |
|
10 |
power |
＜300W |
| 11 | Net Wieght | 18KG |
| 12 | Dimension | 280*260*285mm |
| 13 | Ignition method: | Electric ignition, gas (town gas or butane) |
| 14 | Detection method | High-sensitivity temperature/photosensitive sensor |
Key Features & Advantages
1. Capable of modifying English software prompts;
2. Equipped with display functions for test date, test time, and other parameters;
3. Automatically performs atmospheric pressure compensation and calculates compensation values during testing;
4. Differential detection with automatic system deviation correction;
5. Automatically completes cover plate opening, ignition, detection, and data printing;
6. Automatic test arm elevation;
7. Ignition method: Electronic ignition
Method of use and operation steps
1,Instrument installation：
(1)Open the instrument packaging,Check whether there is any damage on the instrument;
(2)According to the packing list check instrument and accessories;
(3)Check the instrument can be flawless before the debugging of the instrument.
2,Machine starts to prepare：
(1)Insert the power cord AC220V three-core socket;
(2)Test oil cup wash clean with petroleum ether.
3,Test steps：
(1)Open the power switch,Screen display picture;As shown in figure 2
Figure 2

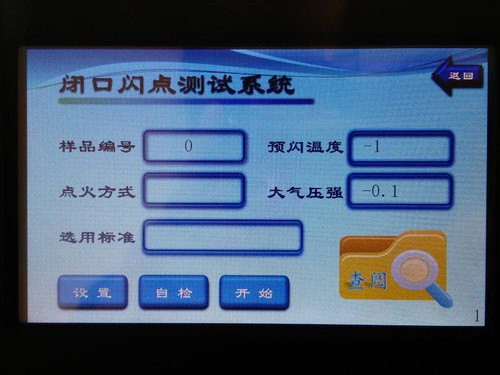

(2)Press (PLAY) into the system,Screen display picture;As shown in figure 3
Figure 3

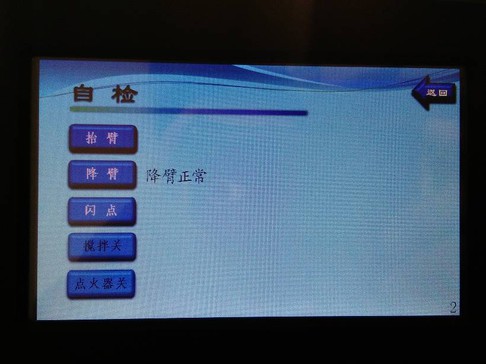

(3)Press (self),The introspection into the interface;As shown in figure 4,Press (lift arm),The lifting arm up to limit height automatically stop.
Figure 4

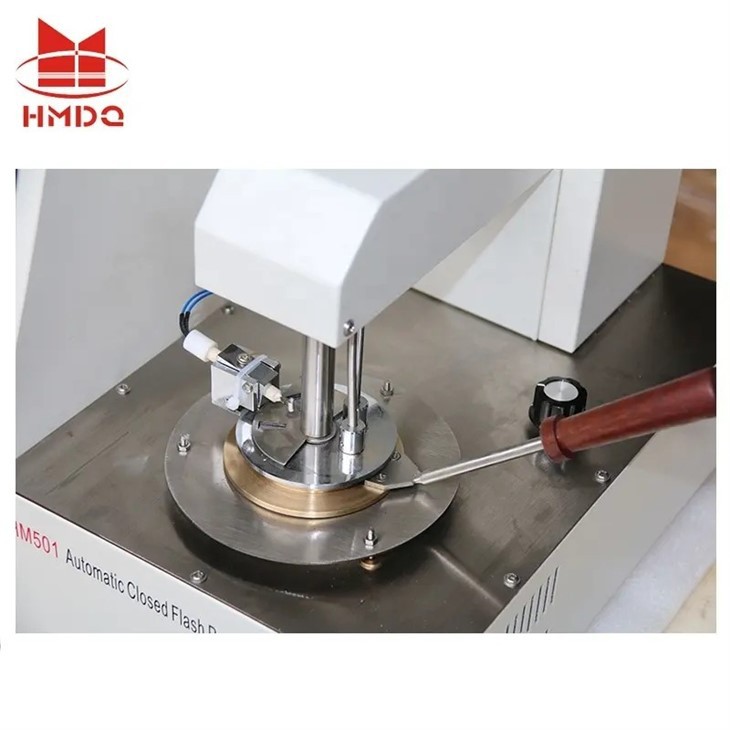

(4)After the test sample into cleaning the oil cup to the provisions of the scale,In the heating bath set inside,Then press (arm),Arm down to the lower limit of a automatic stop.
(5)According to the requirements in figure 3, in turn, enter the fire temperature,Oil no,Air pressure,Standard parameters such as;
(6)Ignition way for：Electric ignition.

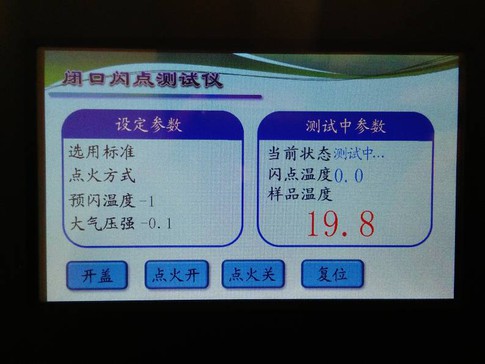

(7)Under the system interface press (start),Enter the experiment began,As shown in figure 5:
Figure 5
(8)When flash fire occur sample instrument automatic locking flash point temperature,Electric ignition automatically shut down.
(9)According to different regional altitude test results with relative error,Atmospheric pressure value input area,Can automatic correction to test the effect of atmospheric pressure and calculate the revised,Correct pressure value.Refer to the standard GB/T261-83 or GB/T261-2008 standard.
(10)Automatic test press < open > at this point in the process of instrument open ignition time (debug view) can check sample values of flash fire,To check whether the set temperature is moderate.

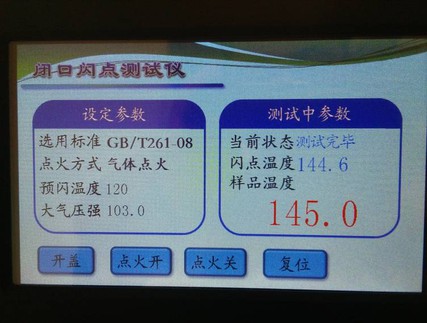

(11)When reach the flash point value capture automatically when the flash point,LCD screen to lock the current temperature value,And automatic storage related content as shown in figure 6:
Figure 6
(12)Press the print key into the interface of figure 7:
Figure 7
Output according to the < > button to print the current content;According to the page on < > < page 2 > for record,Press < return > to return to the interface of boot.
Matters needing attention
1,Instruments should be used in the absence of corrosion environment;
2,Replacing sample,Oil cup must be washed;
3,Do not manually force to press the up (down) key,So as not to damage the lifting mechanism;
4,Launch the instrument temperature banned oil free condition,In order to avoid damage to the furnace and heating systems.
