Product Overview & Applications

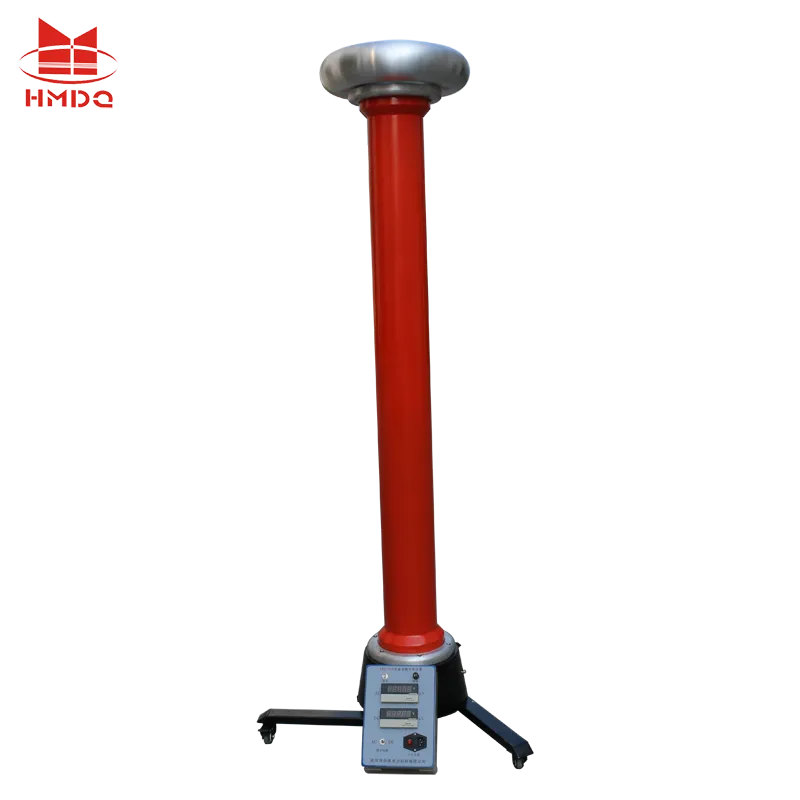

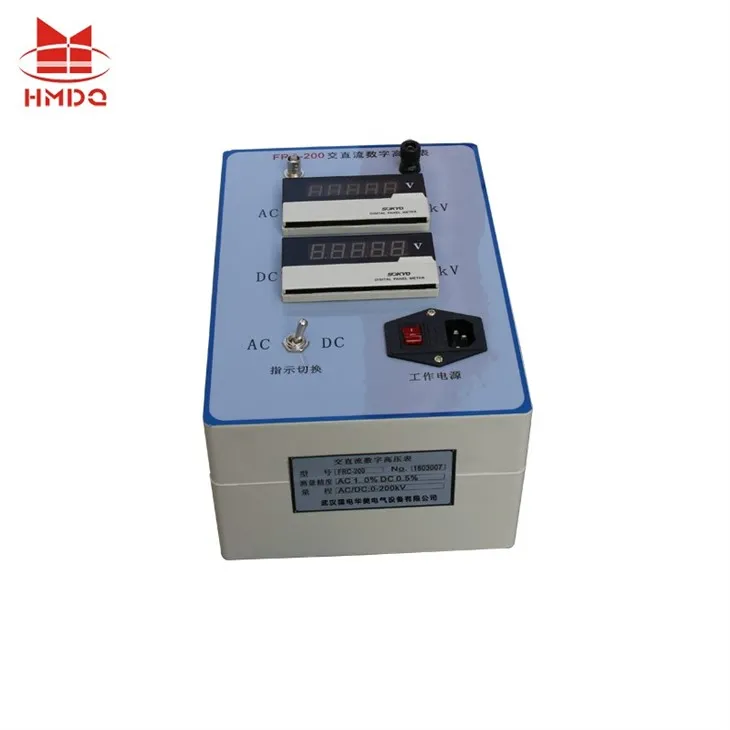

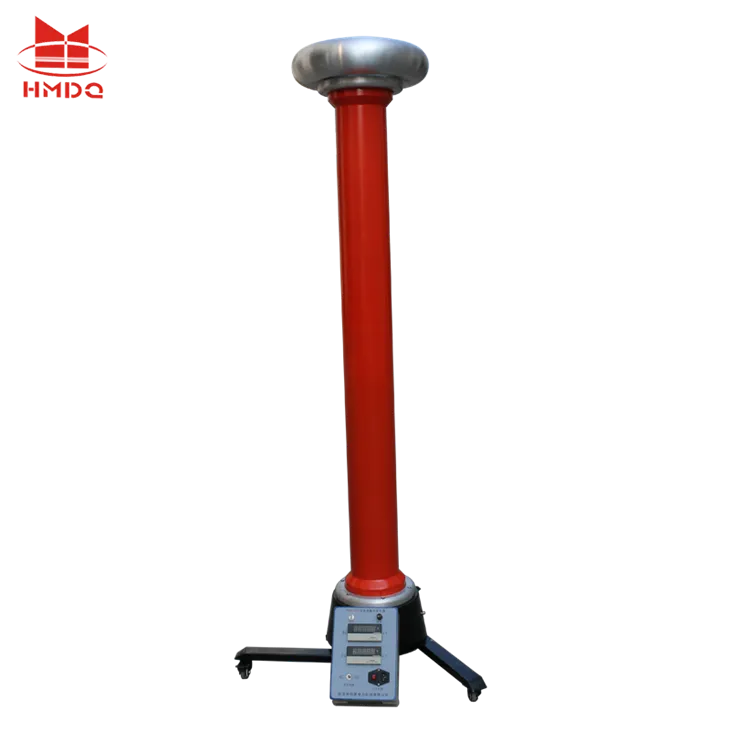

The HMFRC series AC/DC voltage dividers are equipped with a dedicated, high-precision 3½-digit digital display. Connected to the voltage divider via instrument leads, this display enables clear remote readings, ensuring safe and convenient operation. The instrument features high input impedance, minimizing the impact on the high-voltage power supply output. It can be easily disassembled and stored in its carrying case, making it portable and easy to transport-a convenient solution for on-site testing.
Technical Parameters
|
Model Specification |
Measure Vlotage Range KV |
Voltage Divider Impedance MΩ |
Dimension (mm) |
Weight (kg) |
|
|
Divider |
Box |
||||
|
HMFRC-50 |
AC-50 DC-70 |
200 |
Ф76×450 |
220×220×600 |
8 |
|
HMFRC-100 |
AC-100 DC-140 |
400 |
Ф76×600 |
220×220×750 |
10 |
|
HMFRC-150 |
AC-150 DC-200 |
600 |
Ф76×800 |
220×220×1100 |
15 |
|
HMFRC-200 |
AC-200 DC-250 |
800 |
Ф76×1100 |
220×220×1400 |
18 |
|
HMFRC-300 |
AC-300 DC-400 |
1200 |
Ф76×1500 |
220×220×1800 |
25 |
Problems and Solutions
|
Problem |
Solution |
|
After starting up, no respond and LCD no display. |
Replace the battery |
|
Test results are too much deviation. |
Check whether the coaxial cable is well connected. |
|
There is more obvious discharge sound when measuring. |
Check whether the ground is good. |
|
HV divider may be damp, PLEASE wipe the shell with a dry cloth and then blow it for five minutes with blower. |
