Product overview

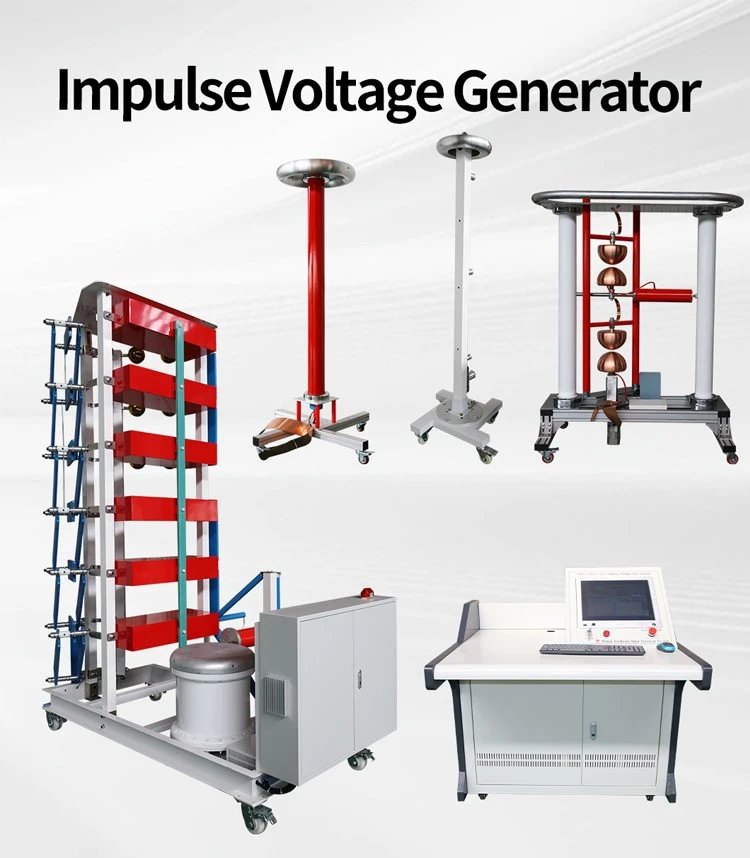

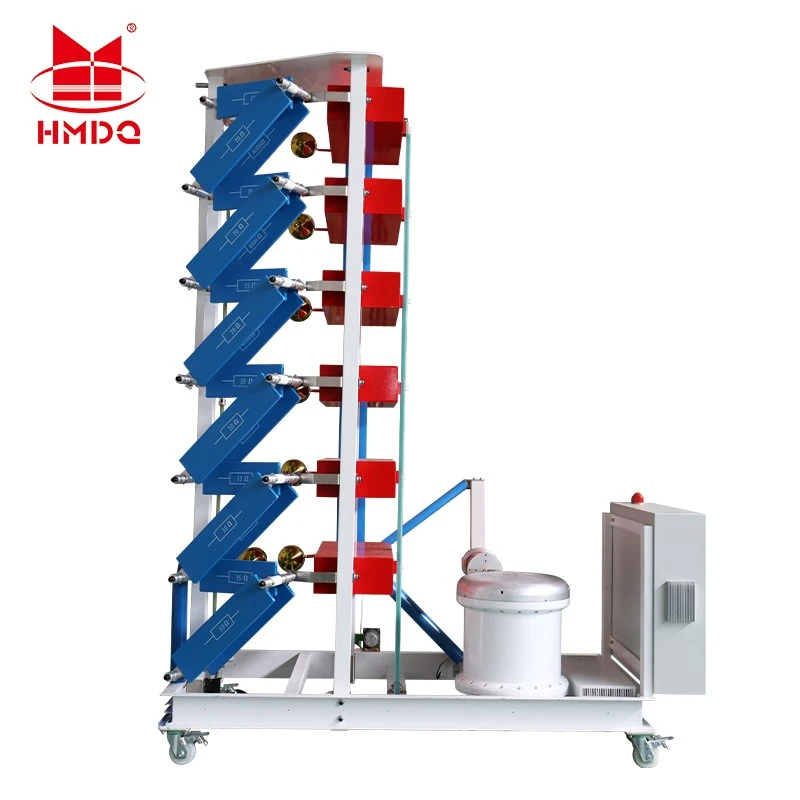

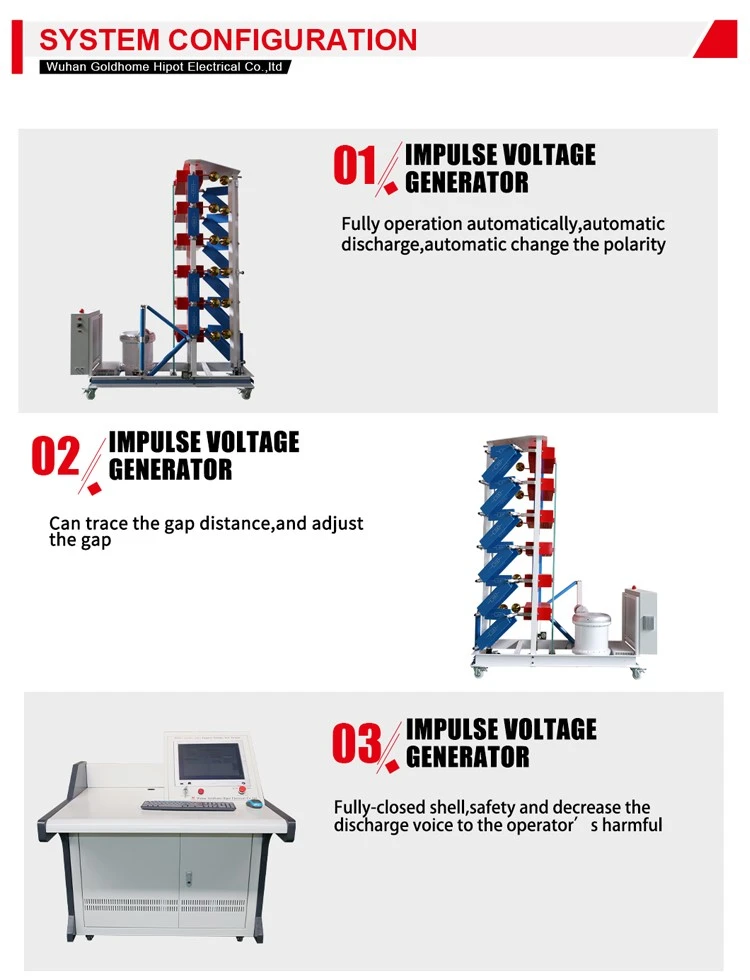

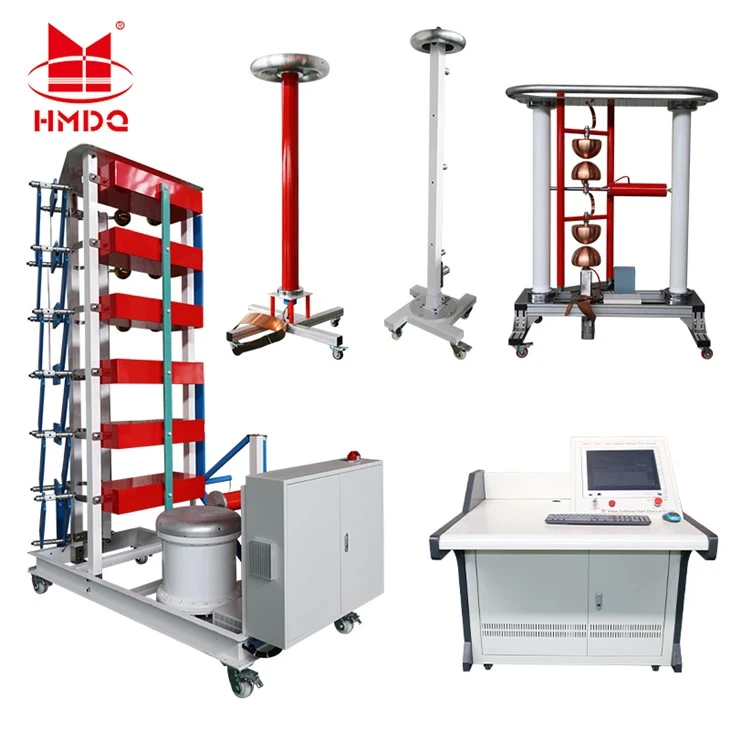

HMCJ-600kV/60kJ Impulse Voltage Generator is suitable to test power transformer according to IEEE standard C57. 12.90 .
Usage Condition
- Location height over sea level ≤1000m
- Environment temperature：-15℃～+45℃,
- Relative humidity:≤90％
- Maximum daily temperature difference: 25℃
- Usage Environment : Indoor
- Non-Conduct dust
- Non-fire, non-explosive material danger
- Non-corrosive air, steam and round with insulated air
- Non-crash, non-vibration
- Earthquake resistance:≤8 magnitude
- With a reliable earth point, earth net should have a good impulse–proof characteristic, the earth resistance should within 0.5W,.
- The waveform of the power supply shall be real sine wave, and the waveform distortion rate is <5%
Products Parameters
|
Nominal voltage |
±600kV |
|
Rated voltage per stage |
±100kV |
|
Rated Charging Voltage |
±100kV |
|
Nominal energy |
60kJ |
|
Rated impact capacitance：0.333mF |
|
|
Total Stages |
6 |
|
Capacitance per stage |
2.0mF |
|
Energy per stage |
10kJ |
|
Impulse voltage waveform parameters |
|
|
Standard lightning impulse voltage full wave: T1=1.2ms±30% , T2=50ms±20% |
|
|
Chopped waveform time ：2～6ms |
|

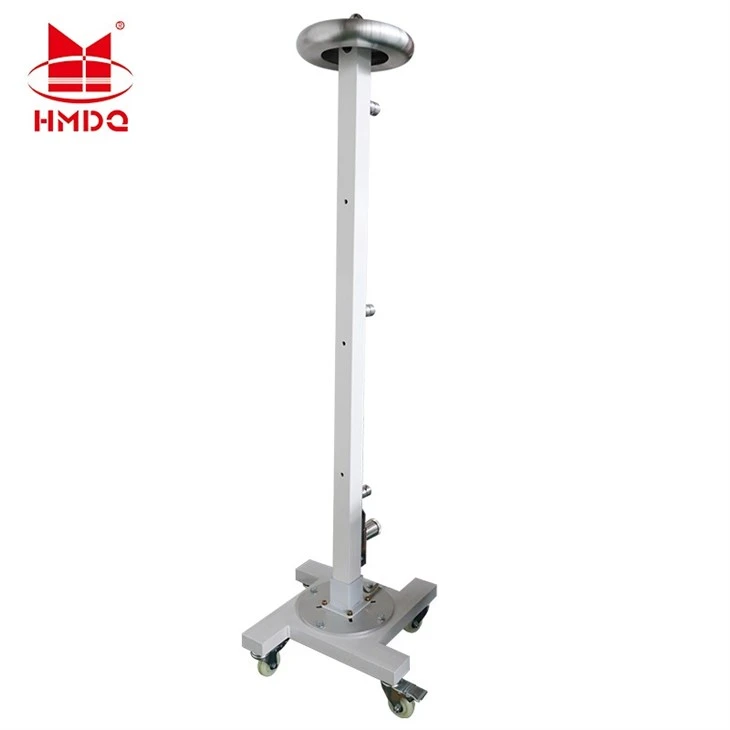

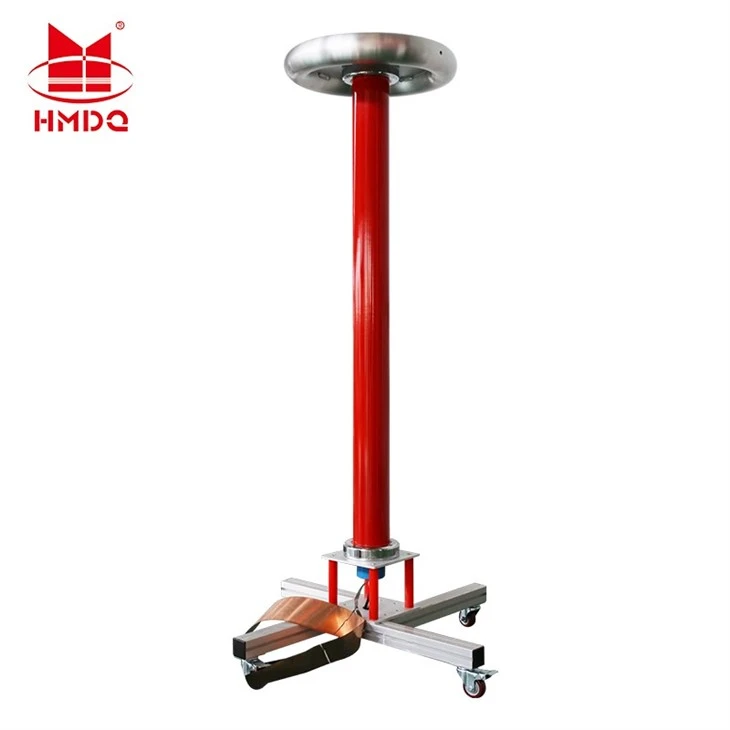

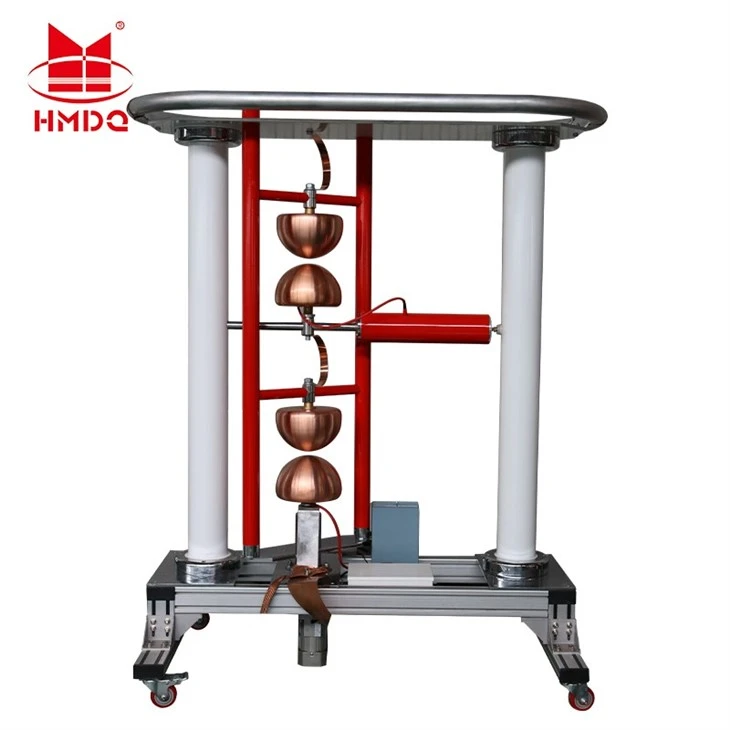

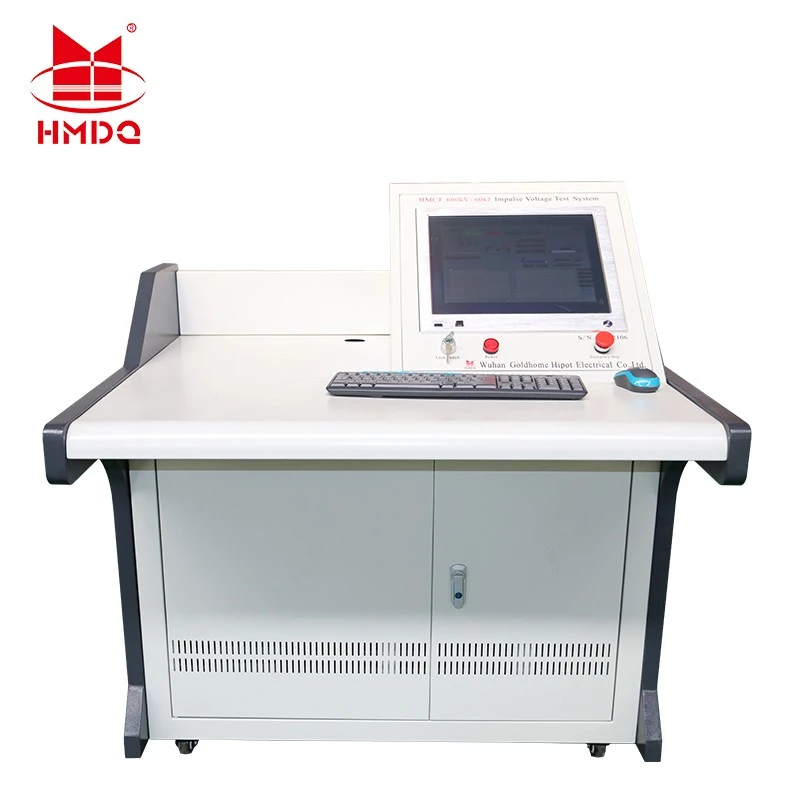

Product Images
