Product Overview

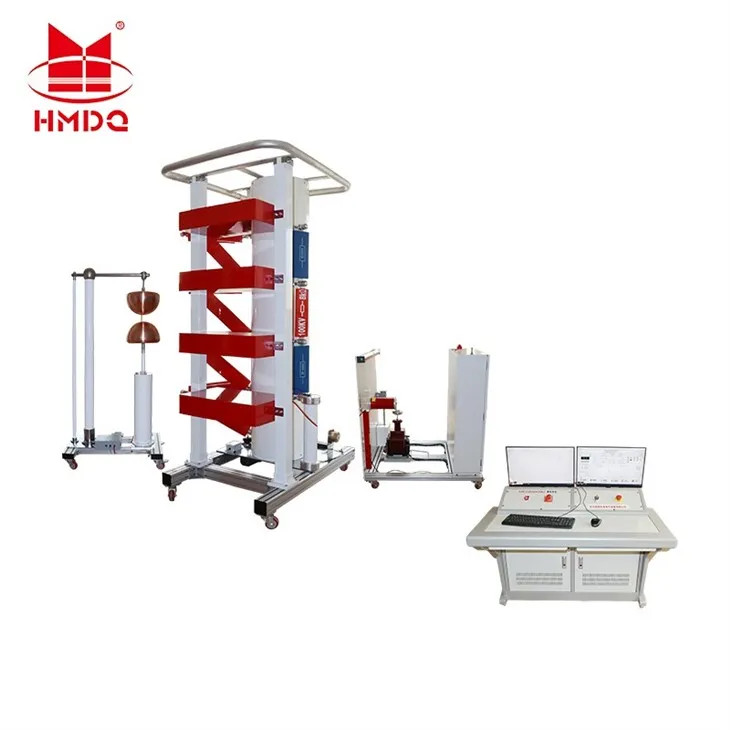

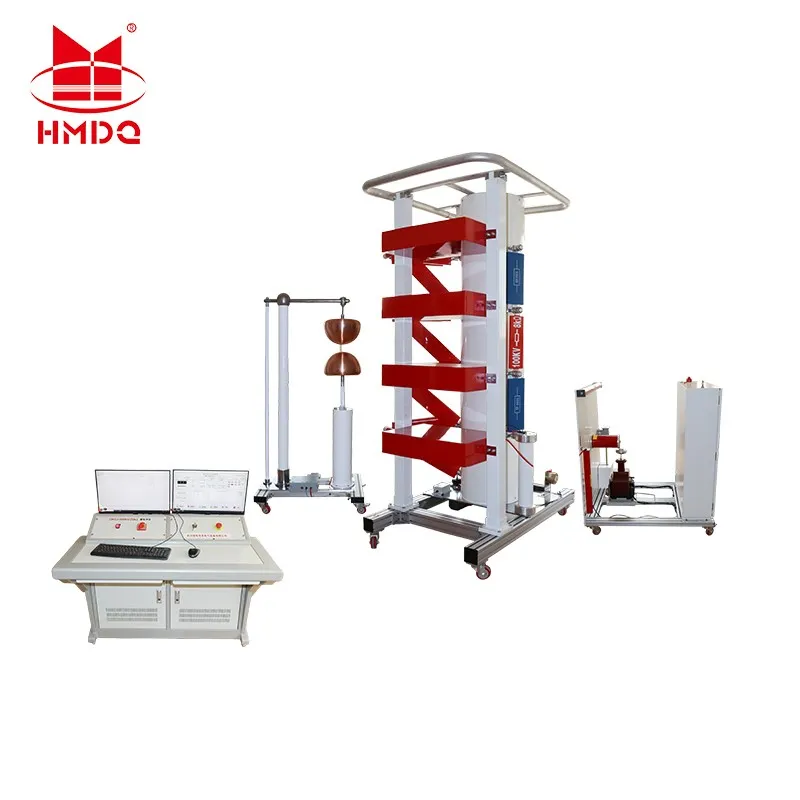

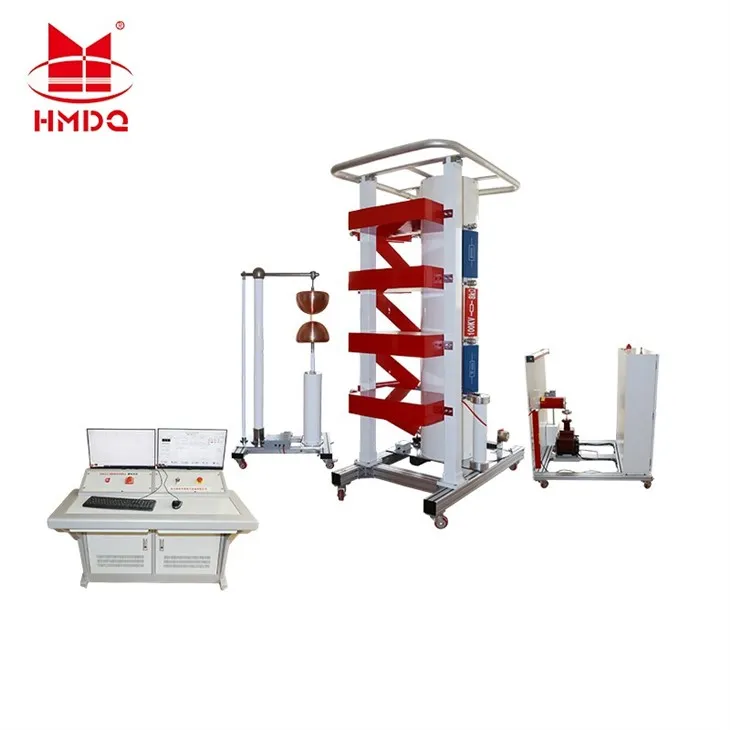

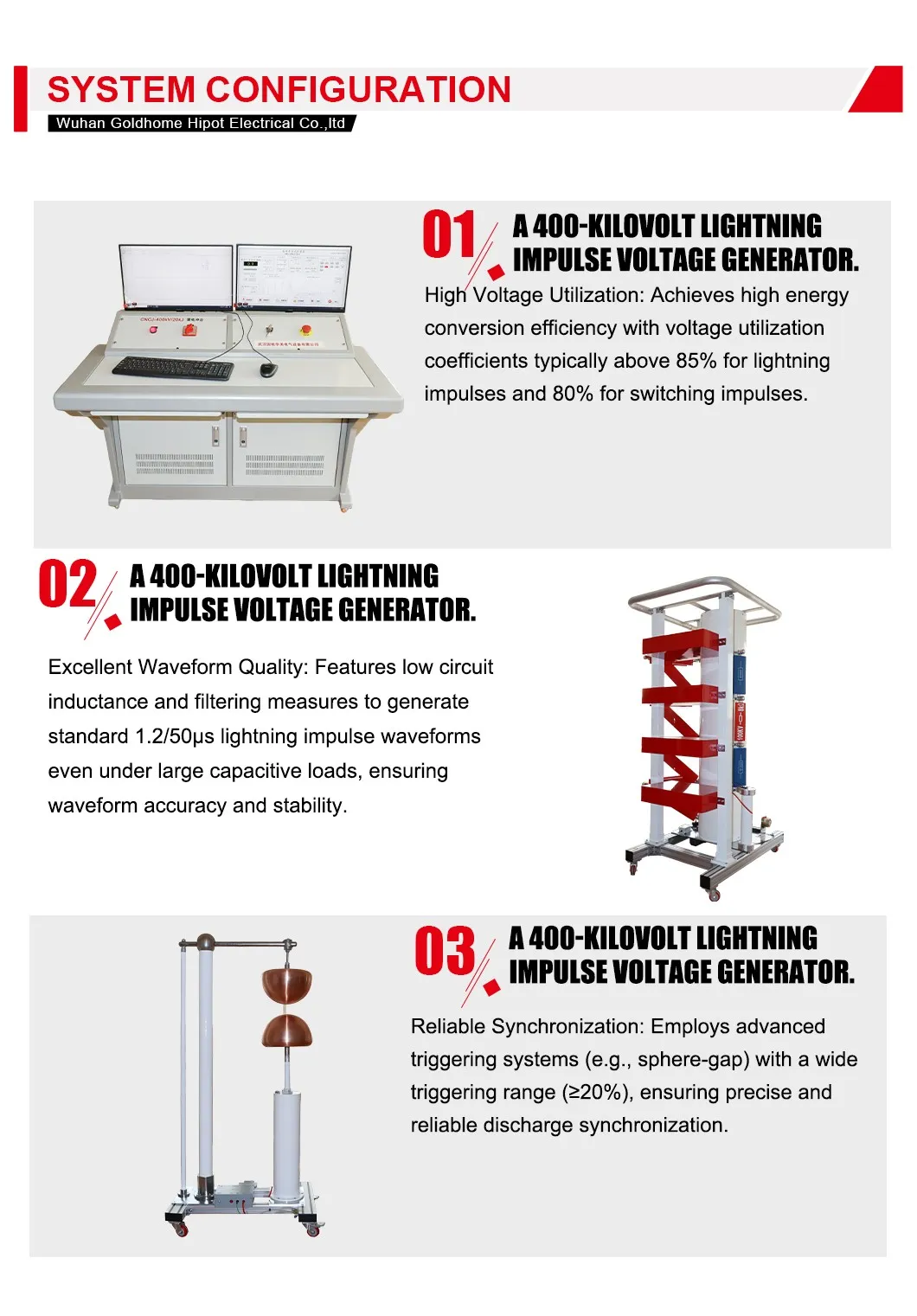

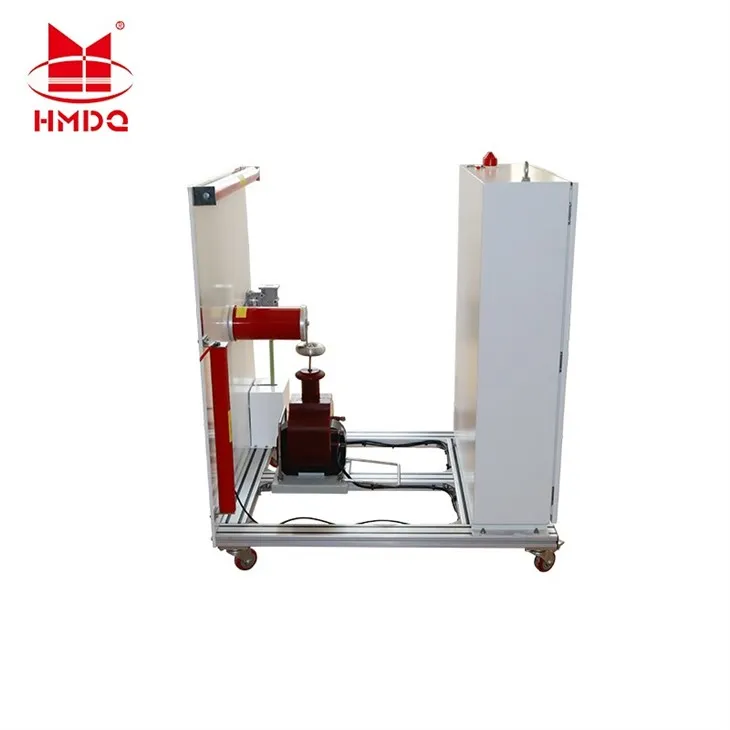

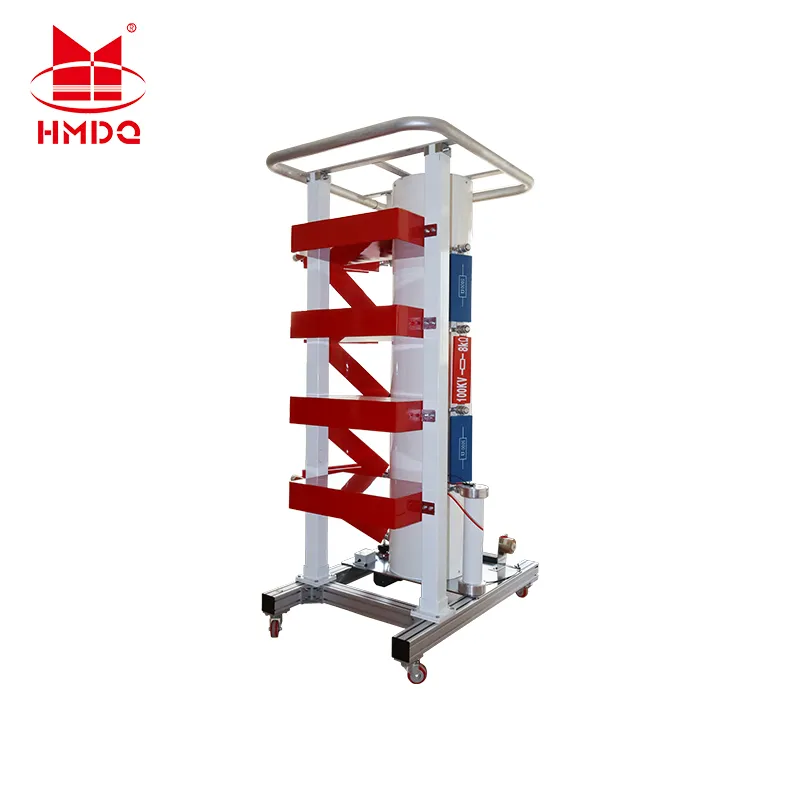

The HMCJ-400kV/20kJ lightning impulse generator is used to generate impulse voltage waves for testing the insulation performance of power equipment against atmospheric and operational overvoltages. It can generate standard lightning impulse voltage waveforms (1.2/50 μs), operational impulse voltage waveforms, and user-specified non-standard impulse voltage waveforms (including steep-front waves).
Parameter Description
- Rated voltage: ±400KV
- Voltage class rating: ±100KV
- Rated energy: 20KJ
- Rated voltage 100 kV
- Maximum charging current 5 A
- Output voltage waveform ±1.2/50 μs lightning impulse voltage full wave (at different rated voltages and under a fixed load capacitance)
- Voltage utilization factor Not less than 0.85 when generating a 1.2/50 μs wave
- Operating mode Above 2/3 of rated voltage: one charge-discharge cycle every 3 minutes, capable of continuous operation
- Below 2/3 of rated voltage: Charge and discharge once every 2 minutes; continuous operation possible
- Operating Altitude ≤1000 meters
- Ambient Temperature -20°C to +40°C
- Relative Humidity ≤85% (at 20°C)
- Ground Resistance ≤0.5Ω, single-point grounding
- Power Supply Requirements Sine wave, distortion rate <3%, 50 Hz

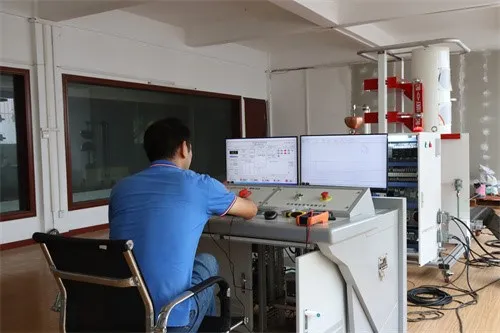

On-site Test Images
FAQs
Q: What are the requirements for the equipment's operating duration?
A: When operating at 2/3 or more of the rated voltage, the equipment can operate continuously with a charge-discharge cycle every 3 minutes.
Q: What is the minimum safety distance based on the rated voltage?
A:
400 kV → 3.5 meters
300 kV → 2.5 meters
200 kV → 1.5 meters
150 kV → 1.0 meter
100 kV → 0.8 meters
50 kV → 0.5 meters
Q: Can the equipment be used or stored outdoors?
A: Indoor models are strictly prohibited from being stored or used outdoors; the entire unit must not be used in environments with ice, standing water, snow, or fog.
