HM6065 CT PT Analyzer Operation Video
product Description

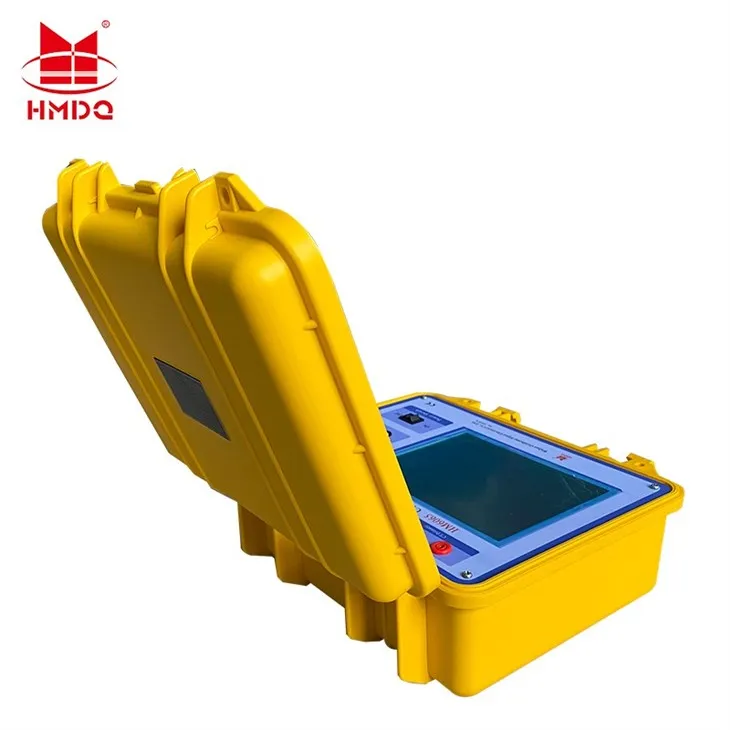

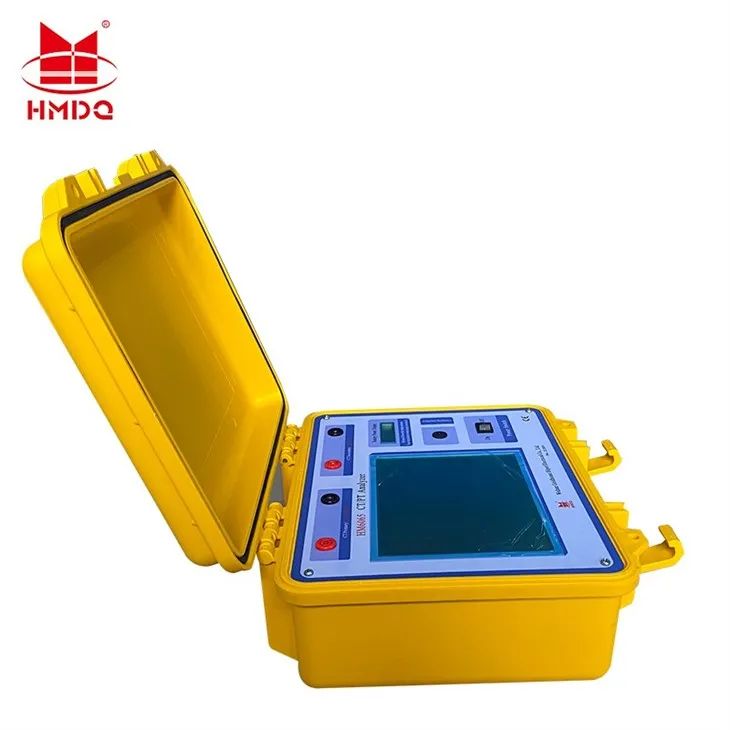

The HM6065 CT/PT Analyzer is a high-performance automated diagnostic system developed by Wuhan Goldhome Hipot Electrical Co., Ltd. specifically for the comprehensive testing of current transformers and voltage transformers. Widely recognized for its high precision and portable design, this device is the preferred choice for substation commissioning and preventive maintenance.
Core Features
- CT Testing:
Excitation Characteristics: Automatically plots V-A curves and identifies inflection points.
Turns Ratio and Polarity: Measures the turns ratio and verifies phase direction.
Error Evaluation: Calculates turns ratio error and phase shift (angular error) based on different loads.
Secondary Parameters: Measures secondary winding resistance and secondary load.
- Voltage Transformer Testing:
Performs excitation, turns ratio, polarity, and winding resistance tests on voltage transformers.
Transient Current Transformers: Tests TPY, TPX, and TPZ class transformers, measuring parameters such as residual magnetism and time constant.
