Product video
HM6030S Lightning Counter Test Video
Products overview

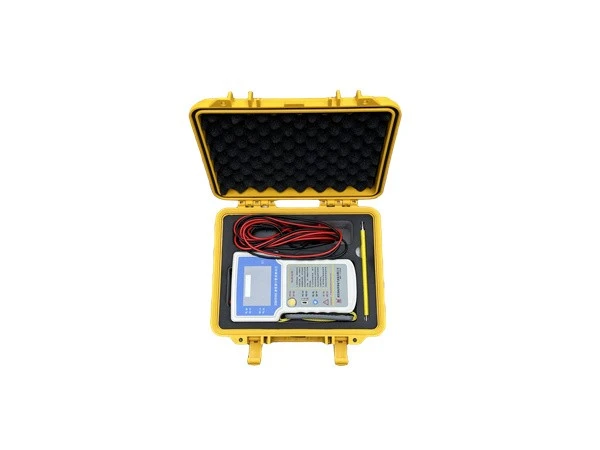

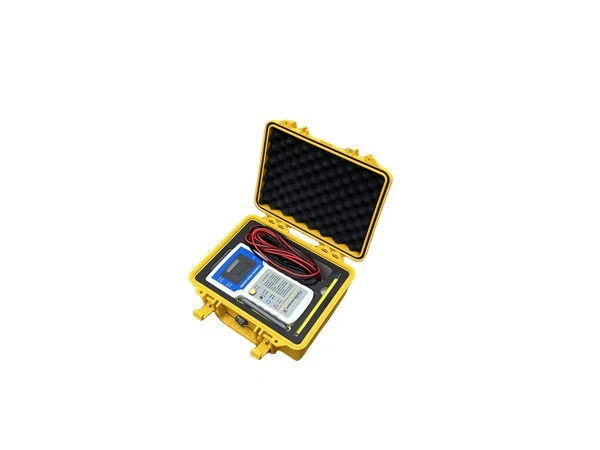

The HM6030S Lightning Strike Counter Tester is used to verify the reliability of the operation of various lightning arrester counters. It is primarily suitable for testing under various conditions, including power plants, substations, repair shops, and laboratories. This instrument features a handheld design with an attractive appearance; it weighs 1 kg and is easy to carry.
technical Parameters
| Output Voltage |
Adjustable from 200～1600V |
| Capacitance |
10uF |
| Discharge current | Greater than 100A, output surge current conforms to 8/20μs waveform |
| Operating power | Internal lithium battery pack |
| Battery capacity |
12V/3200mAH |
| Weight |
1Kg |
| Dimensions |
238mm×134mm×45mm |
Product Features
1) Test Principle: Uses the capacitance charging and discharging method, featuring short charging times and fast discharge rates.
2) Easy to Operate: The automatic test process is completed with a single button press; the interval between consecutive tests is adjustable from 3 to 8 seconds.
3) Adjustable Voltage: The high-voltage output is adjustable from 200 V to 1,600 V in 200 V increments, accommodating the trigger voltages of various counters.
4) Safe and Reliable: The instrument housing is made of ABS plastic, and the high-voltage output has no exposed metal parts, ensuring operator safety and preventing electric shock.
5) High Test Count: A single charge supports more than 2,000 consecutive operations.
6) Self-discharge function: After charging, if no test is performed, the high voltage is automatically released after two minutes.
7) Meets diverse needs: The instrument comes with a set of test leads and a telescoping rod, enabling it to accommodate various testing methods.
