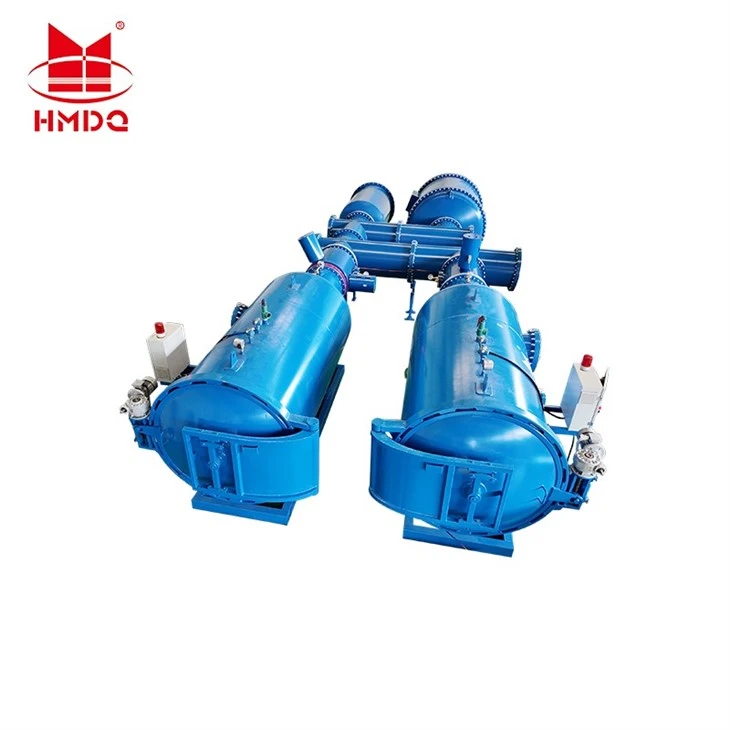

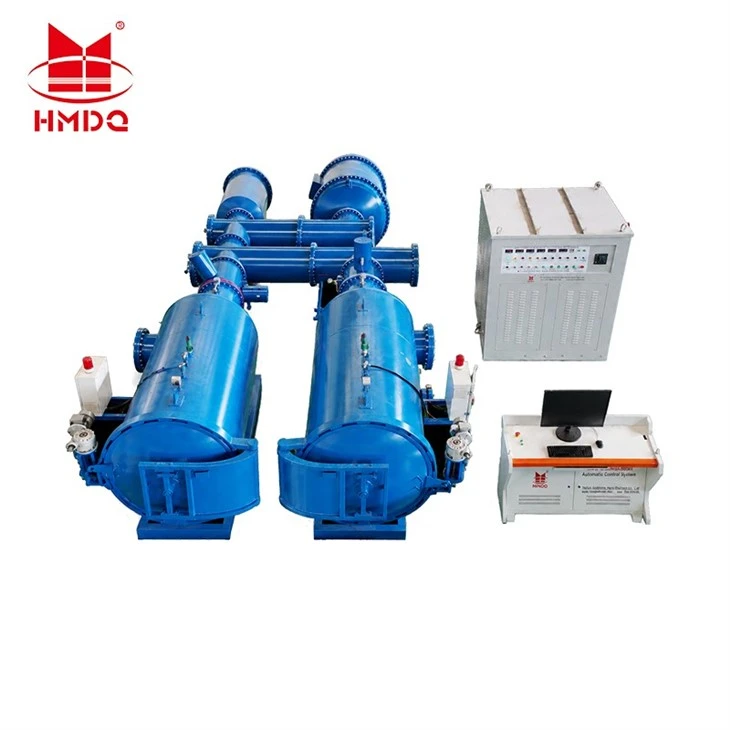

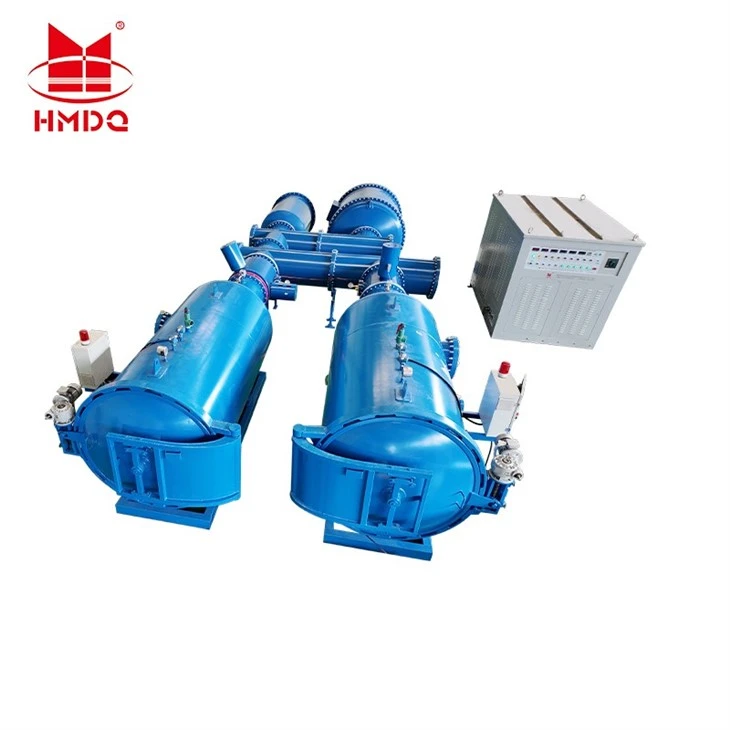

Products parameters
- High-Voltage Measuring Capacitor Rated： 800 kV, capacitance 50 pF, turns ratio 10,000:1, accuracy ±1%, partial discharge ≤2 pC, SF6 dielectric
- Coupling Capacitor Rated 800 kV, capacitance 1,000 pF, partial discharge ≤2 pC, SF6 dielectric
- Low-Voltage Compensation Reactor Rated 1.0 kV, compensation capacity 700 kVA, adjustment accuracy ±30 kvar, motor-driven switching, continuously adjustable
- Power Isolation Transformer 200 kVA, 0.4 kV/0.4 kV, partial discharge background ≤2 pC, insulation level 3 kV/1 min
- Voltage Regulator 200 kVA, 380 V two-phase input, 0–1000 V/200 A output, motor-driven voltage regulation
- Isolation Filter Model HM-GLB-800/800; 800 kVA, 1 kV/1 kV, 800 A/800 A; Filter attenuation: 40k–100kHz > 40dB, 100k–1MHz > 60dB; partial discharge < 2pC; dry-type natural cooling

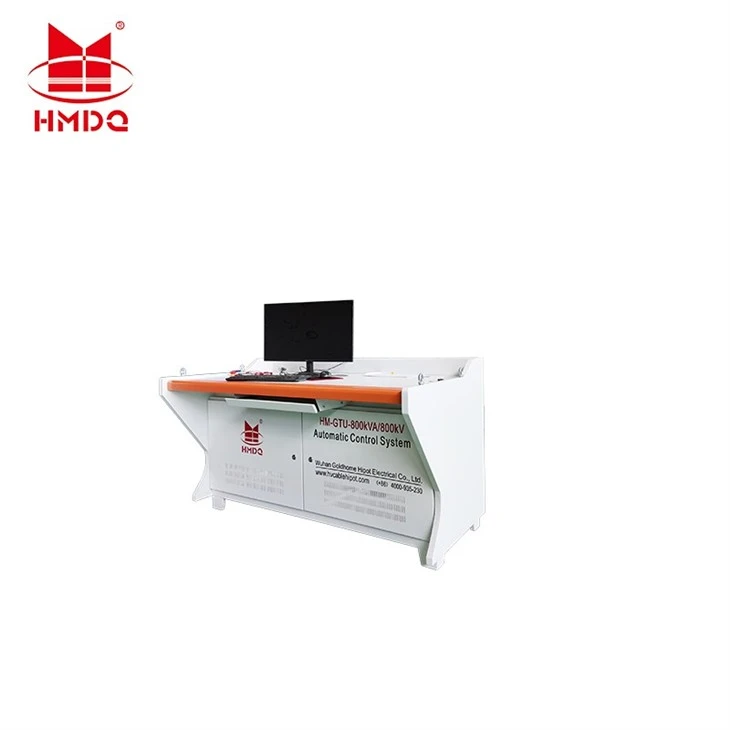

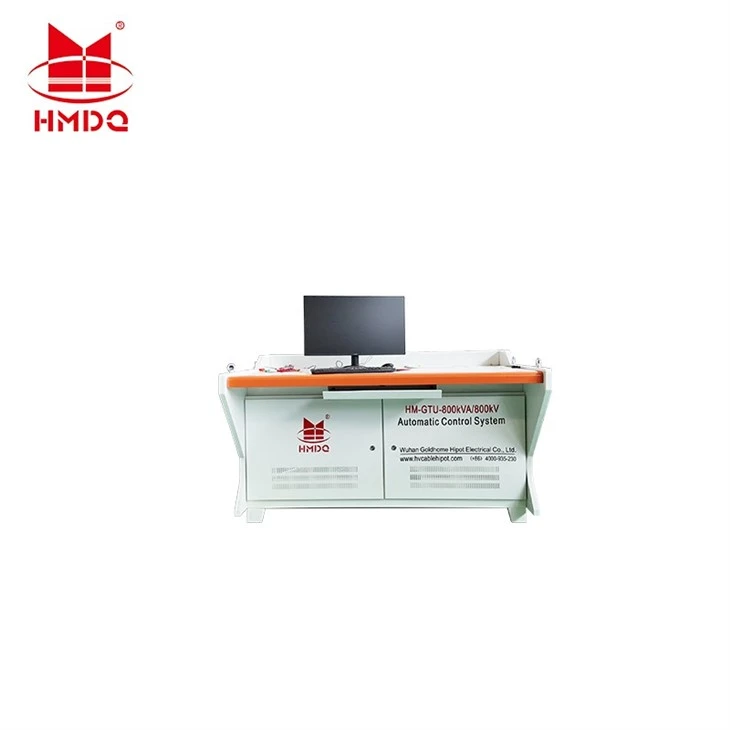

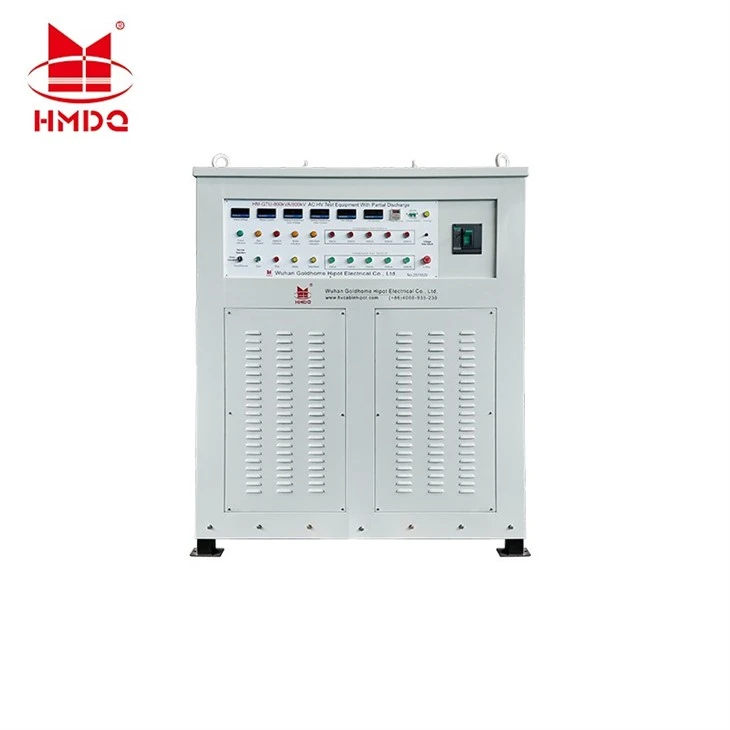

- Control System ：Model HMGTU-800/800; input 0.38kV, output capacity 800kVA (including compensation); instrument voltage 0.1kV; waveform distortion ≤ 3%; Equipped with functions such as step-by-step voltage increase, timing, protection, communication, and printing
- Partial Discharge Tester ：2 channels, displays sine/elliptical/horizontal/2D/3D waveforms, with recording and printing capabilities (the document states
- General Operating Conditions: Ambient temperature: -10 to +40 °C, power supply distortion ≤3%, ground resistance <0.5 Ω, partial discharge background <1 pC
fAQ
Q: Can the system operate normally in an unshielded, standard factory building? Will the partial discharge readings be affected by the environment?
A: Yes, it can, and they will not be affected
Q: Is the voltage regulator's input power supply three-phase or two-phase? What kind of power distribution cabinet needs to be prepared on-site?
A: Rated input voltage: 380V, two-phase. It must be two-phase; the on-site power distribution system must include a high-capacity (200A) two-phase circuit reserved for this purpose.
Q: What is the internal gas pressure of the equipment during transport?
A: During transport, the SF6 gas pressure should be reduced to within 1.2 Pa (near vacuum).
