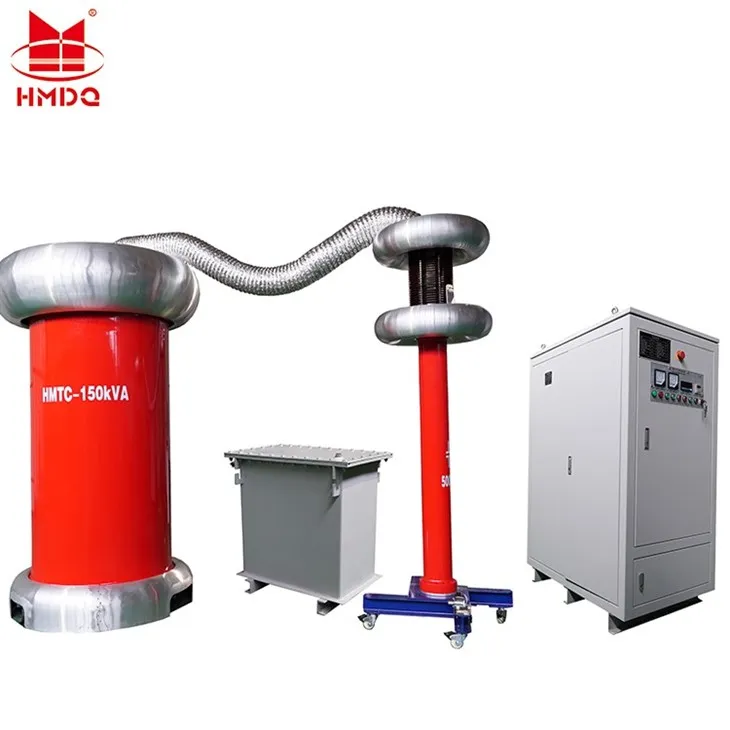

Partial Discharge Free AC HV Withstand Voltage Test System

Power frequency Partial Discharge Equipment is used for checking the insulation level of all kinds of insulation materials ,insulation structure and electric products. Partial Discharge Equipment is also can be regarded as the partial discharge power source for the power transformers, capacitors, HV vacuum tubes ,CT PT, arrestors and other tested objects. Partial Discharge Equipment is widely adopted by electric manufacturers,electric running departments. Research unities and universities.

1.This Partial Discharge Equipment specification is complete(from 10kVA/50kVto 1000kvA/1000kV ), even higher. All capacity and voltage levels we can customized, functions are improved.

2.The oil-filled testing transformer adopts the partial discharge epoxy insulated cylinder, it will make sure the minimum partial discharge amount. This craft is obvious advantage of field companies.

3.We adopts the high quality silicon steel sheet: DQ130-30 with grain oriented,45 ° inclined seams laminated,the waveform distortion and no-load current is the minimum in the domestic market.

4.Impedance voltage is very low, it is higher than the IEC standard.

5.The console adopts automatic industrial PLC system with computer photo-electricity skill.it has strong anti-interference and higher-automatic features.

6.It has quick-reflection electric protection system,very stable and shorten the harmless to devices.
