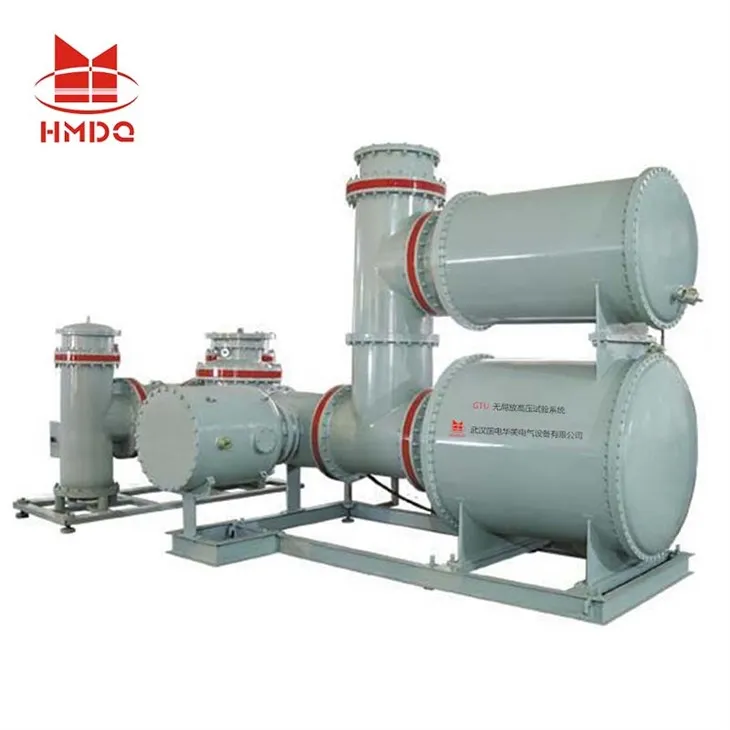

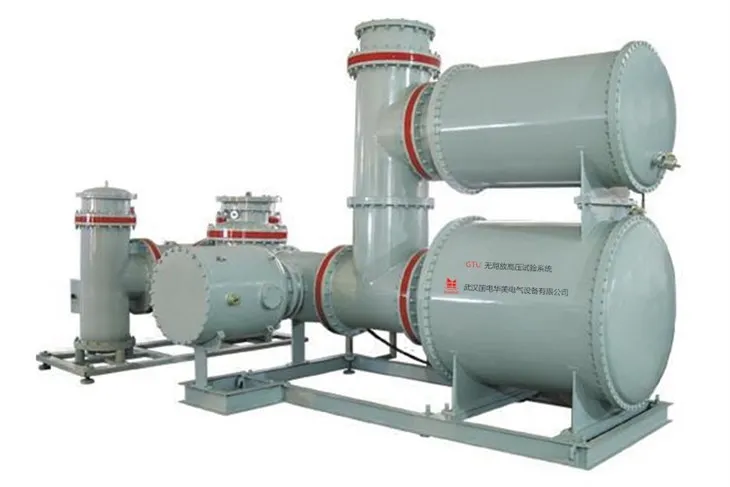

PD Free High Voltage Test System For Transformer GIS Cable

SF6 gas insulated transformer test is designed for power equipment factory and field test metal package (GIS), appearance test of high voltage power cable assembly required GIS components (disc insulator and insulation structure, voltage transformer design etc.). The utility model has the advantages of fully enclosed. It can complete the partial discharge test under normal circumstances, the general background discharge test can debug less than 1Pc.(1) On the equipment installation of high voltage bushing, it can withstand test conventional electric power equipment.

1.The equipment is small and available with minimal space

2.Components are light in weight

3. Rugged structure capable of handling long distance transportation

4. Direct connection with the subject

5. All high voltage parts are encapsulated in airtight space to ensure high safety of operators

6.Wide range applications, adding installation bushings can do normal withstand voltage testing.

7.Built in high voltage measurement and PD coupling capacitor

8.Built in high voltage isolating switch, which can separate interface of multiple test products, to ensure safety of high voltage test.
