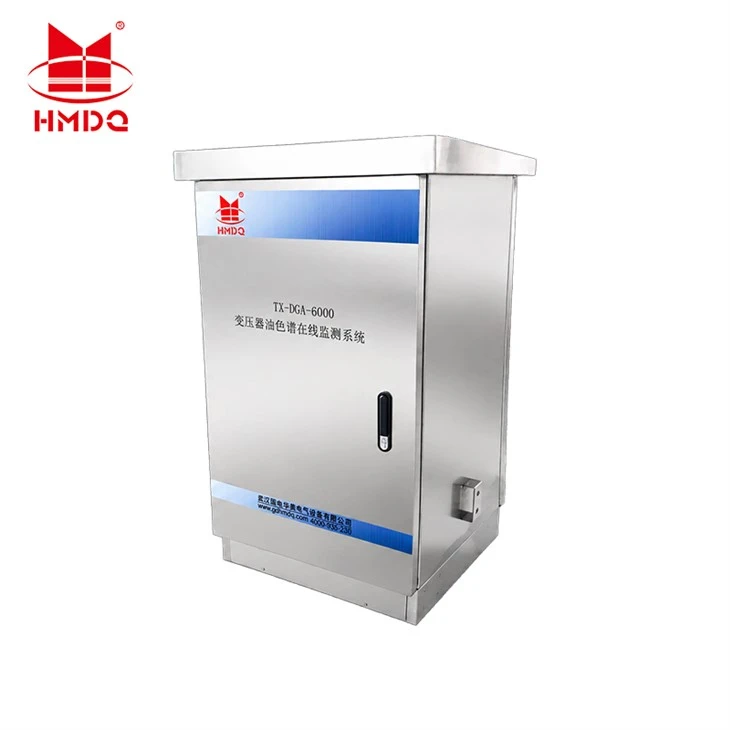

HM-6000 Online transformer oil chromatography monitoring system
Products Overview
The HM-DGA-6000 Online Monitoring System for Dissolved Gases in Transformer Oil provides high-precision quantification, automatic cleaning, efficient separation, automatic oil return, sample analysis, data processing, and real-time alarms; It rapidly analyzes and monitors the concentration and growth rate of dissolved fault gases in the oil of oil-immersed high-voltage power equipment, such as transformers, and uses a fault diagnosis expert system to provide early warnings of potential equipment failures. This helps prevent equipment accidents, reduce significant losses, and improve the reliability of equipment operation. As a flagship product in the field of online oil gas chromatography monitoring, this device provides a stable and reliable solution for online remote analysis of power transformers and serves as a strong guarantee for the implementation of condition-based maintenance in power systems.
Products features
- Flexible Monitoring Intervals: Minimum 60-minute intervals, with user-configurable settings; 12 hours is recommended.
- Rapid Gas Analysis: Elution and separation completed in approximately 15 minutes.
- Safe Oil Return: Multi-layer isolation and defoaming technology prevents carrier gas from entering the transformer.
- Low Acetylene Detection Limit: C₂H₂ detection limit as low as 0.2–0.5 μL/L.
- High-Precision Temperature Control: Intelligent constant-temperature control with accuracy of ±0.1 °C.
- Integrated Intelligent Control: Combines gas separation, data acquisition, analysis, alarms, and equipment monitoring in one system.
- Strong EMC Performance: EMI/EMC-designed circuits improve resistance to electromagnetic interference.
- Remote Digital Communication: Supports Ethernet and RS485 for remote monitoring, control, and configuration.
- Built-In Fault Diagnosis: Supports the Three-Ratio Method, David Triangle Method, and Cube Diagram Method.
- Remote Maintenance & Self-Diagnostics: Detects equipment abnormalities and supports remote maintenance.
- IEC 61850 Networking: Supports IEC 61850 for integration with other monitoring devices.
- Flexible System Integration: Highly scalable for connection with additional online monitoring equipment.
- Cylinder-Free Zero-Air System: Built-in zero-grade air generation eliminates frequent carrier gas replacement and reduces maintenance requirements.
Products Parameter
| Products name | Dissolved Gas Analyzer for Transformer Oil |
| Products model | HM-DGA-6000 |
| Operating Temperature |
-40℃～＋70℃
|
| Relative humidity | 5–95%(no condensation or ice) |
| Atmospheric Pressure |
70kPa～110kPa
|
| Power Supply |
AC 220 V±10% , 50Hz
|
| Data Retention Period |
≥ 10 years
|
| Extreme Storage and Transportation Temperatures |
-40 ℃ ～＋ 80 ℃
|
| Protection Rating of the Enclosure | Outdoor Installation, IP56 |
| Dimensions |
Width 600 mm × Depth 600 mm × Height 1,150 mm |
| Total Weight |
125kg
|
| Monitored Components |
H₂, CO, CO₂, CH₄, C₂H₄, C₂H₆, C₂H₂, H₂O (optional), and other gas components, as well as trace moisture, relative growth rate, and absolute growth rate; trace moisture monitoring in oil is optional |
| Analytical and Diagnostic Functions | Analyzes and diagnoses monitoring data using the modified three-ratio method, David's triangle method, and the cube diagram method, and provides raw spectra. |
| Minimum Monitoring Interval | 60 minutes; user-configurable; default is 24 hours |
| Gas-Oil Separation Method | Atomized headspace degassing |
| Carrier Gas System | Fully automatic, maintenance-free carrier gas system |
| Monitored Gases | 1) H₂ 2 µL/L to 2,000 µL/L 2) CO 25 µL/L to 3,000 µL/L 3) CH₄ 0.5 µL/L to 600 µL/L 4) C₂H₄ 0.2–600 µL/L 0.2 µL/L 5) C₂H₆ 0.2–600 µL/L 0.2 µL/L 6) C₂H₂ 0.2–600 µL/L 0.2 µL/L 7) CO₂ 25–15,000 µL/L 25 µL/L 8) H₂O (optional) 1–800 µL/L 9) Total hydrocarbons 0.5–2,000 µL/L |
