Product Overview

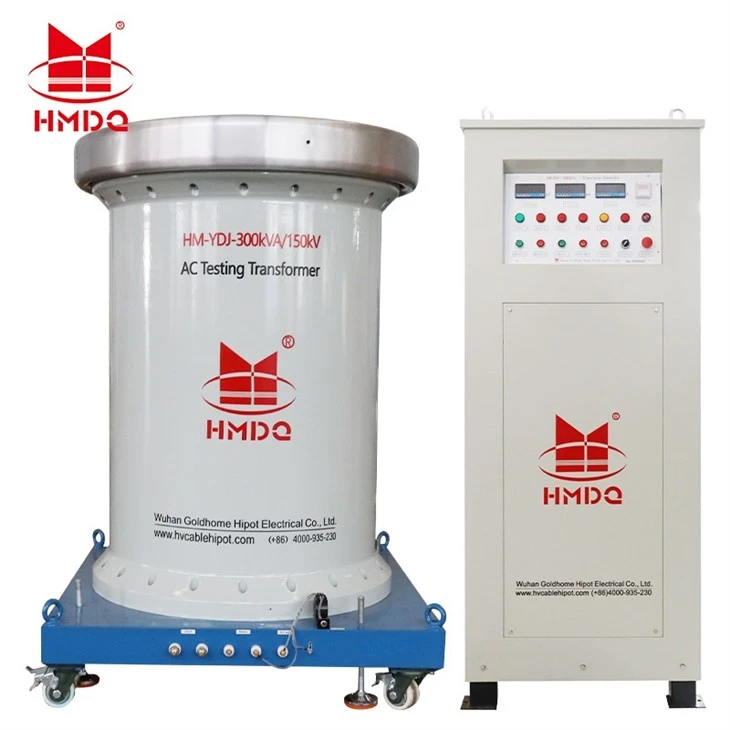

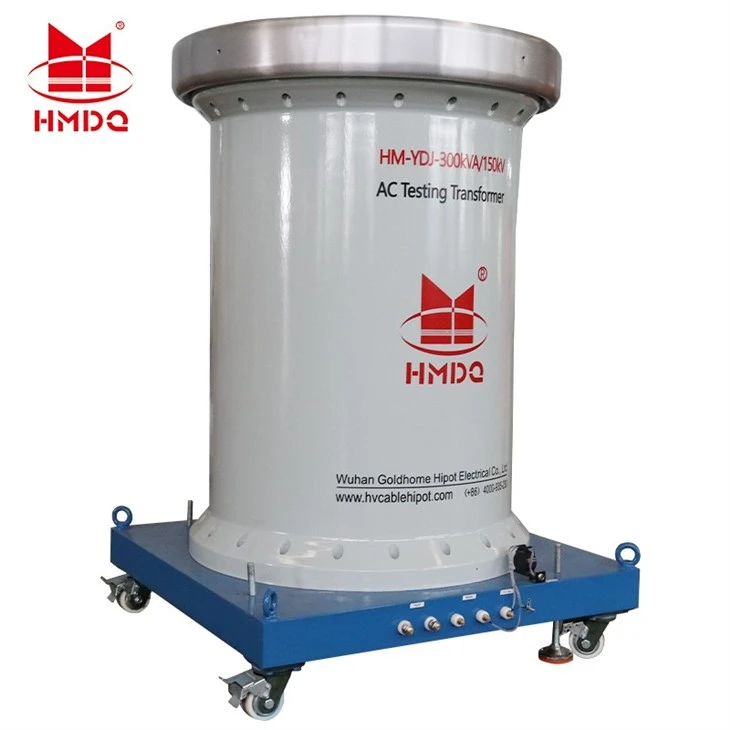

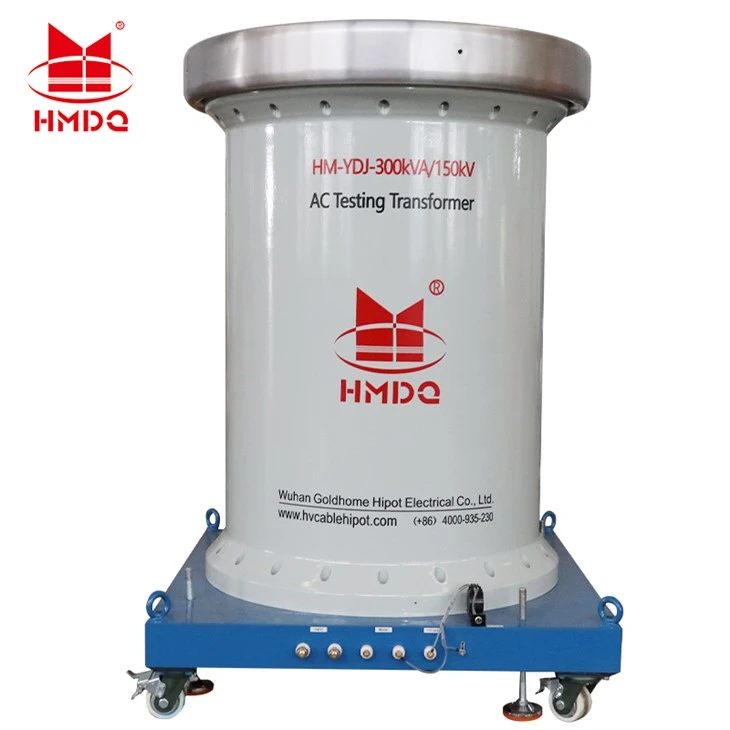

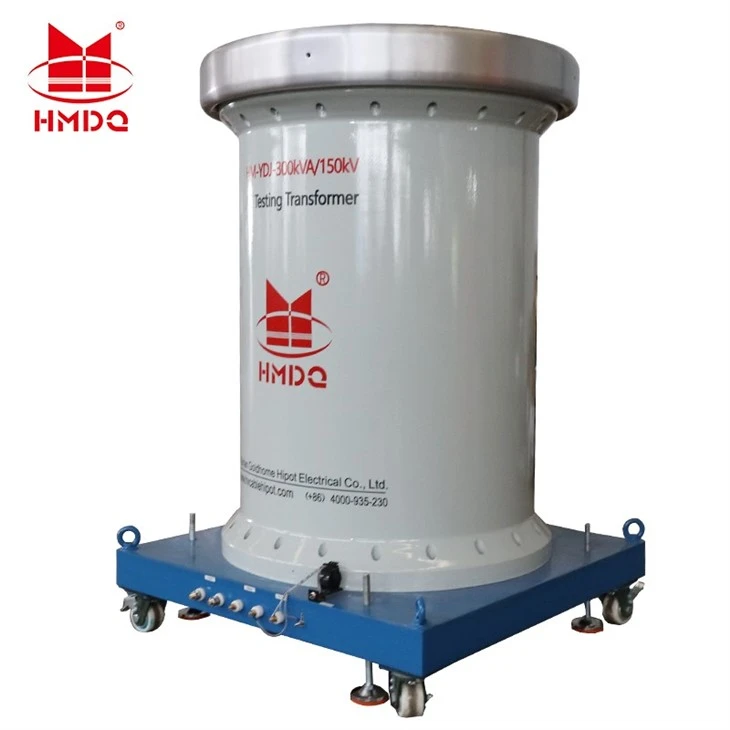

The HMYDJ-300kVA/150kV oil-immersed test transformer with an insulated tank is a high-voltage, high-capacity professional testing device.

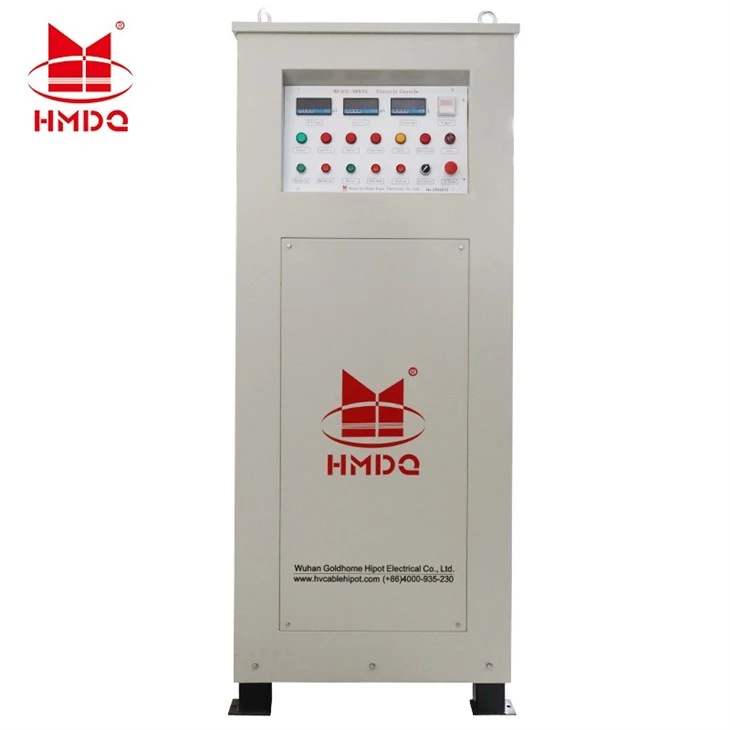

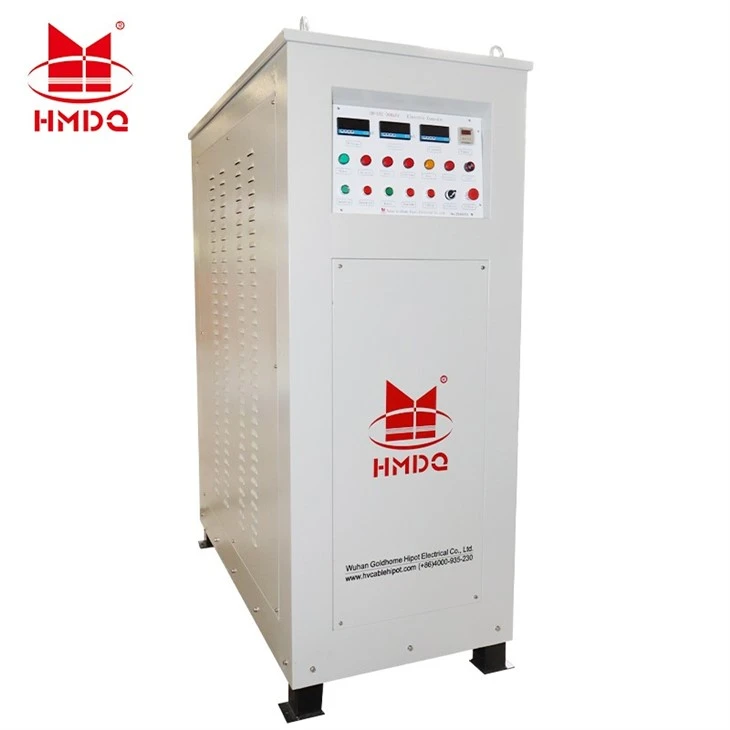

console Features
- Rated Capacity 300 kVA
- Rated High Voltage (AC) 0–150 kV
- High-Voltage Rated Current 2 A
- Low-Voltage Input Voltage 0–380 V (three-phase / single-phase, 50 Hz)
- Low-Voltage Rated Current Matched to capacity; compatible with high-power voltage regulators
- Measured Winding Voltage 100 V (standard instrument sampling)
- Waveform Distortion Rate ≤3%
- Impedance Voltage <10% per unit
Product description
