Products Description

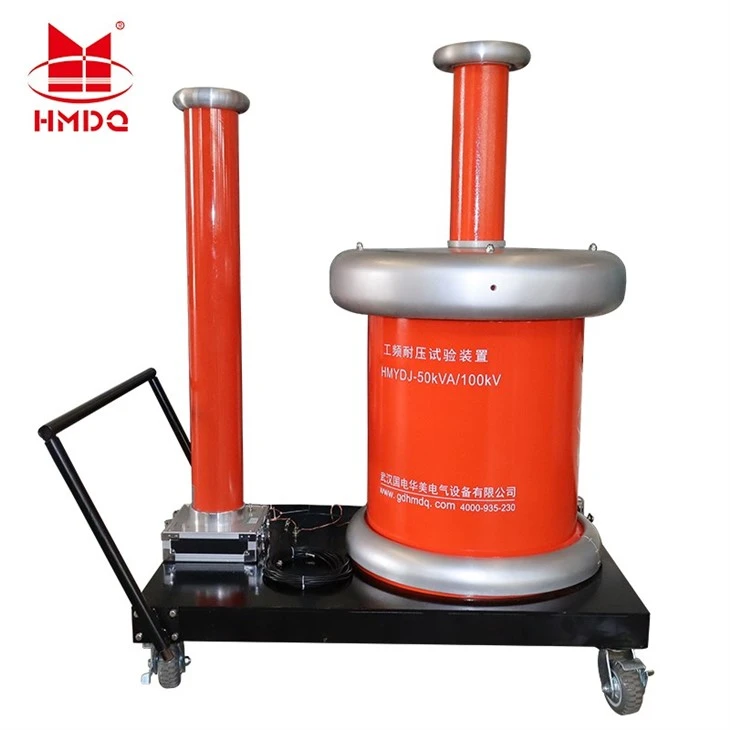

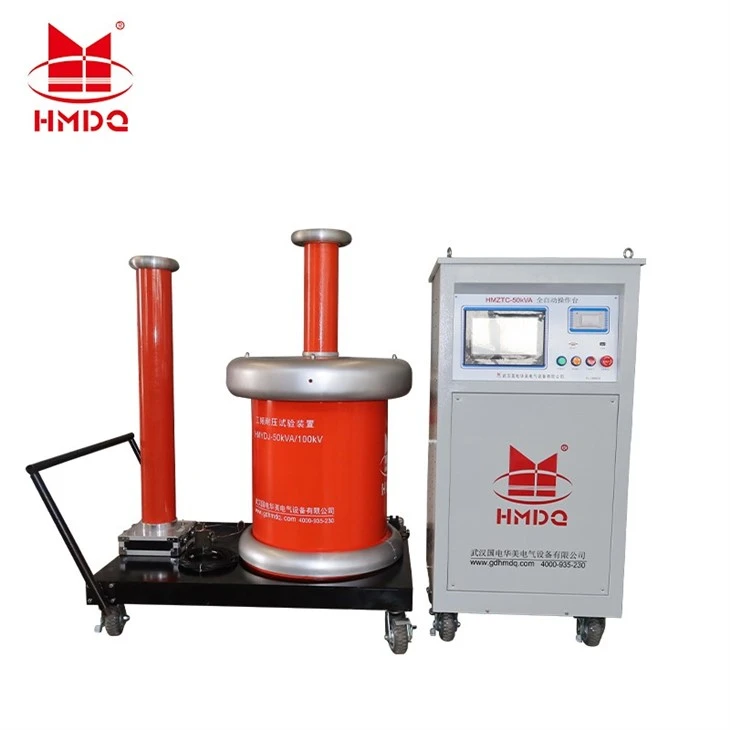

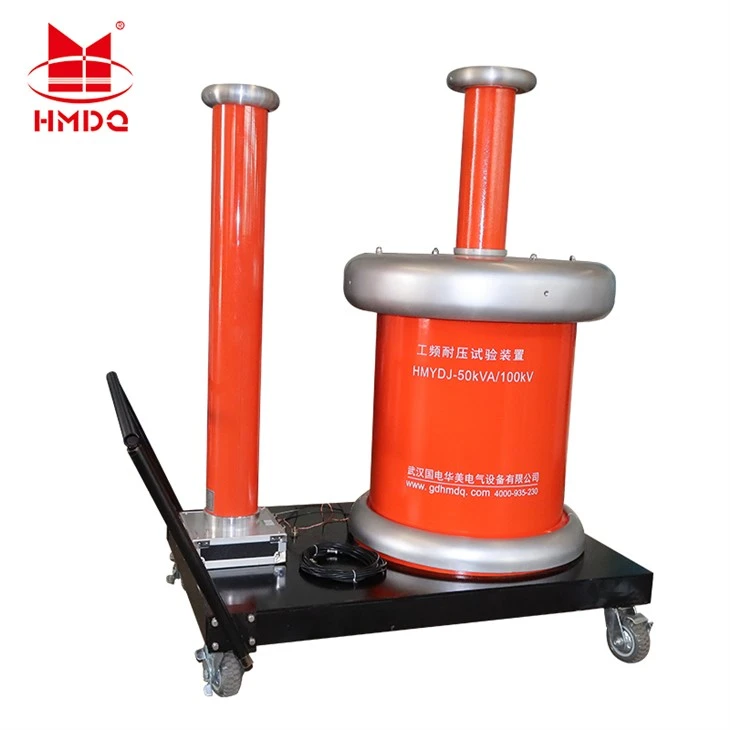

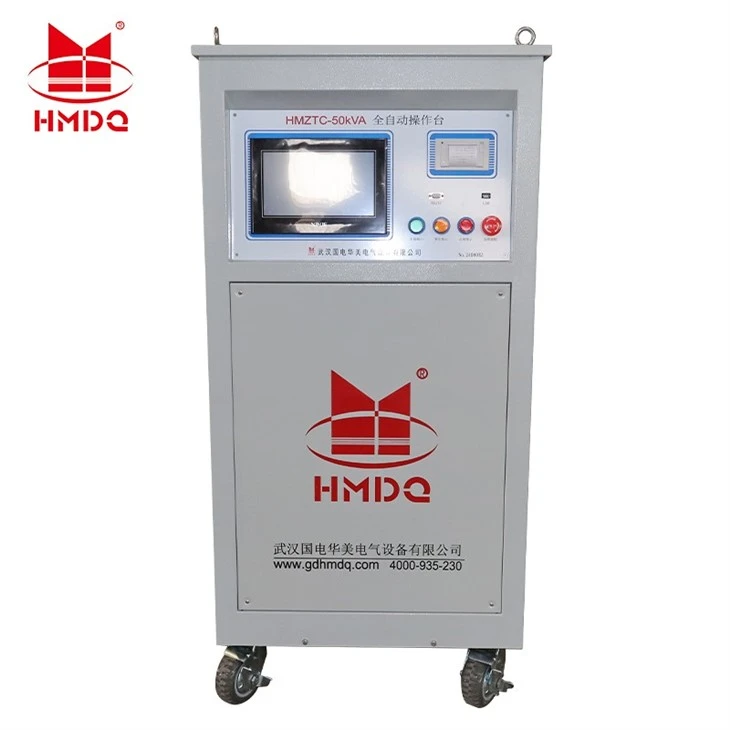

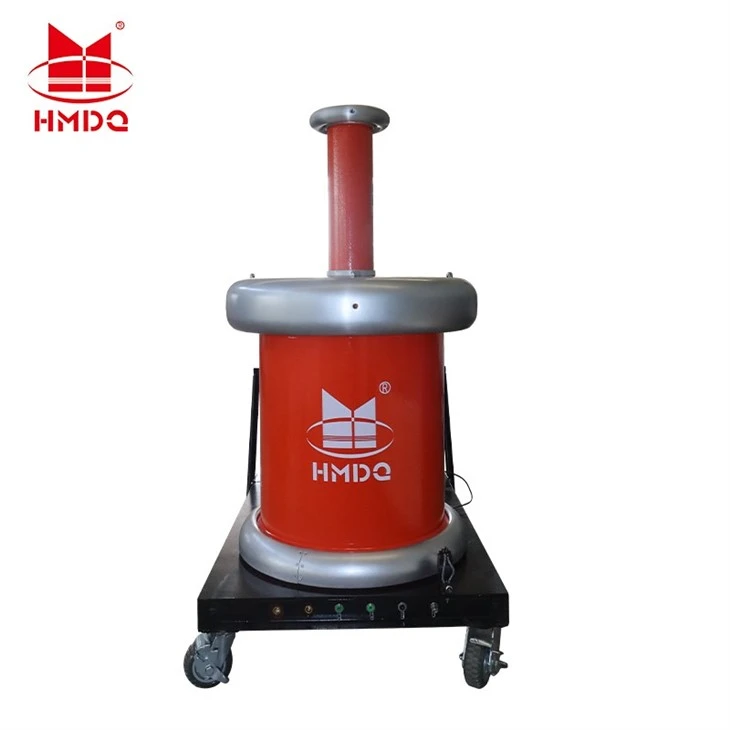

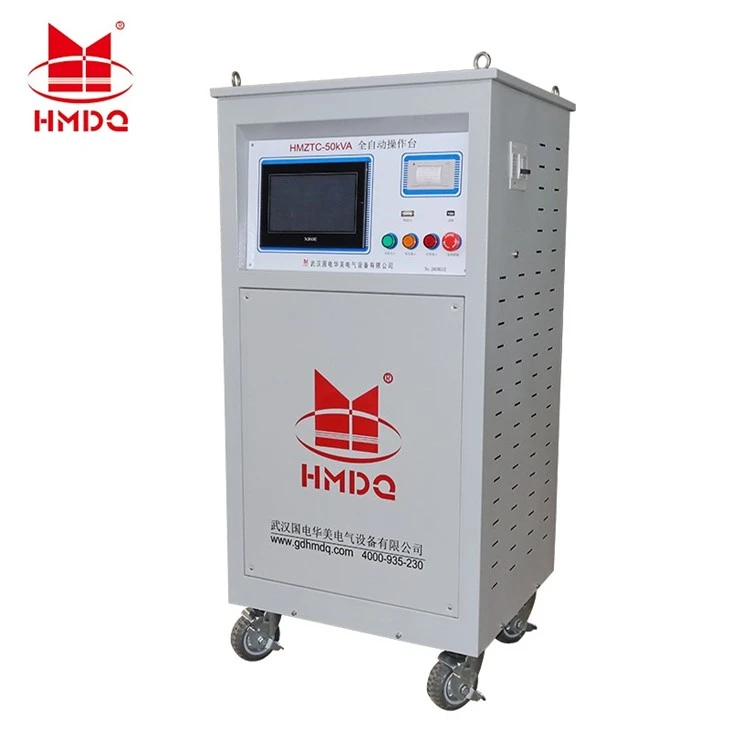

The HMYDJZ-50kVA/100kV oil-immersed, AC/DC dual-purpose lightweight high-voltage test transformer, when paired with an intelligent electric control console, forms a complete test system. The system features a modular design (test transformer + intelligent control console) and employs a single-frame core with coaxially arranged windings, resulting in low stray magnetic flux and strong winding coupling.
Products Parameters
- Rated Capacity 50 kVA
- Input Voltage AC 380 V
- Low-Voltage Current 0–125 A
- Low-Voltage Voltage 0–400 V
- High-Voltage 0–100 kV
- High-Voltage Current 0–0.5 A
- Instrument Voltage 0–100 V
- Voltage Measurement Accuracy 0.5% FS ±3 digits
- Current Measurement Accuracy 0.5% FS ±3 digits
- Overall Accuracy 1.5%
- Timing Range 0–999.9 seconds
- Operating Ambient Temperature 0–50 °C
- Relative Humidity ≤85% RH
