Product Introduction
The HXXZ-500kVA/200kV is specifically designed for AC withstand voltage testing of high-voltage electrical equipment such as 10kV/35kV/110kV cross-linked cables, power transformers, GIS, busbar switches, insulators, and thermal power generators.
HMCXZ-500kVA/200kV Series Resonant Test Device Configuration Table
| Test Object | Equipment Parameters | Reactor Connection Configuration | Excitation Transformer Output Tap | Maximum Test Voltage |
|---|---|---|---|---|
| 10kV Cables | 300mm² and below, maximum length 6km, capacitance ≤2.25μF | 6 units in parallel | 1.2kV | 22kV |
| 35kV Cables | 300mm² and below, maximum length 3km, capacitance ≤0.389μF | 6 units in 2-series 3-parallel configuration | 2.4kV | 52kV |
| 110kV Transformers / GIS / High-voltage Busbars | Withstand voltage test for main power equipment | 6 units all in series | 9kV | 200kV |

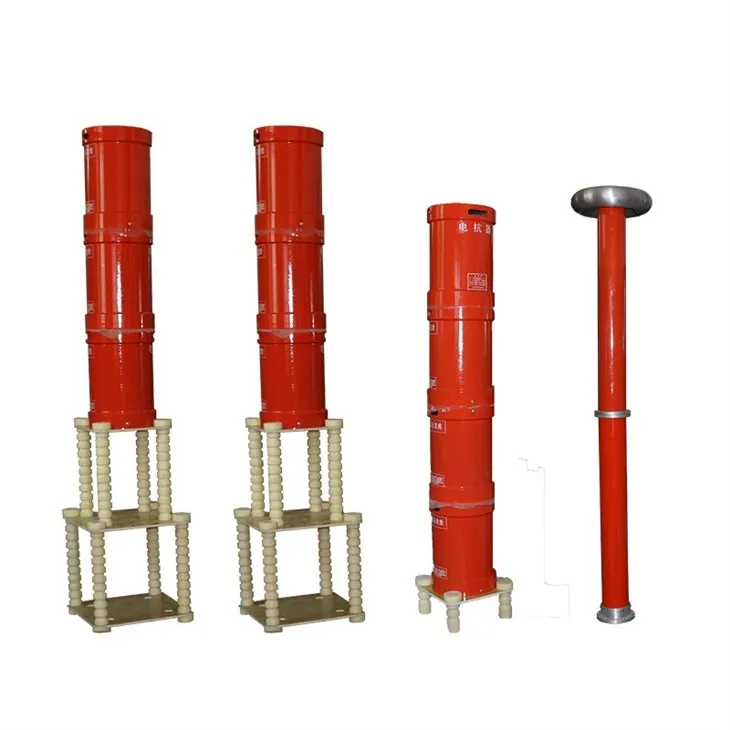

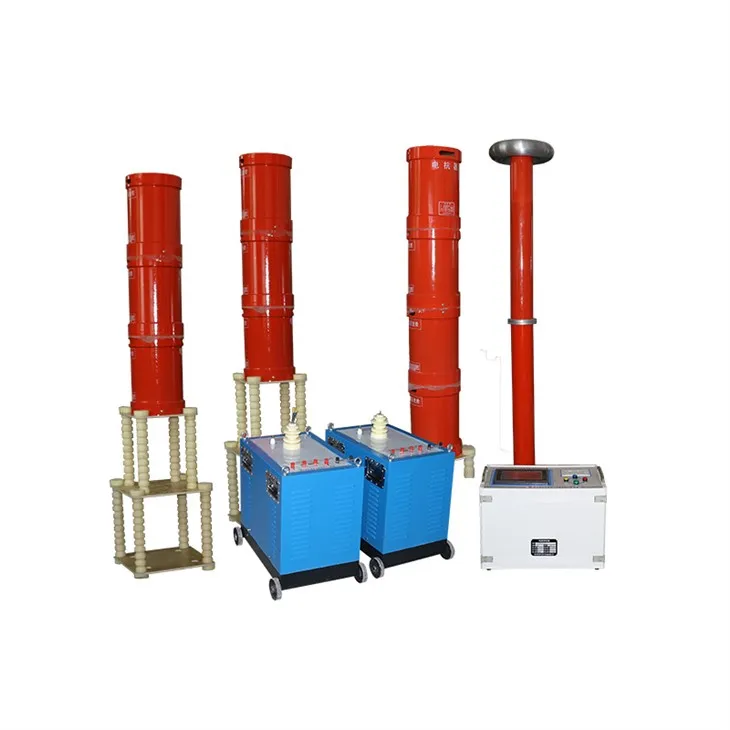

Products Details
fAQs
Q: What is the alarm voltage?
A:1.1 to 1.2 times the test voltage
Q:Unable to reach the rated test voltage?
A: Adjust the series/parallel configuration of the reactors, add compensation capacitors, shorten the high-voltage wiring (≤5 m; equalizing leads are preferred), and dry any damp test specimens. If these measures are ineffective, contact the manufacturer.
Q: What situations are not covered by the free warranty?
A: Unauthorized disassembly or modification, operation beyond rated voltage or current limits, improper use in damp or explosive environments, or damage caused by wiring errors or human error will require paid repairs.
