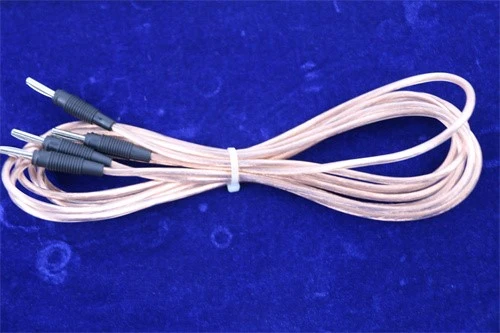

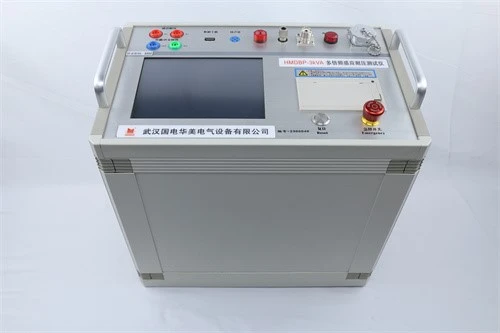

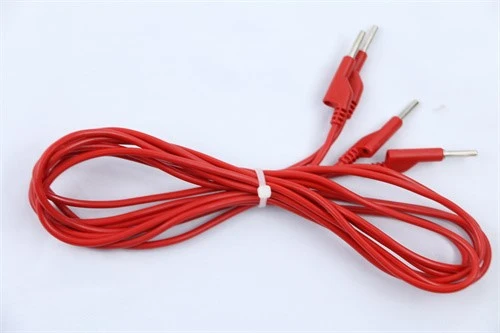

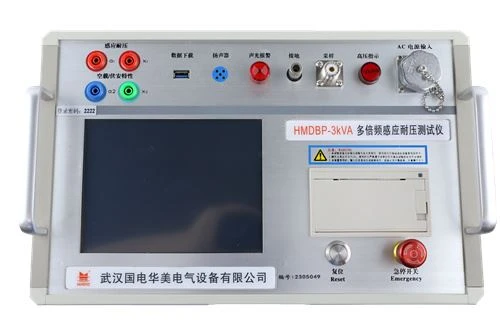

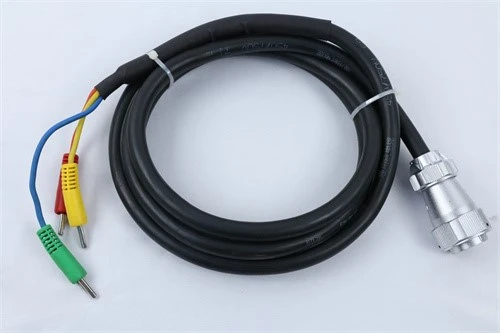

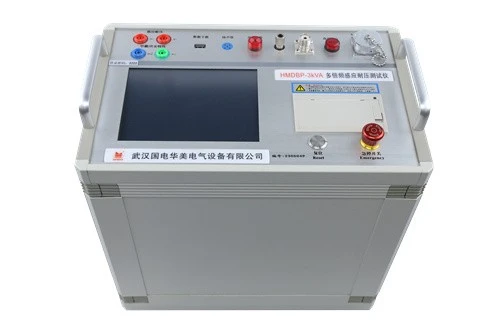

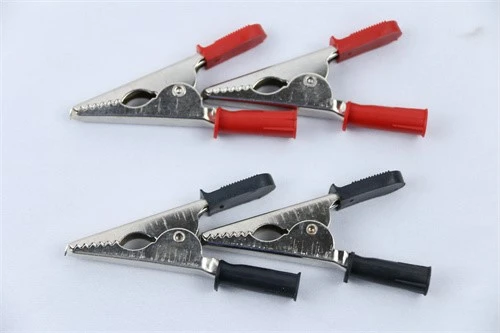

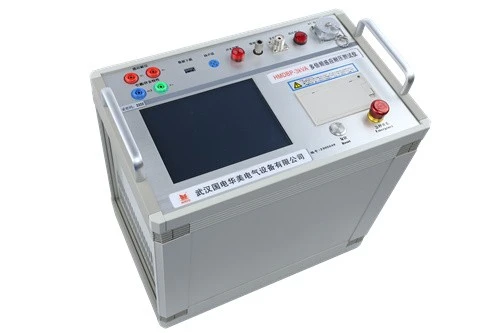

The HMDBF is specifically designed for induction withstand voltage tests on power equipment such as transformers and voltage transformers, and is used to evaluate the longitudinal insulation of windings (turn-to-turn, layer-to-layer, section-to-section, and phase-to-phase insulation). It employs DSP digital control technology to output pure sine-wave multi-harmonic voltages (50/100/150/200 Hz or user-defined frequencies between 30 and 300 Hz). As a versatile, all-in-one unit, it can also perform voltage-current characteristic (excitation) tests and no-load current tests, making it an intelligent, multifunctional on-site testing device.
Products Parameters
- Rated Capacity 3 kVA
- Maximum Output Voltage 0–500 V (can be boosted using an external step-up transformer)
- Input Voltage Three-phase 380 V ±10% or single-phase 220 V (capacity halved)
- Power Frequency 50 Hz
- Output Frequency 50 Hz, 100 Hz, 150 Hz, 200 Hz, or continuously adjustable from 30 to 300 Hz (customizable)
- Waveform Distortion ≤2% (pure sine wave)
- Voltage Resolution 0.01 V
- Current Resolution 0.001 A
- Voltage/Current Accuracy ±0.5%
- Continuous Operating Time at Rated Load 60 minutes
- Frequency Adjustment Increment Minimum 0.1 Hz
- Voltage Adjustment Increment 1 V, 2 V, 5 V, 10 V (selectable in real time)
- Protection Functions Multiple protections including overvoltage, overcurrent, overload, overtemperature, flashover, zero-point, and undervoltage
- Operating Noise ≤40 dB
- Operating Temperature 0°C–45°C
- Relative Humidity 0–90% (non-condensing)
