Products Description

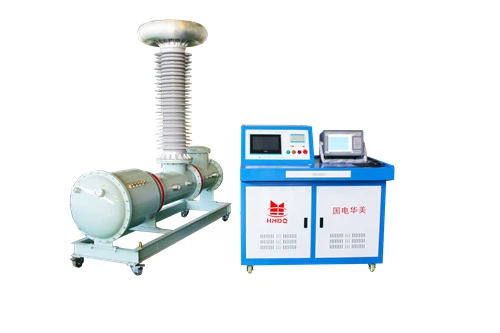

The HMGTU-20kVA/200kV High-Voltage Partial Discharge-Free Combined Test System, model HMGTU-20kVA/200kV, consists of a gas-insulated transformer, coupling capacitors, a voltage divider, a current-limiting protective reactor, and an isolation transformer.
Products parameters
Overall Technical Specifications of the Equipment
- Input Voltage: 400 V
- Rated Output Voltage: 200 kV
- Rated Power: 20 kVA;
- Partial Discharge Level at Rated Voltage: ≤3 PC; at 80% of Rated Voltage: ≤1.0 PC;
- Impedance Voltage: ≤12%;
- Overcurrent Capacity: 1.1 times the rated current for 1 minute;
- Overvoltage Capacity: 1.1 times the rated voltage;
- Insulation Medium: SF6
- Annual Gas Leakage Rate: ≤0.5%;
1) 200 kV/20 kVA Transformer
- Rated Input: 400 V
- Output Voltage: 0–200 kV
- Output Current: 0.10 A
- Partial discharge level at rated voltage ≤ 3 PC; at 80% of rated voltage ≤ 1.0 PC
- Impedance voltage: ≤ 10%
2) Isolation Transformer
- Input/Output Voltage: 380/400 V
- Rated Power: 20 kVA
3) Coupling Capacitor
- Rated Voltage: 200 kV
- Rated Capacitance: 100 pF
- High-Voltage Divider
- Rated Voltage: 200 kV
- Capacitance: 30 pF
- Measurement Accuracy: ±1%
Control Panel Specifications
● Rated Capacity: 20 kVA
● Low-Voltage Current: 0–52.6 A
● Low-Voltage Voltage: 0–380 V
● High-Voltage Voltage: 0–200 kV
● High-Voltage Current: 0–100 mA
● Meter Voltage: 0–100 V
● Voltage Meter Accuracy: 0.5% FS ±3 digits
● Current Meter Accuracy: 0.5% FS ±3 digits
● Overall Accuracy: 4%
● Timing Range: 0–999.9 M (Special mode available for extended operation)
● Power Supply Voltage: AC 380 V ±10%; 50 Hz ±2 Hz
Products Features
1. Suitable for high-voltage testing of GIS, insulators, and insulated poles, including AC withstand voltage and partial discharge measurements.
2. Partial discharge background level: no more than 2 pC
3. Multiple functions: alarm function, emergency stop function, automatic timing function, and manual control mode.
4. Incorporates software-based anti-interference technology, providing strong resistance to interference.
Packing picture
The HMGTU-20kVA/200kV partial discharge-free high-voltage equipment is currently being packed and prepared for shipment. Goldhome delivers products on time and to the highest quality standards, using wooden crates and shock-absorbing materials to fully protect the products from jolts and damage during transit.
