HMDQ HM-5001 Transformer Turns Ratio Display Video
Product Overview

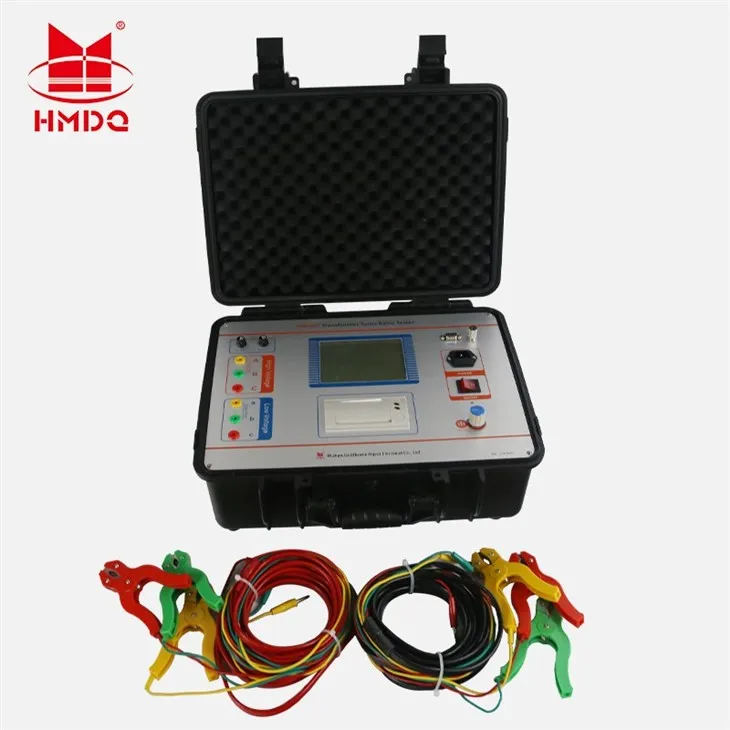

The HM5001 Transformer Turns Ratio Tester is a professional-grade instrument specifically designed for accurately measuring the turns ratio and winding connections of single-phase and three-phase transformers. This equipment is widely used in power companies, transformer manufacturing plants, industrial maintenance fields, and electrical testing laboratories.
Features & Advantages
1.The voltage ratio measurement of three or singe phase transformer
2.The group vector measurement of three phase transformer.
3.The polarity measurement of single phase transformer or CT/PT (CT that knee-point voltage should be more than 80V)
4.Voltage ratio error calculation
5.Voltage ratio range calculation of three phase transformer
6.Current transformer ratio measurement
7.Excitation current measurement in ratio testing
8.Reproduction the AC test voltage from power source to reduce the effects of bad power source
9.Save the test results in the memory internal the tester
10.Print the test results by micro printer
11.Reverse connection detect unit to prevent the high voltage injected to the operate
12.Over current protection in test voltage
13.Upload the test results to make word report by RS232 interface
Products Description
|
Ratio measurement range |
1-10000 |
|
Group measurement |
1-12 (12 vector groups) |
|
Phase measurement error： |
1 degree |
|
Ratio measurement error： |
0.2 class |
|
Power supply |
AC220V ± 10%, 50Hz |
|
Size |
345mm*295mm*175(mm) |
|
Weight |
7kgs |
