Product Introduction
The HMCXZ-1000kVA/500kV system is designed and developed for AC withstand voltage testing of power equipment at all voltage levels up to and including 500 kV.

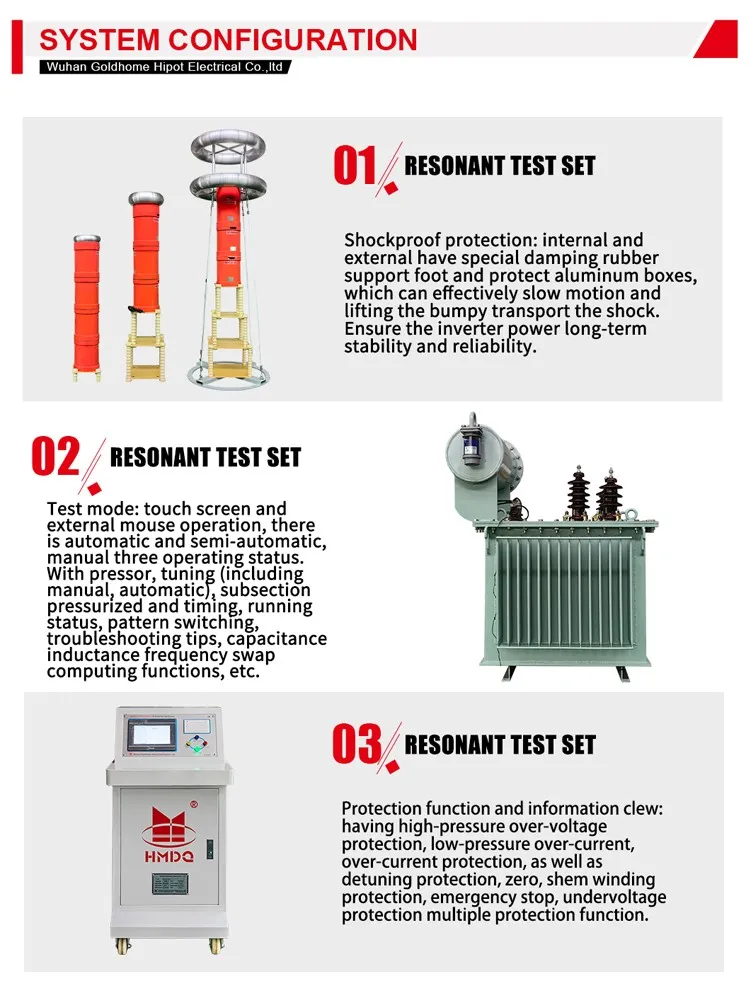

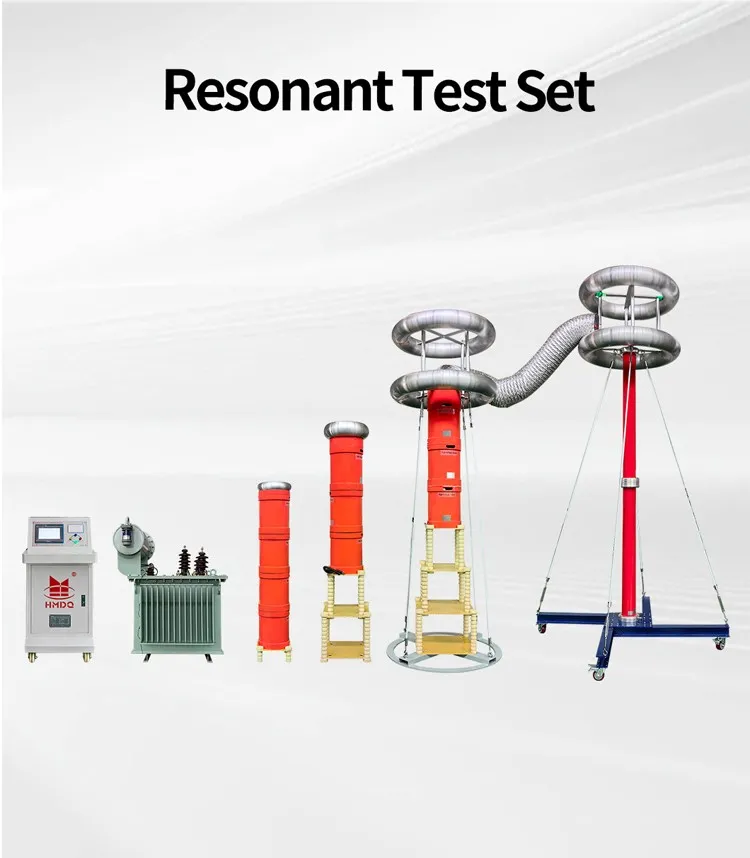

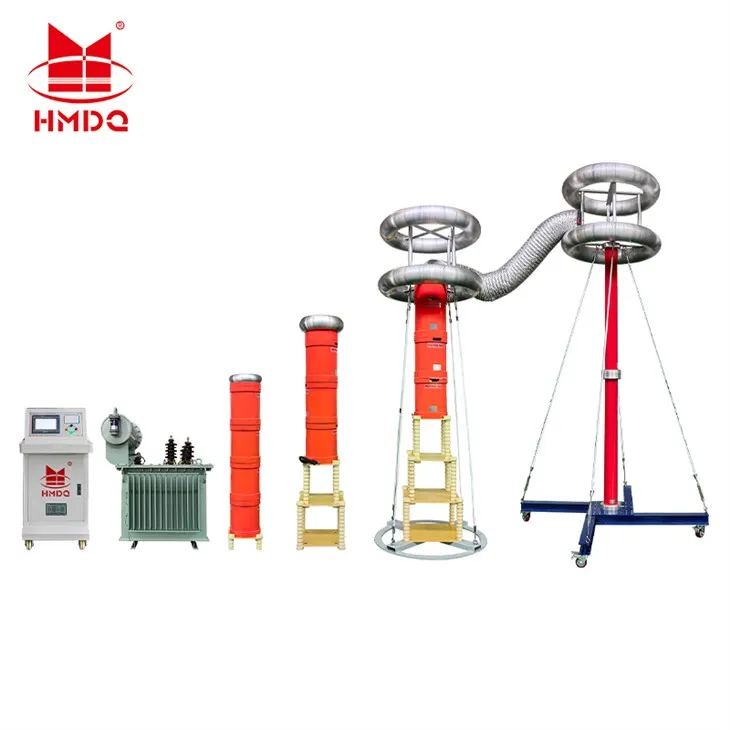

Core components of the system:
1 x Variable-frequency control power supply (main cabinet)
1 x Multi-tap dry-type excitation transformer

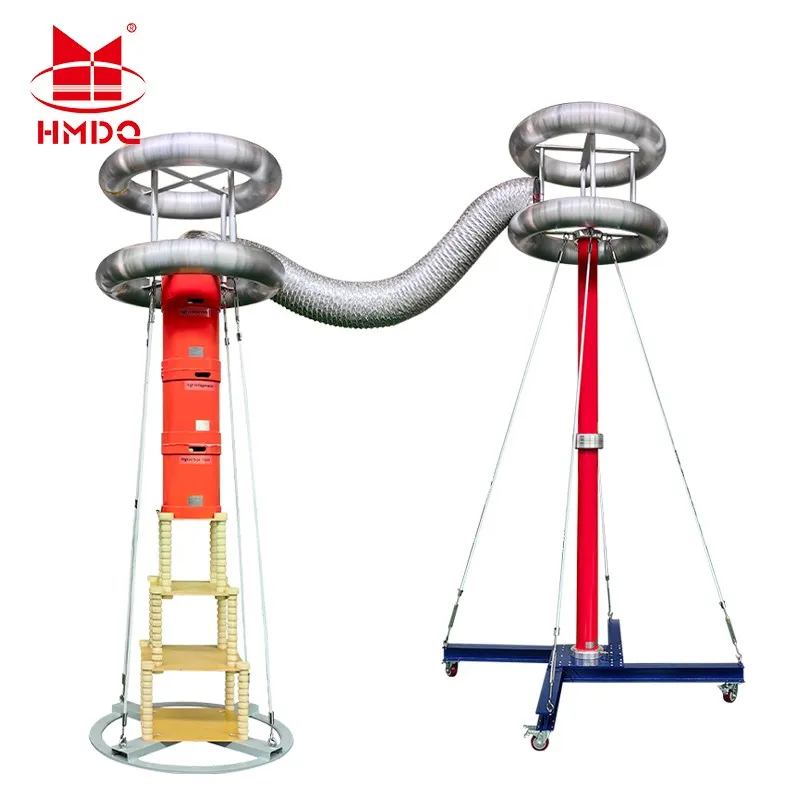

Multi-section modular high-voltage dry-type reactor
1 set of 500 kV high-precision capacitive voltage divider
Key Technical Specifications
- Rated Output Capacity 1000 kVA
- Rated Output Voltage 500 kV
- Output Voltage Distortion <1.0%
- Continuous Operating Time 30 minutes under rated conditions; cable withstand voltage up to 60 minutes
- Unit Quality Factor (Q) >50
- Full-Load Cable Test Q-Value >30 (load-dependent)
- Input Power Single-phase 220 V or Three-phase 380 V (auto-adaptive)
- Frequency Adjustment Range 30 Hz to 300 Hz
- System Measurement Accuracy 1.5%
- Protection Functions Overvoltage, overcurrent, zero-voltage start, flashover protection, etc.
- Core Control 32-bit RISC CPU + LINX core, 7-inch true-color touchscreen
- Data Interface USB port, supports data export to USB flash drive
