Wuhan Goldhome Hipot Electrical Co., Ltd. is one of the leading manufacturers and suppliers of hmdkw-200/20 pd-free compensating reactor (20 kv, 1.5 h / 3 h / 6 h) in China. With abundant experience, our factory offer high quality customized products made in China with competitive price. Welcome to contact us for quotation.
Products video
Products Description

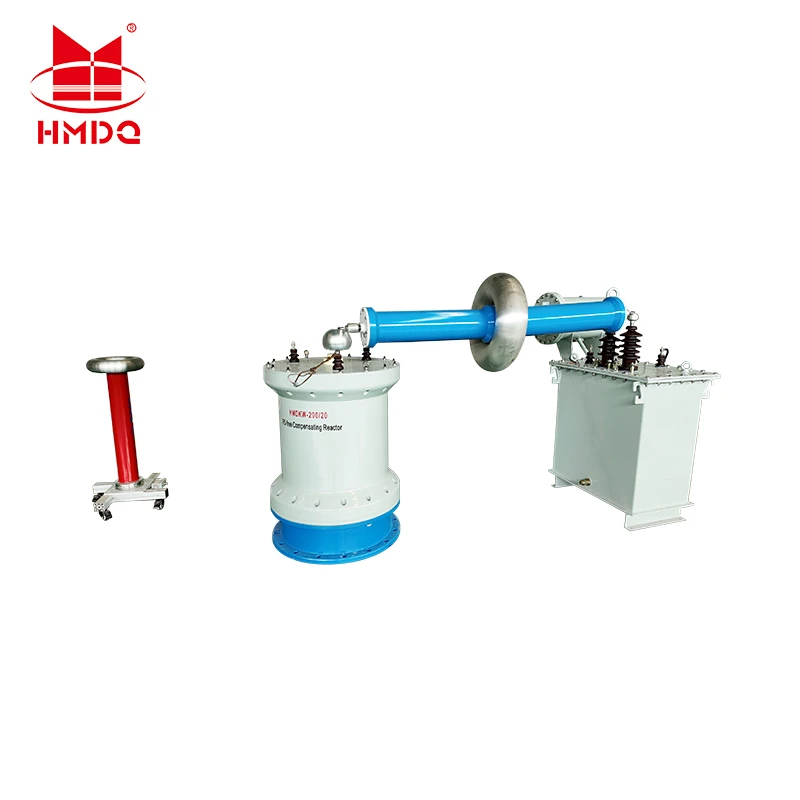

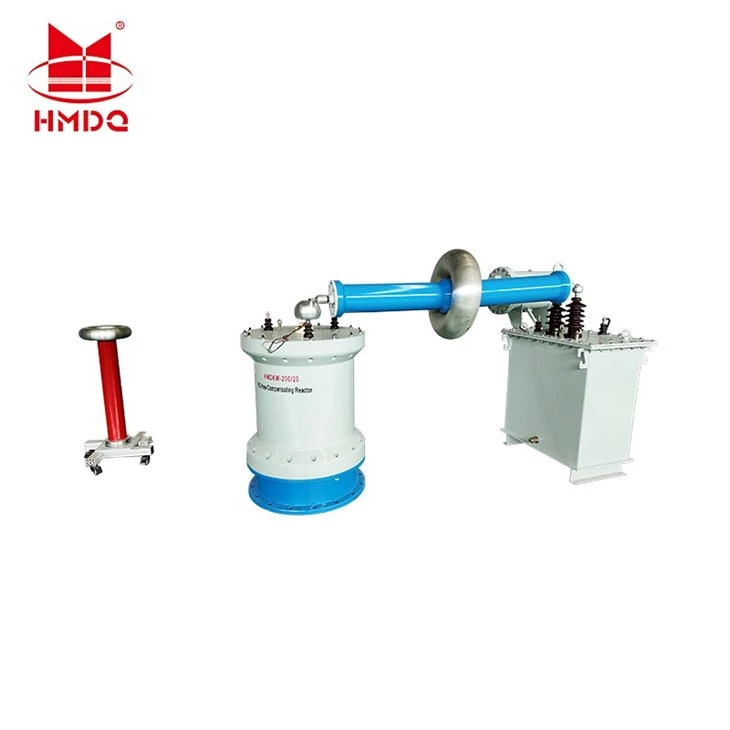

A partial-discharge-free compensating reactor for induced voltage test sets. Rated 20 kV and 10 A, with selectable 1.5 H, 3 H and 6 H inductance across a 20–300 Hz operating range, and a partial discharge level of 10 pC or lower.
| Inductance | 1.5 H / 3 H / 6 H, selectable |
| Rated voltage | 20 kV |
| Rated current | 10 A |
| Operating frequency | 20–300 Hz |
| Partial discharge | ≤10 pC |
| Quantity in standard set | 2 units |
Choosing an Inductance Tap
Resonance is set by the specimen capacitance and the test frequency together, which is why three taps are provided rather than a single fixed value.
1.5 H - the lowest inductance and the highest compensating current for a given voltage; suited to large specimens tested at the higher end of the frequency range
3 H - the middle tap, covering the most common 35 kV and 110 kV class transformer sizes
6 H - the highest inductance and the lowest compensating current; suited to smaller specimens or lower test frequencies
Two reactors are supplied with the standard system, so they can be operated in parallel when a larger specimen needs more compensating current, or kept as a spare.
Products Parameters
| Parameter | Value |
|---|---|
| Model | HMDKW-200/20 |
| Inductance | 1.5 H / 3 H / 6 H, selectable |
| Rated voltage | 20 kV |
| Rated current | 10 A |
| Operating frequency | 20–300 Hz |
| Partial discharge level | ≤10 pC |
| Quantity in standard system | 2 units |
Matching Components

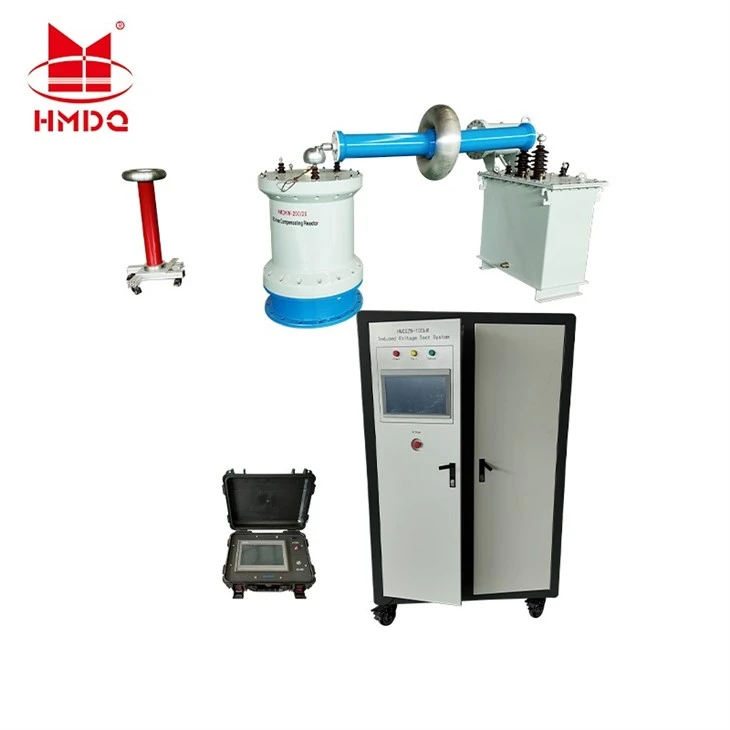

The reactor is one of four matched units in an induced voltage test set:
| Unit | Model | Function |
|---|---|---|

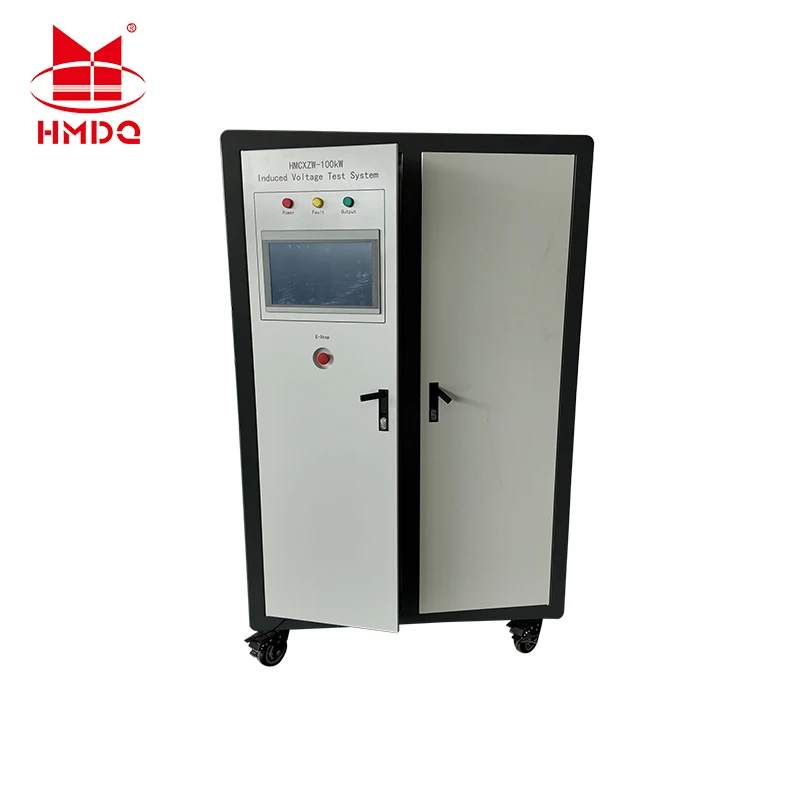

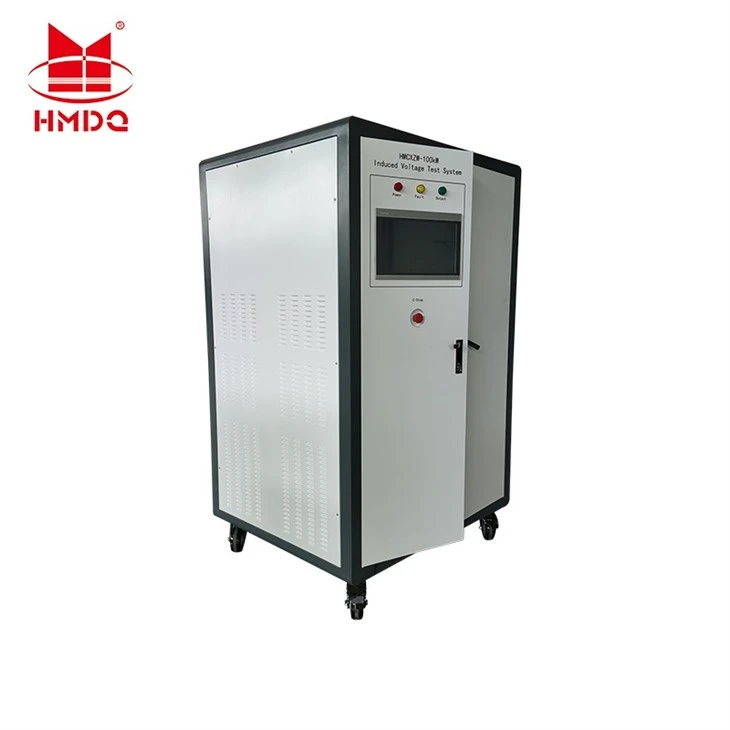

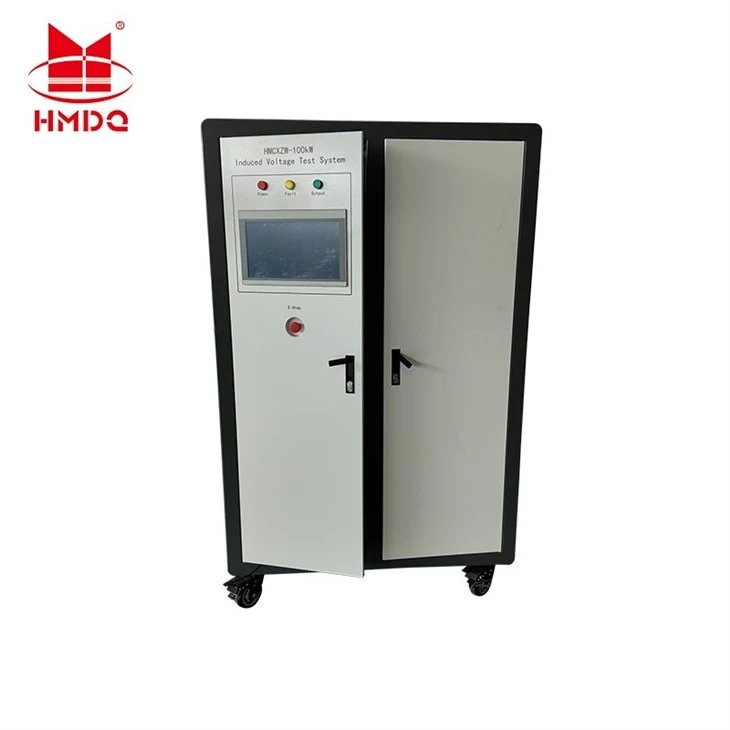

| PD-free variable frequency power source | HMCXZW-100kW | 0–800 V, 0–125 A, 45–300 Hz output |
| PD-free isolation step-up transformer | HMGLB-100kVA | Steps up to 12 kV / 20 kV |
| PD-free compensating reactor | HMDKW-200/20 (×2) | Compensates specimen capacitance |
| PD-free capacitive voltage divider | HMFRCW-50kV | Voltage measurement, ≤5 pC |
Single units are available separately for replacement or for expanding an existing test set.
FAQ
Q: What partial discharge level does the reactor have?
A:The rated partial discharge level is 10 pC or lower. Because the reactor sits directly in the test circuit, keeping its discharge low is what allows a meaningful reading from the specimen.
Q: What warranty is provided?
A: Three years of after-sales quality warranty from the date of sale unless otherwise agreed in the contract, covering repair or replacement of parts returned to the manufacturer or its appointed service unit.
