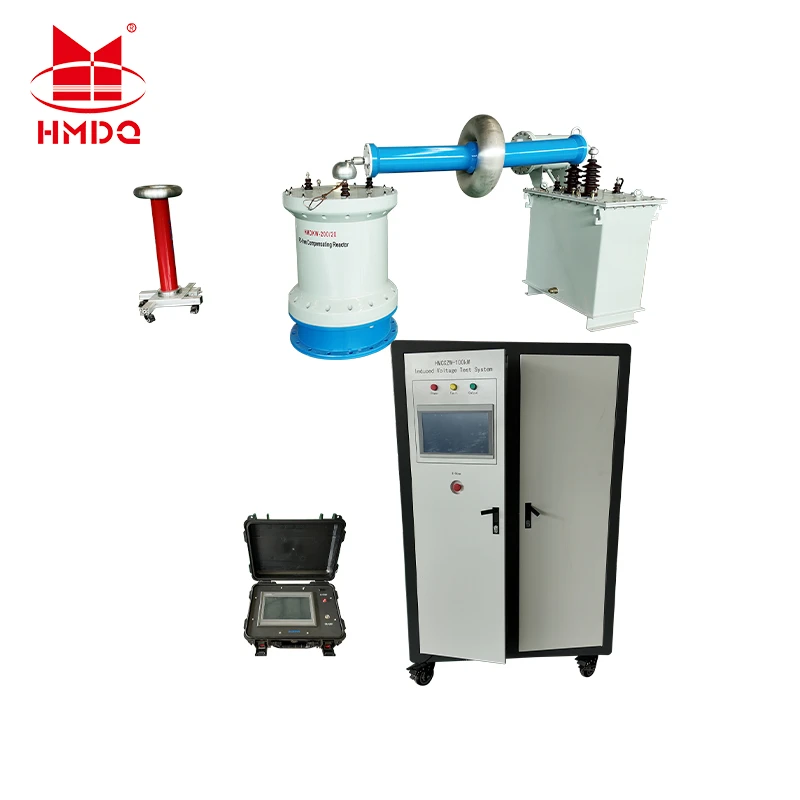

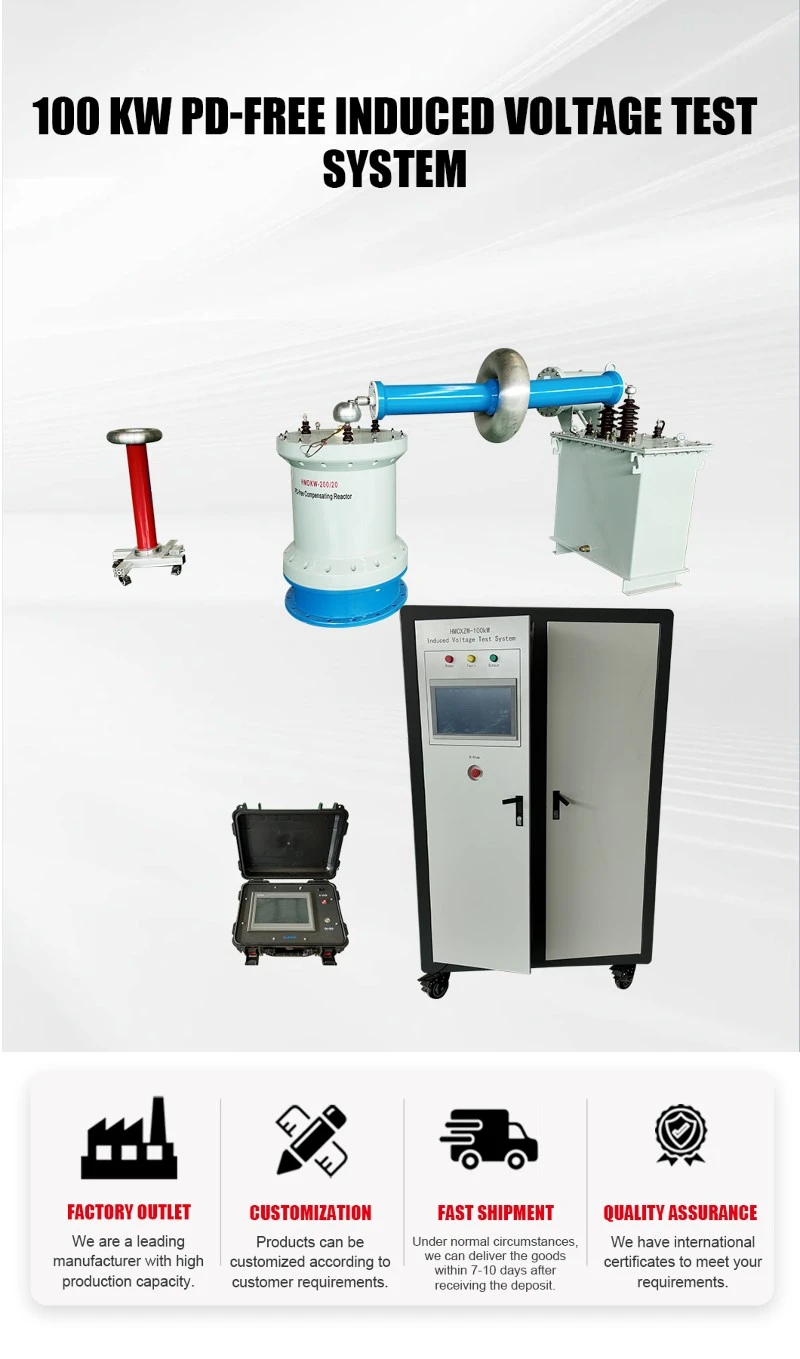

The HMCXZW-100kW is a 100 kVA partial discharge free variable frequency power supply for high voltage test laboratories and transformer test benches. It converts a standard 3-phase 380 V mains supply into a clean, continuously adjustable single-phase output of 0-800 V, 0-125 A, 45-300 Hz, with voltage and frequency stability of ±1% and ±0.1% respectively.

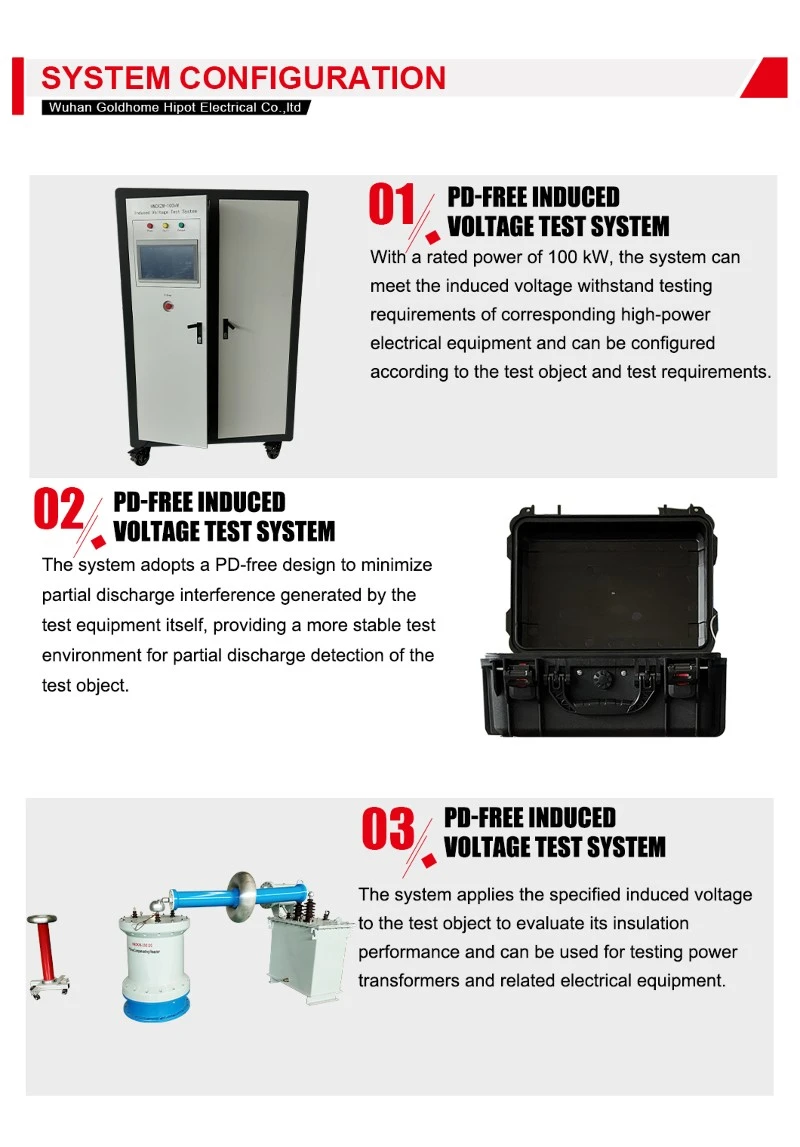

Unlike a standard frequency converter, this unit is built for partial discharge testing: its own background discharge is held below 10 pC, the output waveform is a low distortion sine wave (THD ≤2% at full scale on resistive load), and no high frequency switching noise is injected into the measuring circuit. That makes it suitable not only for induced voltage withstand tests but also for PD measurement on transformers, bushings, instrument transformers and cable accessories.

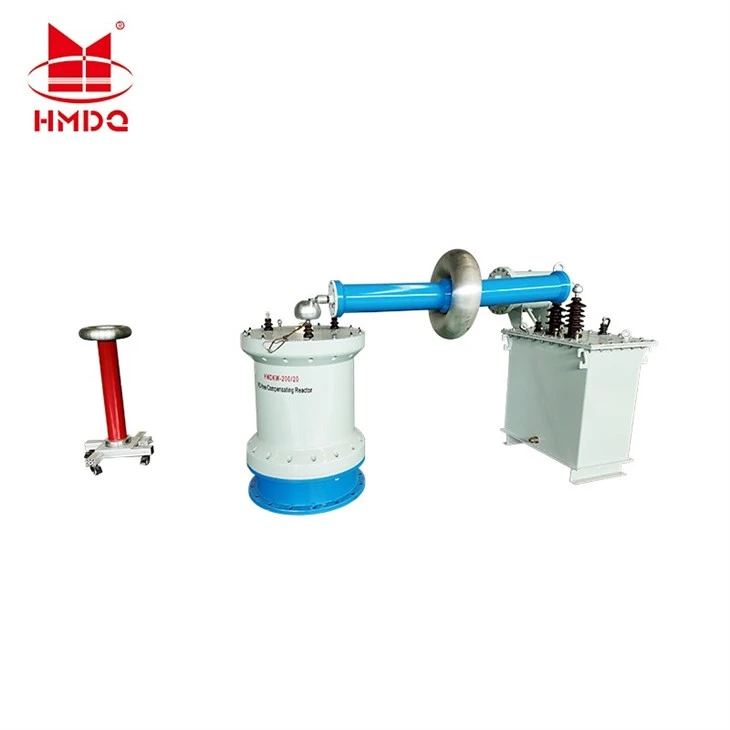

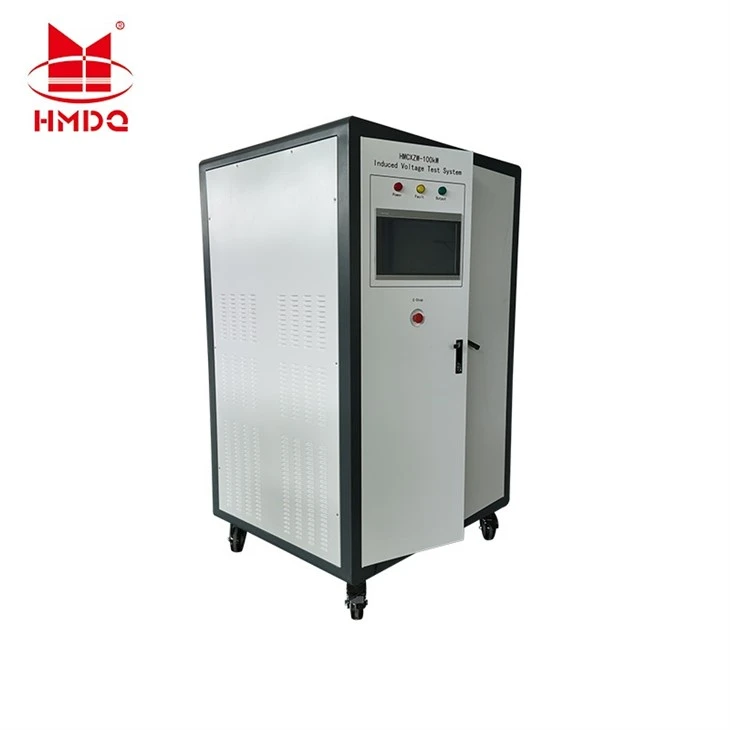

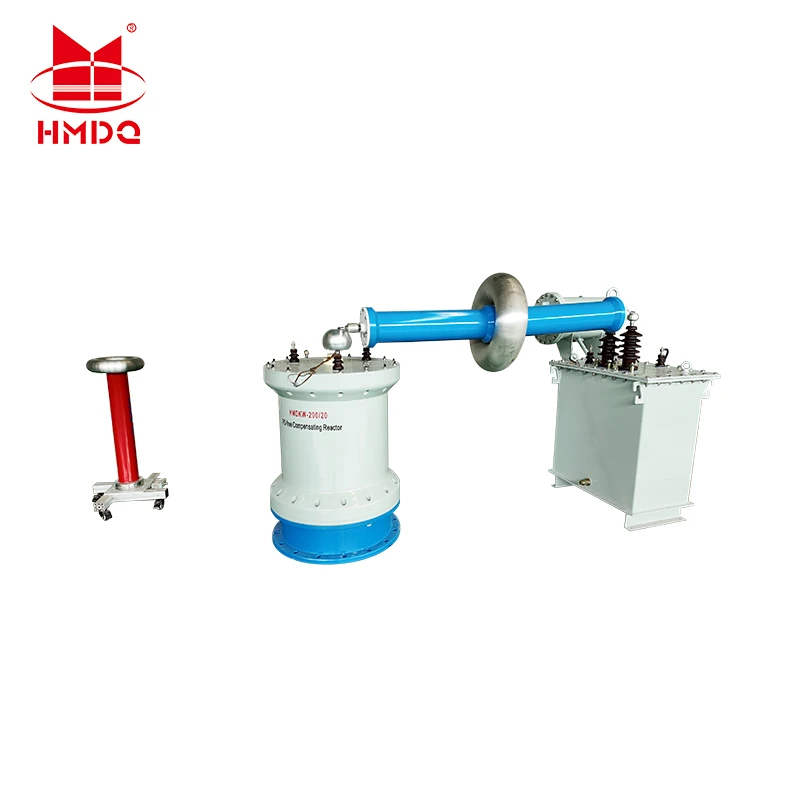

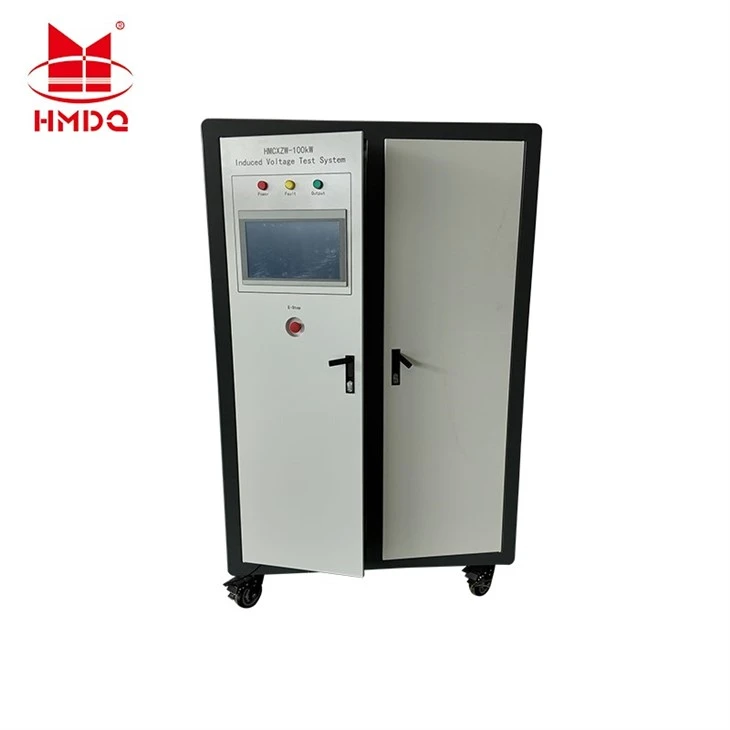

The front panel uses a 15.6 inch color LCD touch screen with dedicated windows for frequency, current, voltage, power, power factor, running time and protection thresholds. Operation is by direct touch entry plus start / stop / input close / output close buttons, and unit parameters are retained after power off.
Products Features
-
High frequency SPWM hardware regulation - fast response and stable output; high power MOS / IGBT drive with high overload capacity.
PD ≤10 pC - low background discharge lets you measure low level PD in the test object instead of the power source.
0.1 Hz frequency resolution - precise setting anywhere in the 45-300 Hz band, ideal for induced voltage tests above rated frequency.
Low distortion sine output - THD ≤2% at full scale on resistive load.
Handles mixed loads - resistive, inductive and rectifier loads, with inductance compensation available through external reactors.
Complete protection - overcurrent, short circuit, overload and overtemperature protection with audible and visual alarm plus fault code display.
15.6 inch color LCD touch screen - large viewing angle, readable on a production line, parameter memory and shortcut key operation.
Modbus TCP over RJ45 - remote control and data acquisition ready.
Efficiency ≥85% and reinforced insulation (AC 1500 V / 1 min, ≥20 MΩ).
Products Parameters
| Model | HMCXZW-100kW |
| Capacity | 100 kVA |
| Input phase | 3-phase 3-wire + protective earth |
| Input voltage | 380 V ±10% |
| Input frequency | 50 / 60 Hz ±5 Hz |
| Output phase | Single-phase 2-wire + protective earth |
| Output voltage | 0-800.0 V |
| Output current | 0-125 A |
| Frequency range | 45.0-300.0 Hz |
| Frequency adjustment step | 0.1 Hz |
| Voltage stability | ≤±1% |
| Frequency stability | ≤±0.1% |
| Source voltage effect | ≤±0.5% FS |
| Load stability | ≤±0.5% FS |
| Load effect | ≤±1% |
| Total harmonic distortion | ≤2% (resistive load, full scale) |
| Waveform | Sine wave |
| Partial discharge magnitude | ≤10 pC |
| Efficiency | ≥85% |
| Display | 15.6 inch color LCD touch screen |
| Voltage display accuracy | Resolution 0.1 V; ±0.5% reading ±0.2% FS |
| Frequency display accuracy | Resolution 0.1 Hz; ±0.02% reading |
| Current display accuracy | Resolution 0.1 A; ±0.5% reading ±0.5% FS |
| Power display accuracy | Resolution 0.1 kW; ±0.5% reading ±0.5% FS |
| Protection functions | Overcurrent, short circuit, overload, overtemperature |
| Communication interface | RJ45, Modbus TCP |
| Dielectric strength | Between input / output and chassis: AC 1500 V / 1 min, leakage current <20 mA |
| Insulation resistance | ≥20 MΩ at DC 500 V |
| Operating temperature | -20 to 45 °C |
| Operating humidity | 10-90% RH, non-condensing at 25 °C |
| Altitude | ≤2000 m |
| Dimensions (W x H x D) | 1200 x 1910 x 1000 mm (including casters) |
