How to Choose a Transformer Oil DGA Analyzer Under $15,000
A budget of US$15,000 can be a reasonable starting point for evaluating a dedicated transformer oil dissolved gas analysis (DGA) instrument. Public listings include systems priced below this threshold, but buyers must verify the full configuration, analytical specifications and delivery scope before deciding whether a system is suitable.
Start With the Required DGA Application
Before requesting quotations, define how the instrument will be used.
| Application | Questions to answer |
|---|---|
| Routine transformer maintenance | Which gases must be measured, and how many samples are processed? |
| Laboratory oil analysis | What extraction method, quality controls and reporting procedures are required? |
| Field testing | Is the instrument suitable for transport, available power supplies and site conditions? |
| Factory acceptance testing | Can the complete method measure the expected gas concentrations and meet the required quality controls? |
A portable instrument is not automatically suitable for every field environment, and a laboratory instrument is not automatically more accurate. Suitability must be established from the specifications and validation data.
Recommended Procurement Configuration
For a purchase under $15,000, request a base configuration that includes the components necessary for your defined analytical method.
| Configuration item | What to confirm |
|---|---|
| Gas chromatograph | Model, column arrangement and operating conditions |
| Detectors | Detector type and gas-specific measurement capability |

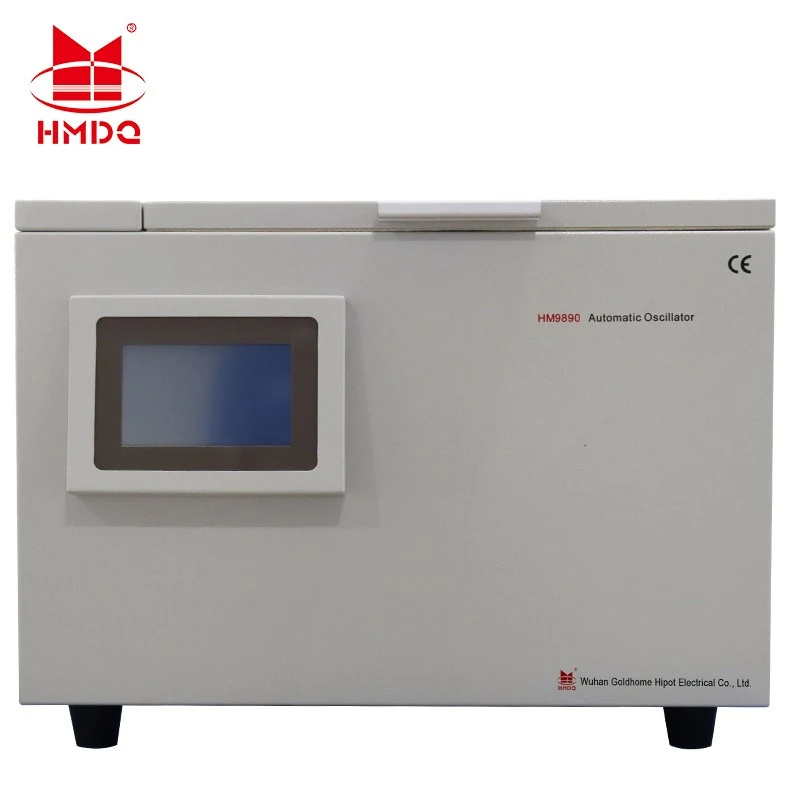

| Gas extraction system | Extraction method and whether it is integrated |
| Carrier and auxiliary gases | Required gas grades, regulators and supply arrangements |
| Calibration | Gas standards, calibration procedure and quality-control materials |
| Software | Concentration calculation, data storage and report export |
| Accessories | Sampling tools, consumables and required connection fittings |
| Documentation | Operating manual, technical specifications and maintenance instructions |
| Support | Warranty, remote assistance, training and spare-parts availability |
This is a procurement checklist, not a claim that every component is included in a standard supplier package.
How to Allocate the Budget
Avoid assigning fixed dollar amounts to individual components before obtaining quotations. Public listings rarely provide enough consistent detail to establish a reliable component-by-component price breakdown.
Instead, compare two or three itemized quotations against the same requirements. Separate the base instrument price from optional accessories, installation, training, shipping, import charges and recurring consumables.
Keep a contingency for items that are essential to operation but excluded from the quoted instrument price.
Specifications to Verify Before Buying
Gas coverage
Identify the gases required by your DGA method. The ASTM D3612 scope includes gases such as hydrogen, oxygen, nitrogen, carbon monoxide, carbon dioxide, methane, ethane, ethylene and acetylene, among others.
Ask the supplier to provide a gas-by-gas specification rather than relying on a generic statement such as "multi-gas analysis."
Detection limits and measurement range
Check the documented detection limit, quantification capability, linearity and measurement range for each required gas. These values should be supported by test conditions and suitable validation data.
Extraction and calibration
The extraction step affects the quantity of gas delivered to the chromatograph. Ask how the complete system is checked using known gas-in-oil standards or another appropriate quality-control procedure.
Service and consumables
Confirm the availability and cost of carrier gases, calibration gases, columns, seals and other consumables required by the selected configuration.
Standards and Method Selection
IEC 60567:2023 provides guidance on sampling and analyzing free and dissolved gases associated with oil-filled electrical equipment. ASTM D3612-02(2026) describes gas chromatographic methods for dissolved gases in electrical insulating oil.
The purchaser should identify the required standard or procedure before choosing an instrument. Compliance should not be inferred solely from a supplier's product title.
Sources: IEC 60567:2023 and ASTM D3612-02(2026).
Conclusion
For a DGA analyzer under $15,000, prioritize the required gas coverage, complete extraction and analysis process, documented performance and after-sales support. A lower purchase price is useful only when the proposed configuration can perform the intended testing reliably.
